MikroTik RouterBOARD RBLHG-5nD-3, LHG 5 Tripack, 3 pack
MikroTik RouterBOARD RBLHG-5nD-3, LHG 5 Tripack, 3 pack
×
0/0
Special offer
Your price excl. VAT
149.28 EUR
| Recycling fee | 0.20 EUR |
|---|---|
| Your price with RF | 149.48 EUR |
| Your price incl. VAT (21%) | 180.87 EUR |
| blank |
Availability
at our branches
at our branches
Per orig. box:
1x 3pack
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10300259 | |
| Part No. | RBLHG5kit | |
| Warranty | 24 months | |
ETH-SP-G2
9.99 EUR excl. VAT
12.17 EUR incl. VAT
In Stock
QMP-LHG
4.82 EUR excl. VAT
5.83 EUR incl. VAT
In Stock
LHGmount
9.63 EUR excl. VAT
11.65 EUR incl. VAT
In Stock
solidMOUNT
21.38 EUR excl. VAT
25.87 EUR incl. VAT
In Stock
PK35S421V100
12.46 EUR excl. VAT
15.08 EUR incl. VAT
In Stock
CT-290-48-B
6.33 EUR excl. VAT
7.66 EUR incl. VAT
In Stock
OFTP5E24-MSC
130.14 EUR excl. VAT
157.47 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Wireless features
Tx power [dBm]:
25
F/B ratio [dB]:
25
Wireless frequency:
5 GHz
WiFi standards:
802.11n, 802.11a
Transmission speed - 5GHz [Mb/s]:
300
Elevation beam width (-6dB) [°]:
7
Azimuth beam width (-6dB) [°]:
7
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Antenna gain [dBi]:
25
Connectors and Interfaces
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
11 .. 30V DC
Power type:
PoE
PoE type:
PoE-In (only)
Max. power consumption [W]:
6
Physical characteristics
Design:
Outdoor
Operating temperature [°C]:
-40 up to 70
Width [mm]:
391
Height [mm]:
391
Depth [mm]:
222
Hardware
CPU:
AR9344
CPU frequency [MHz]:
600
CPU cores:
1
Internal storage [MB]:
16
RAM [MB]:
64
Software
Operating system:
RouterOS - L3
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description

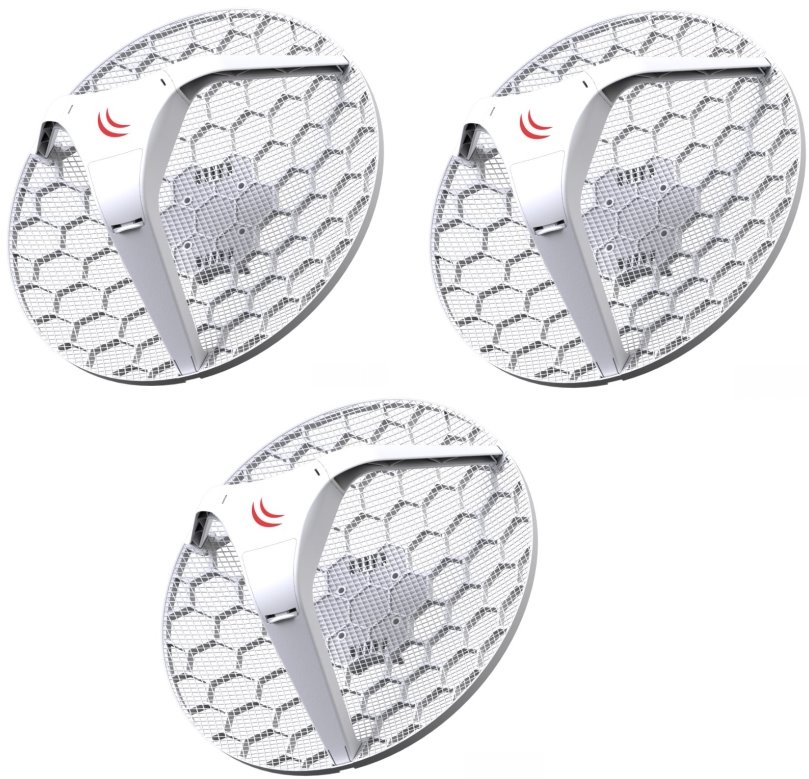

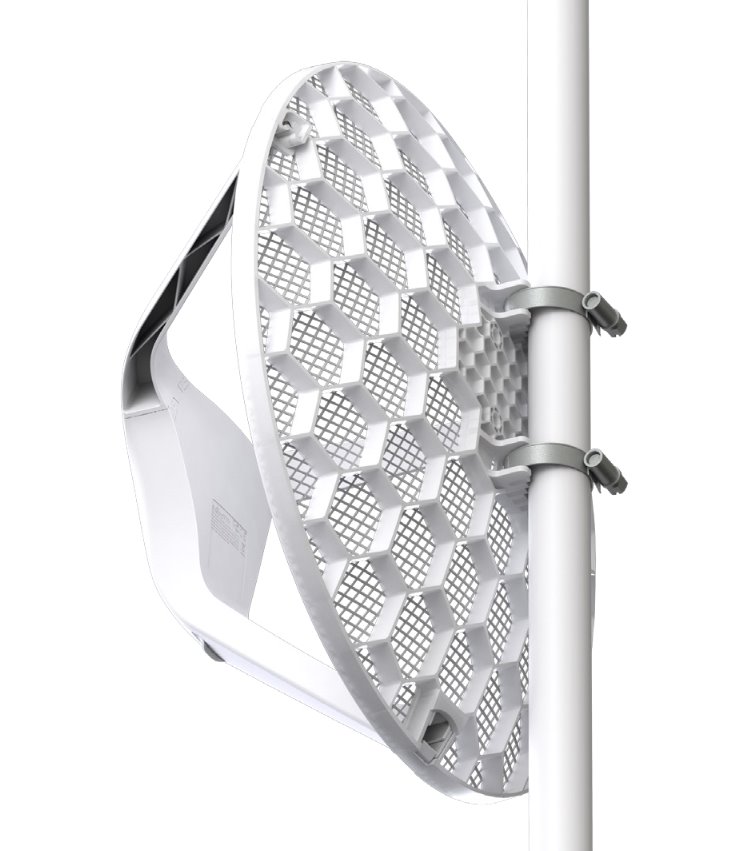

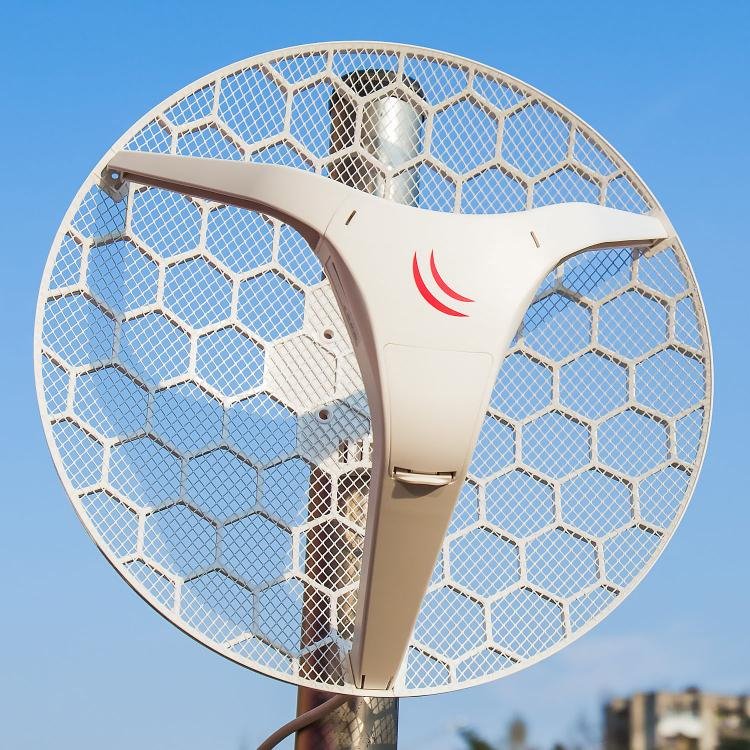

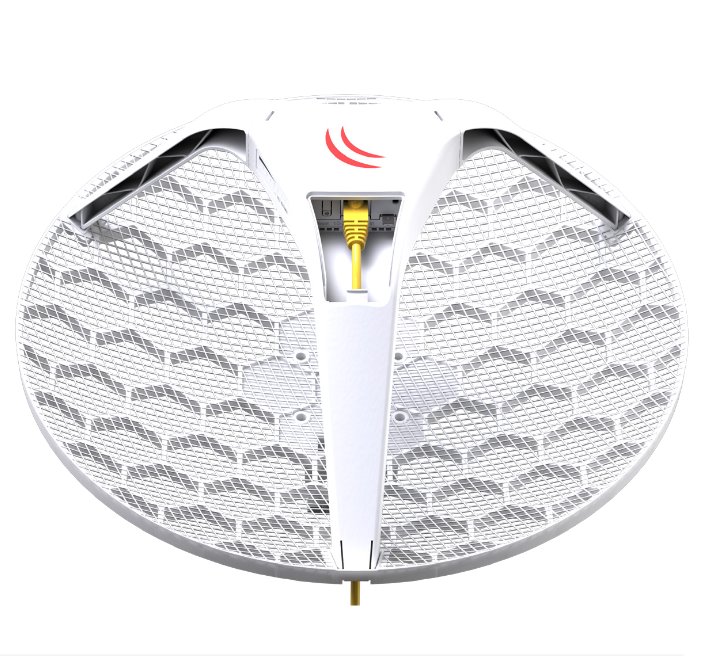

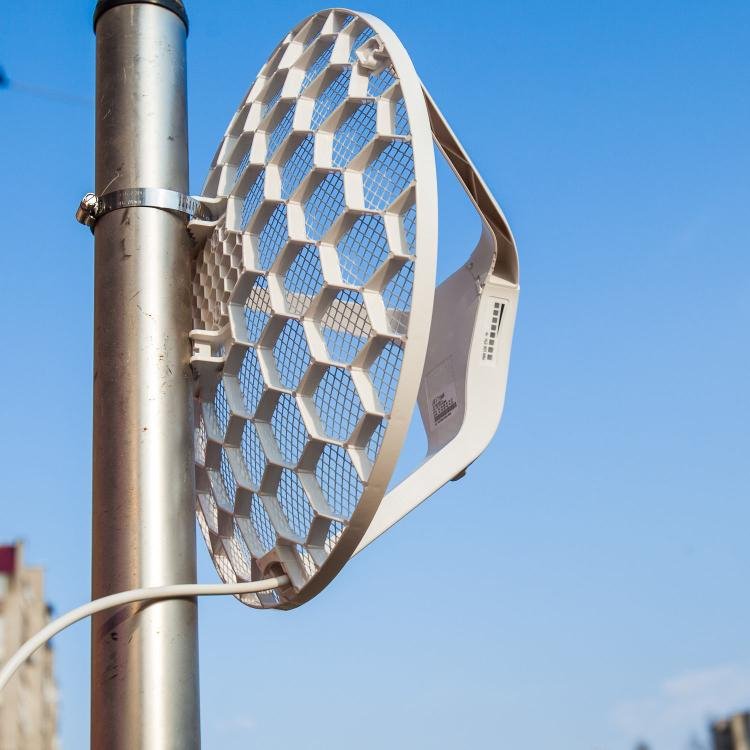

The Light Head Grid (LHG) is a compact and light wireless device with an integrated 24.5 dBi grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances.
The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.
The device comes disassembled for compact shipping, but is very easy to assemble and includes a simple to use grounding attachment point. The package also contains a small adapter for tilting the antenna five degrees from the original position.

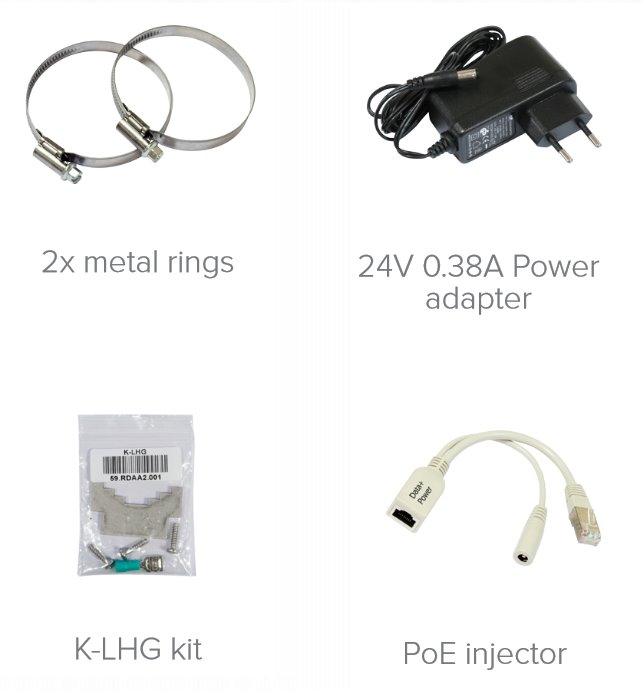

Package contains
Download
CE Datasheet Firmware (RouterOS / SwOS) RouterOS software manualGPSR
