MikroTik RouterBOARD RBcAPGi-5acD2nD-XL, cAP XL ac

MikroTik RouterBOARD RBcAPGi-5acD2nD-XL, cAP XL ac
MikroTik RouterBOARD RBcAPGi-5acD2nD-XL, cAP XL ac
×
0/0
MikroTik RouterBOARD RBcAPGi-5acD2nD-XL, cAP XL ac
MikroTik RouterBOARD RBcAPGi-5acD2nD-XL, cAP XL ac
MikroTik RouterBOARD RBcAPGi-5acD2nD-XL, cAP XL ac
MikroTik RouterBOARD RBcAPGi-5acD2nD-XL, cAP XL ac
MikroTik RouterBOARD RBcAPGi-5acD2nD-XL, cAP XL ac
MikroTik RouterBOARD RBcAPGi-5acD2nD-XL, cAP XL ac
MikroTik RouterBOARD RBcAPGi-5acD2nD-XL, cAP XL ac
MikroTik RouterBOARD RBcAPGi-5acD2nD-XL, cAP XL ac
MikroTik RouterBOARD RBcAPGi-5acD2nD-XL, cAP XL ac
MikroTik RouterBOARD RBcAPGi-5acD2nD-XL, cAP XL ac
MikroTik RouterBOARD RBcAPGi-5acD2nD-XL, cAP XL ac
MikroTik RouterBOARD RBcAPGi-5acD2nD-XL, cAP XL ac

Your price excl. VAT
73.16 EUR
Recycling fee 0.07 EUR
Your price with RF 73.23 EUR
Your price incl. VAT (21%) 88.61 EUR
blank
In Stock
PlzeňIn Stock
Externí sklad EATo order within 48h
Externí sklad EUTo order within 48h
Availability
at our branches
Manufacturer

MikroTik

Code10300677
Part No.RBcAPGi-5acD2nD-XL
Warranty 24 months
  • Related products2
Masterlan patch cable UTP, Cat5e, 1m, yellow
PCU5E-1YW-MS

0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
Masterlan comfort patch cable UTP, Cat5e, 5m, gray
PCU5E-5-MSC

3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Video

Product description

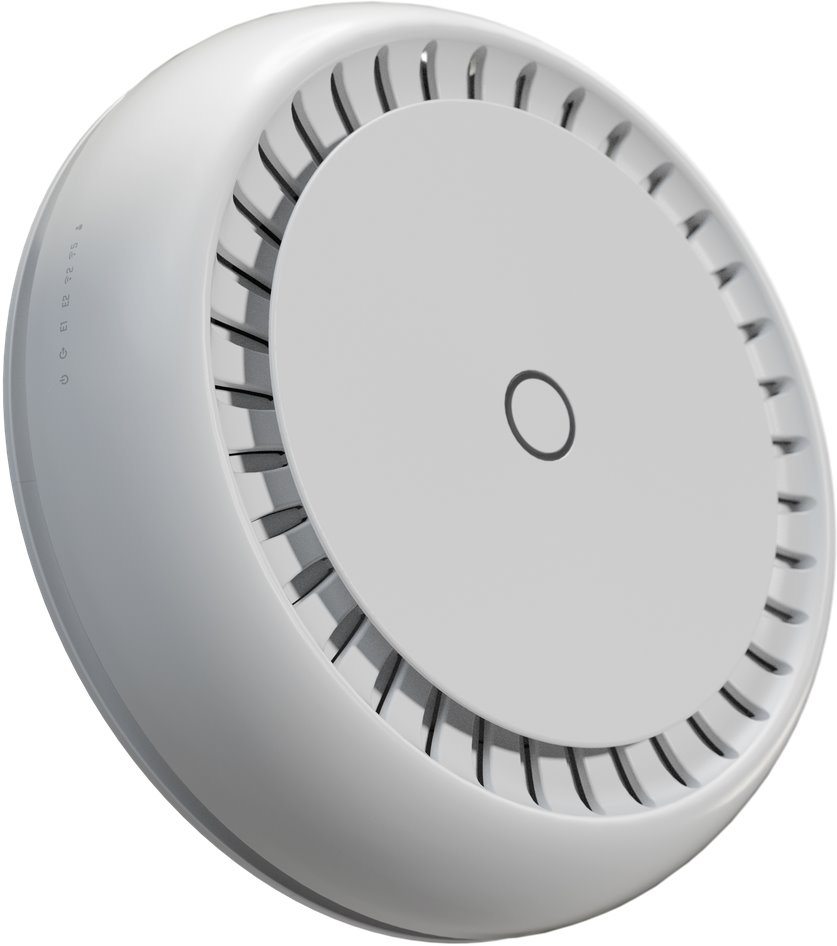

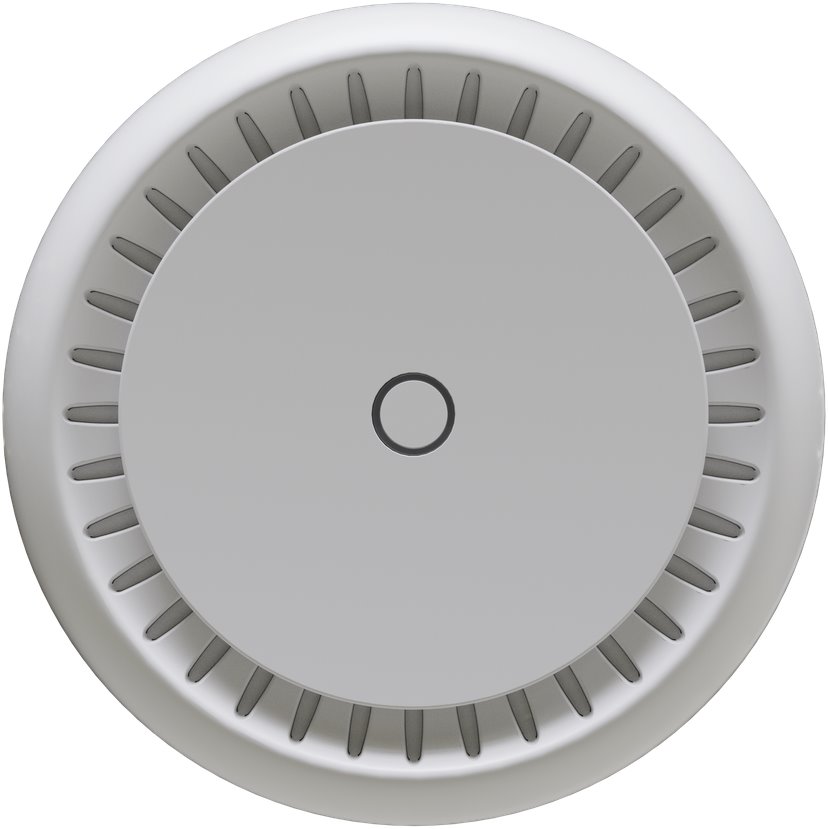

cAP XL ac is a design ceiling extra powerful Access Point from MikroTik with support for WiFi standards 802.11a / b / g / n / ac with modulation speeds 300 Mbps (2.4 GHz) + 866 Mbps (5 GHz). The AP has been designed to blend in with the environment at the installation site. It is ideal for use in operations such as restaurants, hotels, airports, shopping malls, etc. The device can be powered by PoE (passive 18 to 57 V DC or 802.3a / at) and also allows powering other devices via a second port with the same voltage as on the input port and with a maximum consumption of 13 W / port. It is an ideal device for MikroTik CAPsMAN (managed AP system administrator), which allows you to control all AP devices from one central location.

Unlike traditional control software, which requires a separate PC, CAPsMAN runs on an existing RouterBOARD device in your network!

RBcAPGi-5acD2nD-XL

Key Features

  • Dual Band WiFi - 300 Mbps (2.4GHz) + 866 Mbps (5GHz)
  • 802.11a / b / g / n / ac support
  • High antenna gain - 6 dBi

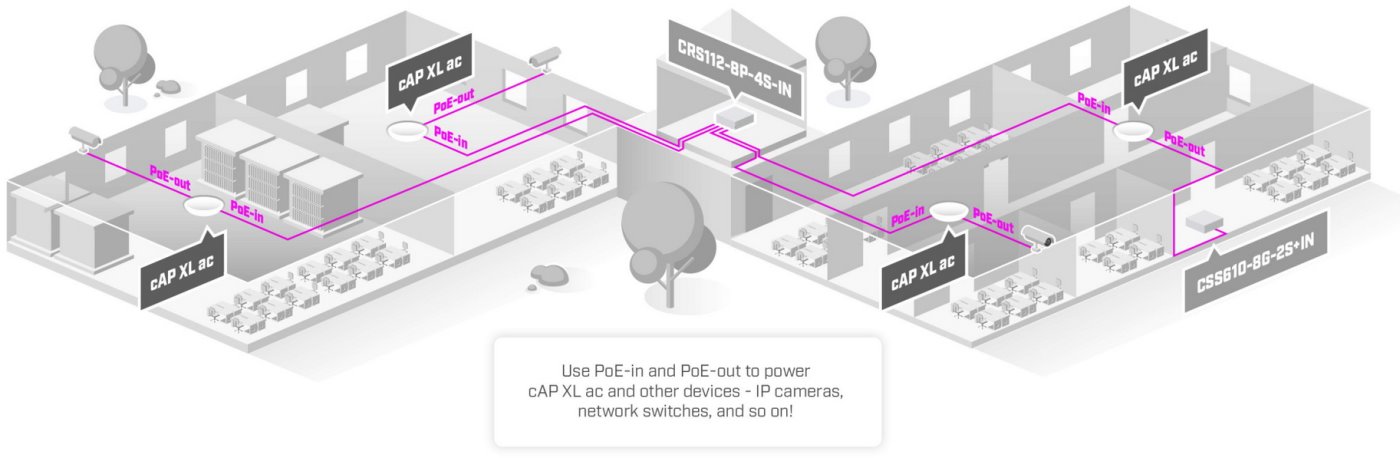

  • 2x Gigabit Ethernet with PoE IN and Out support
  • 4-core CPU, 710 MHz, 128 MB RAM
  • Power over PoE 18 - 57V DC, 802.3af / at
  • RouterOS level 4

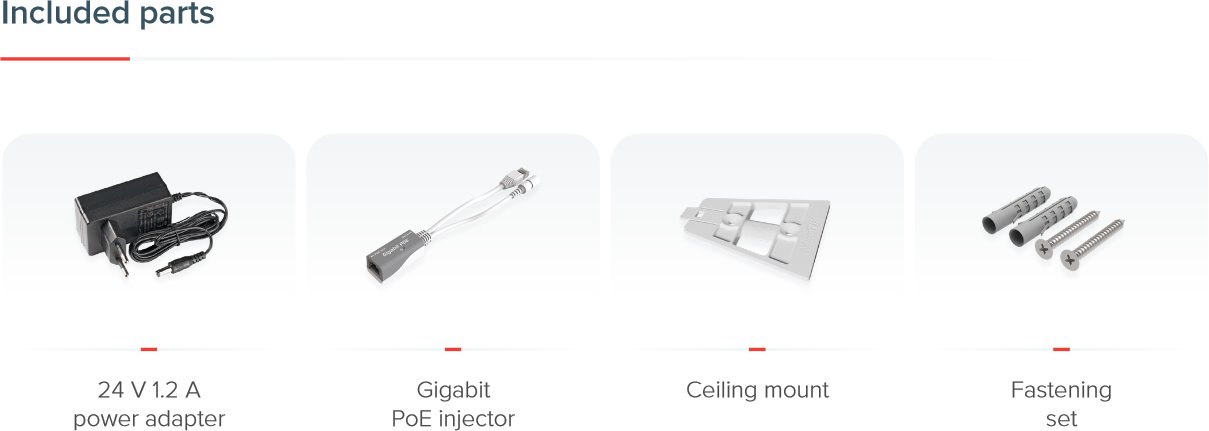

Package Contents

  • Device
  • Power cord
  • 24 V/1.2 A power adapter
  • Gigabit PoE injector
  • Mounting kit for wall or ceiling mounting

Technical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.

Bussines information

Dan Pacanda, +420 377 221 177 , dan.pacanda@discomp.cz

Technical parameters

Wireless features

Tx power [dBm]: 26
Wireless frequency: 2.4 + 5 GHz (dual band)
WiFi standards: 802.11ac, 802.11n, 802.11a, 802.11b/g
Transmission speed - 5GHz [Mb/s]: 866
Transmission speed - 2.4GHz [Mb/s]: 300
Tx power 2.4GHz [dBm]: 26
Tx power 5GHz [dBm]: 26
2.4GHz MIMO: 2 x 2
5GHz MIMO: 2 x 2
Type of antenna: Built-in
Internal antennas: 4
Antenna gain [dBi]: 6

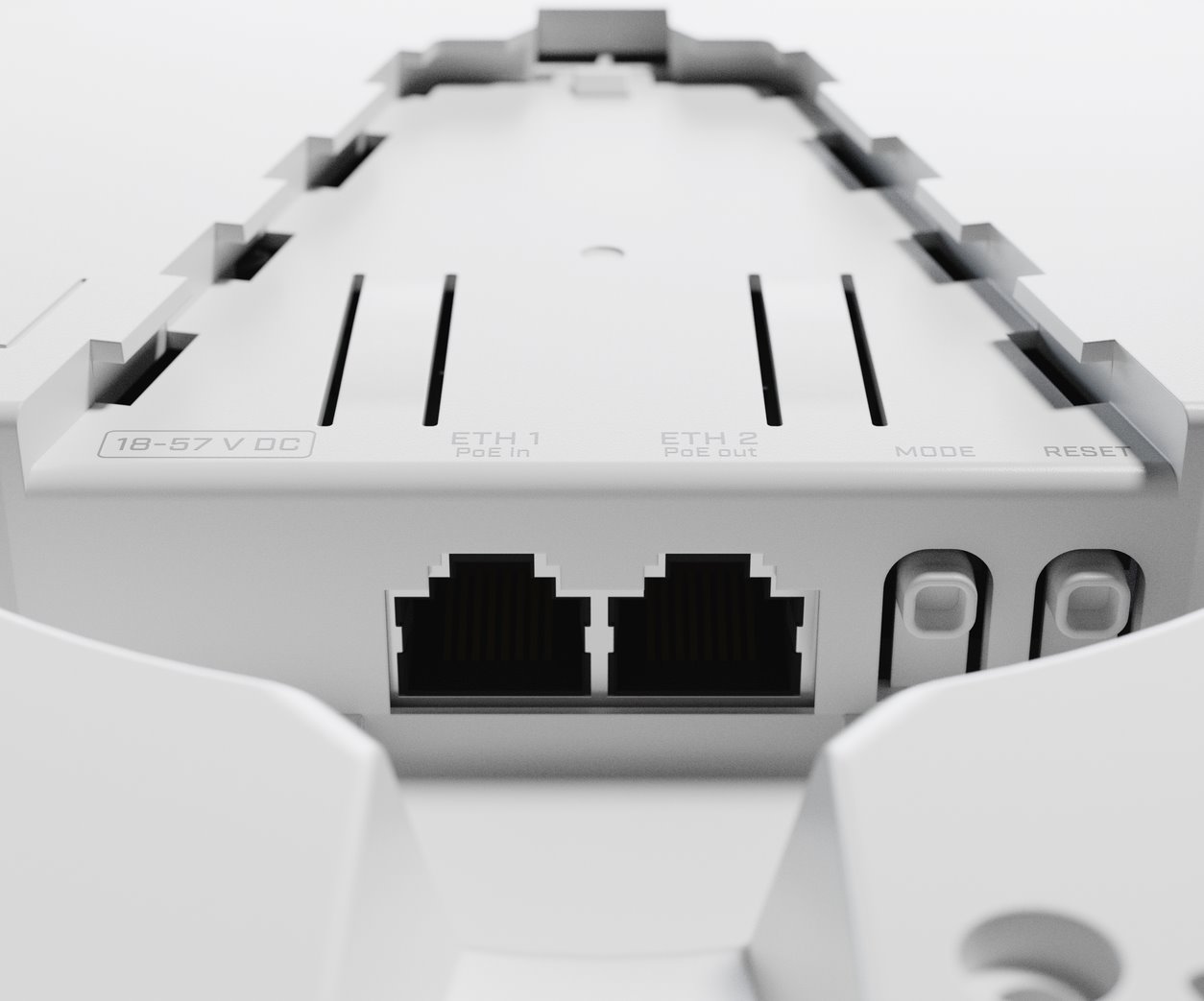

Connectors and Interfaces

LAN speed: (2) 10/100/1000Mbps
Gigabit LAN: Yes

Power

Power over Ethernet: 802.3af, 802.3at, 17 .. 57V DC
PoE type: PoE-Out + PoE-In
PoE Out ports: 1
Max. power consumption [W]: 11
Power via connector/terminal: 17 .. 57V DC

Physical characteristics

Design: On the wall, Ceiling
Purpose: Indoor
Operating temperature [°C]: -40 up to 70
Width [mm]: 191
Height [mm]: 42
Depth [mm]: 191

Hardware

CPU: IPQ-4018
CPU frequency [MHz]: 710
CPU cores: 4
RAM [MB]: 128

Software

Operating system: RouterOS - L4
IPv6 support: Yes
Default IP address: 192.168.88.1
Default login and password: admin / -
