MikroTik RouterBOARD RB912R-2nD-LTm&EC200A-EU
MikroTik RouterBOARD RB912R-2nD-LTm&EC200A-EU
×
0/0
Your price excl. VAT
74.80 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 74.87 EUR |
| Your price incl. VAT (21%) | 90.59 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10904300 | |
| Part No. | RB912R-2nD-LTm&EC200A-EU | |
| Warranty | 24 months | |
ACGPSA
5.33 EUR excl. VAT
6.69 EUR incl. VAT
In Stock
PK35S421V100
12.46 EUR excl. VAT
15.08 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Wireless features
Sensitivity [dBm]:
-100
Wireless frequency:
2.4 GHz
WiFi standards:
802.11n, 802.11b/g
Transmission speed - 2.4GHz [Mb/s]:
300
Tx power 2.4GHz [dBm]:
25
2.4GHz MIMO:
2 x 2
Type of antenna:
Built-in
Connectors and Interfaces
LAN speed:
(1) 10/100Mbps
Serial port:
RS-232
MiniPCI-e slots:
1
SIM slot:
Yes
SIM slots quantity:
2
GPS modul:
Yes
Power
Power over Ethernet:
802.3af, 802.3at, 10 .. 57V DC
Power type:
PoE, DC connector
Max. power consumption [W]:
7
Power via connector/terminal:
5V DC, 8 .. 30V DC
Physical characteristics
Protection class:
IP54
Purpose:
For cars
Buttons:
Reset, mode
Operating temperature [°C]:
-40 up to 70
Width [mm]:
139
Height [mm]:
29
Depth [mm]:
77
Hardware
CPU:
QCA9531
CPU frequency [MHz]:
650
Internal storage [MB]:
16
RAM [MB]:
64
Software
Operating system:
RouterOS v7 - L4
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description

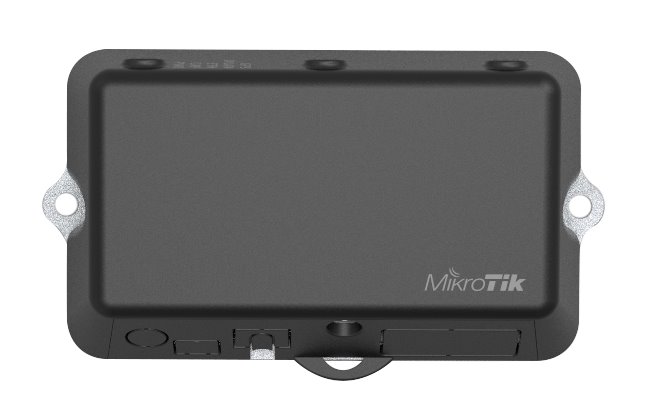

LtAP Mini LTE kit is a compact and rugged wireless access point designed to keep your vehicle connected wherever you go. Whether you’re riding through the Great Outdoors or navigating busy urban streets, this tiny device ensures you’re always online and ready to upload location data.
LtAP mini has a special extra-durable enclosure with a wall mounting kit, two SIM slots to alternate between cellular providers, and integrated GPS support, making this a perfect device for tracking moving vehicles like cars, buses or trains.
There’s an Ethernet port for your wired devices and a classic 2.4 GHz wireless radio. The RS232 serial port gives you console access for debugging.
The power options are as flexible as they get. You have the classic DC jack, passive PoE-in, and a microUSB option. We have even seen users powering the LtAP mini with a portable power bank throughout the day!
The new LTE card offers a better price and the support of the most popular LTE bands, including the B28 band! It is connected to two internal antennas with u.FL connectors, so you can unplug the connectors and add your own external LTE antenna for even better coverage.
Mikrotik have provided a simple tracking application example in the RouterOS documentation - to help you start tracking your vehicle’s location in real-time. You will need to connect an external GPS antenna, we recommend using the ACGPSA antenna with IP67 water resistance rating.
Package content
Download
Datasheet DoC Firmware (RouterOS / SwOS)GPSR
