MikroTik RouterBOARD cAPGi-5HaxD2HaxD, cAP ax
Your price excl. VAT
96.18 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 96.25 EUR |
| Your price incl. VAT (21%) | 116.46 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10300727 | |
| Part No. | cAPGi-5HaxD2HaxD | |
| Warranty | 24 months | |
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
Video
GPSR
Technical parameters
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11ax, 802.11ac, 802.11n, 802.11a, 802.11b/g
Transmission speed - 5GHz [Mb/s]:
1201
Transmission speed - 2.4GHz [Mb/s]:
574
Security:
WPA, WPA2, WPA3, OWE
2.4GHz MIMO:
2 x 2
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Internal antennas:
4
Antenna gain [dBi]:
5,5
Connectors and Interfaces
LAN speed:
(2) 10/100/1000Mbps
Gigabit LAN:
Yes
Power
Power over Ethernet:
802.3af, 802.3at, 18 .. 57V DC
Power type:
PoE, DC connector
PoE type:
PoE-Out + PoE-In
PoE Out ports:
1
Max. power consumption [W]:
28
Power via connector/terminal:
18 .. 57V DC
Physical characteristics
Design:
On the wall, Ceiling
Purpose:
Indoor
Buttons:
Reset
Operating temperature [°C]:
-40 up to 70
Width [mm]:
228
Height [mm]:
48
Depth [mm]:
228
Hardware
CPU:
IPQ-6010
CPU cores:
4
Internal storage [MB]:
128
RAM [MB]:
1024
Software
Operating system:
RouterOS - L4
Default IP address:
192.168.88.1
Default login and password:
admin / -
Video
Product description

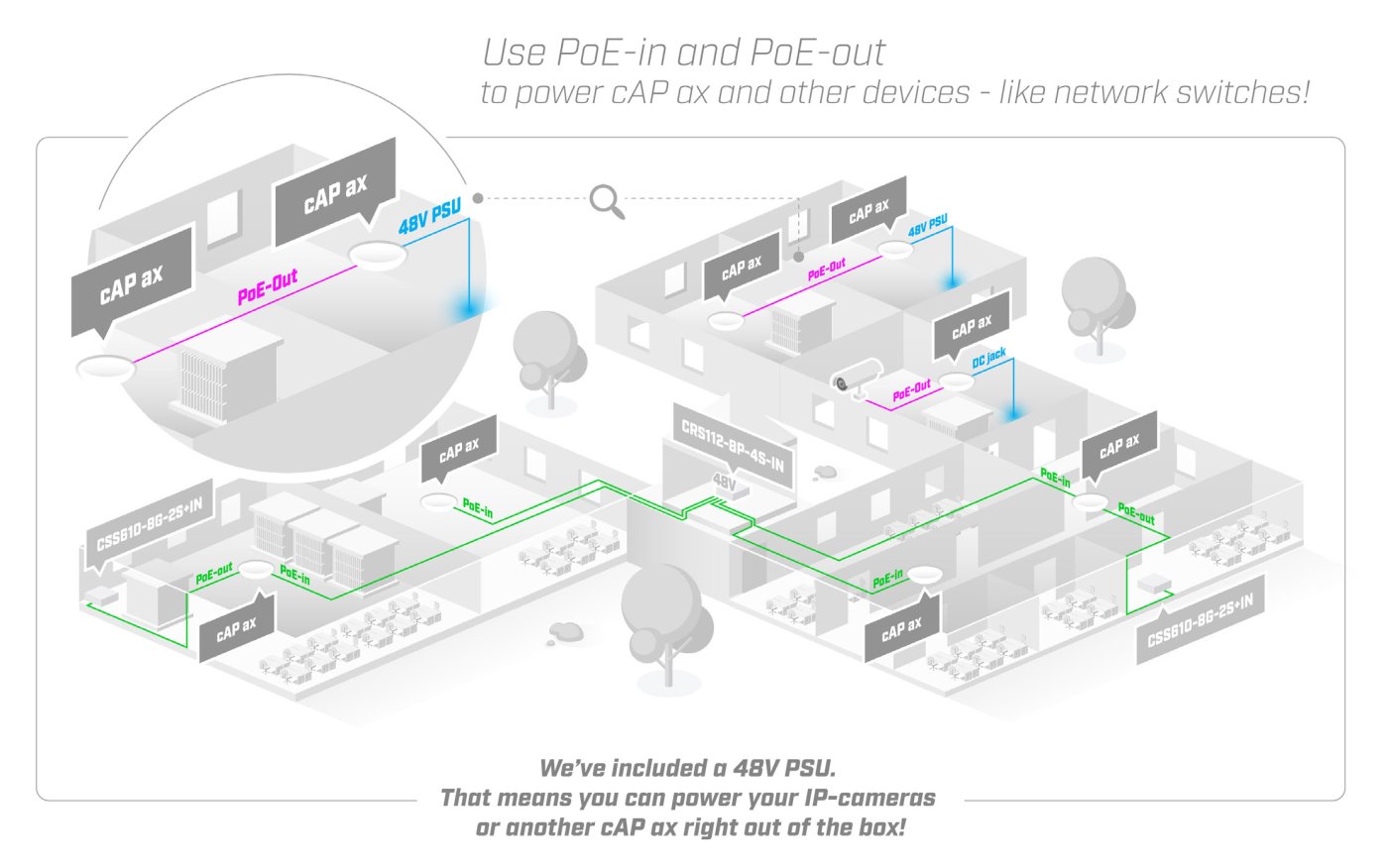

cAP ax is a design ceiling access point from MikroTik with support for the latest 802.11ax WiFi standard including older 802.11a/b/g/n/ac with transmission speeds 576 Mbps (2.4 GHz) + 1201 Mbps (5 GHz). The AP has been designed to blend in with the environment at the installation site as much as possible. It is ideal for use in establishments such as restaurants, hotels, airports, shopping centers, etc. The device offers 2 Gigabit LAN ports, enables power supply using a power adapter or PoE (passive 18 up to 57 V DC or 802.3a/at on port no. 1) and also allows powering other devices via the second port with the same voltage as on the input port with a maximum consumption of 9W/port.
Key Features
Package contents
Download
Datasheet Firmware (RouterOS / SwOS)GPSR
