MikroTik RBSEXTANTG-5HPnD, 5GHz Dual Polarity 18dbi Integrated antenna SEXTANT G, RouterOS L3, Gbit POE, PSU, pole mount
We are sorry, this product is no longer in our offer.
MikroTik RBSEXTANTG-5HPnD, 5GHz Dual Polarity 18dbi Integrated antenna SEXTANT G, RouterOS L3, Gbit POE, PSU, pole mount
×
0/0
Sale
ODR-RBSEXTANTG-5HPnD
12.03 EUR excl. VAT
14.56 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.61 EUR excl. VAT
0.74 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.69 EUR excl. VAT
4.46 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Wireless features
Tx power [dBm]:
30
Wireless frequency:
5 GHz
WiFi standards:
802.11n, 802.11a
Transmission speed - 5GHz [Mb/s]:
300
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Antenna gain [dBi]:
18
Connectors and Interfaces
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
USB:
Yes
Power
Power over Ethernet:
8 .. 30V DC
Power type:
PoE
PoE type:
PoE-In (only)
Max. power consumption [W]:
11
Physical characteristics
Design:
Outdoor
Operating temperature [°C]:
-30 up to 70
Width [mm]:
250
Height [mm]:
250
Depth [mm]:
90
Hardware
CPU:
AR9342
CPU frequency [MHz]:
600
CPU cores:
1
Internal storage [MB]:
128
RAM [MB]:
32
Software
Operating system:
RouterOS - L3
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description

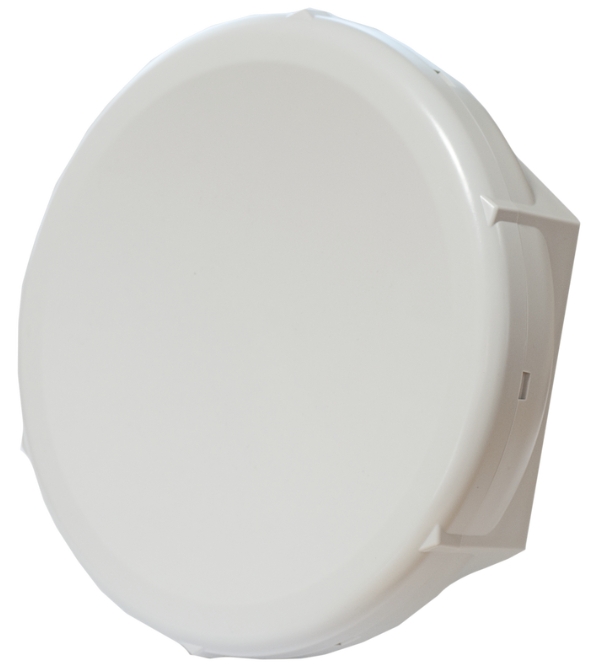

Gigabit version of the popular SEXTANT outdoor unit. Like the previous unit, it uses the TDMA Nv2 system, which allows you to achieve high transfer speeds and maximum stability. A big advantage is the easy installation on a mast and the possibility of PoE power supply. Thanks to the gigabit Ethernet port, you can make full use of the maximum potential that this unit offers. The RouterBOARD RB911G, on which the unit is built, is housed in a high-quality waterproof, UV-resistant box with an integrated dual 5 GHz antenna. The gain of the antenna 18 dBi and a higher power 30dBm enables the connection of clients up to a distance of 2 km. Both the wireless module and the ETH port are equipped with 16 kV surge protection. The delivery includes a quality power supply including PoE.
Download
CE Datasheet Firmware (RouterOS / SwOS) RouterOS software manualGPSR
