MikroTik RBOmniTikPG-5HacD, OmniTIK 5 POE ac
MikroTik RBOmniTikPG-5HacD, OmniTIK 5 POE ac
×
0/0
Your price excl. VAT
105.77 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 105.84 EUR |
| Your price incl. VAT (21%) | 128.07 EUR |
| blank |
Availability
at our branches
at our branches
Per orig. box:
10 pcs.
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10300257 | |
| Part No. | RBOmniTikPG-5HacD | |
| Warranty | 24 months | |
You have a choice of 2 variantscompare all
ETH-SP-G2
9.99 EUR excl. VAT
12.17 EUR incl. VAT
In Stock
PK35S421V100
12.46 EUR excl. VAT
15.08 EUR incl. VAT
In Stock
CT-290-48-B
6.33 EUR excl. VAT
7.66 EUR incl. VAT
In Stock
OFTP5E24-MSC
130.14 EUR excl. VAT
157.47 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Wireless features
Tx power [dBm]:
31
Wireless frequency:
5 GHz
WiFi standards:
802.11ac, 802.11n, 802.11a
Transmission speed - 5GHz [Mb/s]:
866
Azimuth beam width (-6dB) [°]:
360
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Antenna gain [dBi]:
7,5
Connectors and Interfaces
LAN speed:
(5) 10/100/1000Mbps
Gigabit LAN:
Yes
USB:
Yes
Power
Power over Ethernet:
12 .. 57V DC
Power type:
PoE
PoE type:
PoE-Out + PoE-In
PoE Out ports:
4
Max. power consumption [W]:
18
Physical characteristics
Design:
Outdoor
Operating temperature [°C]:
-40 up to 70
Width [mm]:
129
Height [mm]:
416
Depth [mm]:
58
Hardware
CPU:
QCA9557
CPU frequency [MHz]:
720
CPU cores:
1
Internal storage [MB]:
16
RAM [MB]:
128
Software
Operating system:
RouterOS - L4
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description

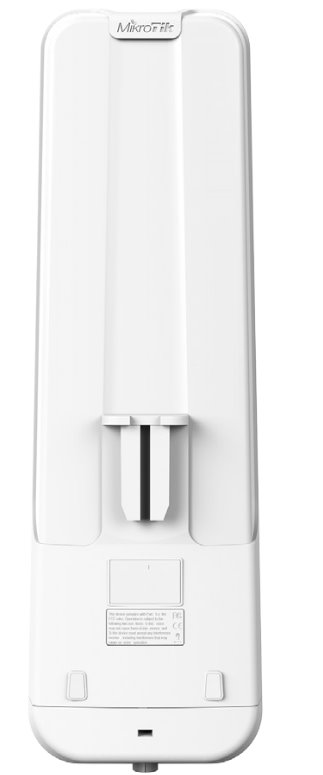

OmniTIK 5 ac is an outdoor access point with two built-in omni-directional 5 GHz antennas with a 7,5dBi gain, 5x Gigabit LAN and one USB port for 3G/4G modem. Omnitik 5 ac supports 802.11a/n/ac wireless standards, transmission power up to 1300mW (31dBm), and modulation speed up to 866Mbps.
OmniTIK 5 ac can be powered only through the first port labeled POE IN and supporting passive PoE 12 to 57V. Omnitik also supports 802.3af/at POE. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power 48V devices (like IP camera), if 48V input is used.
