MikroTik RBLDFR&R11e-LTE6, LDF LTE6 kit
MikroTik RBLDFR&R11e-LTE6, LDF LTE6 kit
×
0/0
Sale
Your price excl. VAT
120.47 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 120.54 EUR |
| Your price incl. VAT (21%) | 145.85 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10300632 | |
| Part No. | RBLDFR&R11e-LTE6 | |
| Warranty | 24 months | |
PK35S421V100
12.36 EUR excl. VAT
14.96 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Wireless features
Wireless frequency:
LTE
Type of antenna:
Built-in
Antenna gain [dBi]:
8
4G/LTE bands support:
(1) 2100 MHz, (2) 1900 MHz, (3) 1800 MHz, (5) 850 MHz, (7) 2600 MHz, (8) 900 MHz, (12) 700 MHz, (17) 700 MHz, (20) 800 MHz, (25) 1900 MHz, (26) 850 MHz, (38) 2600 MHz, (39) 1900 MHz, (40) 2300 MHz, (41n) 2500 MHz
Connectors and Interfaces
SIM slot:
Yes
SIM slots quantity:
1
Power
Power over Ethernet:
10 .. 28V DC
PoE type:
PoE-In (only)
Max. power consumption [W]:
6
Physical characteristics
Protection class:
IP68
Design:
Outdoor
Operating temperature [°C]:
-30 up to 60
Width [mm]:
94
Height [mm]:
94
Depth [mm]:
150
Hardware
CPU:
QCA9531
CPU cores:
1
Internal storage [MB]:
16
RAM [MB]:
64
Software
Operating system:
RouterOS - L3
IPv6 support:
Yes
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description

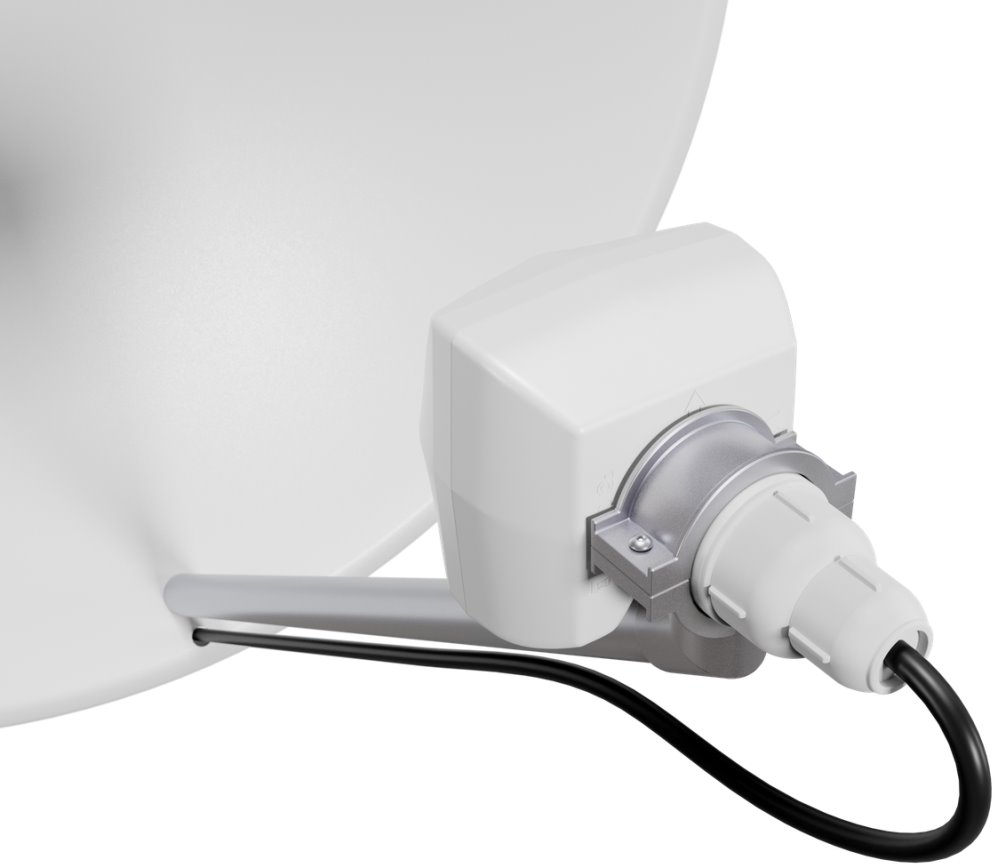

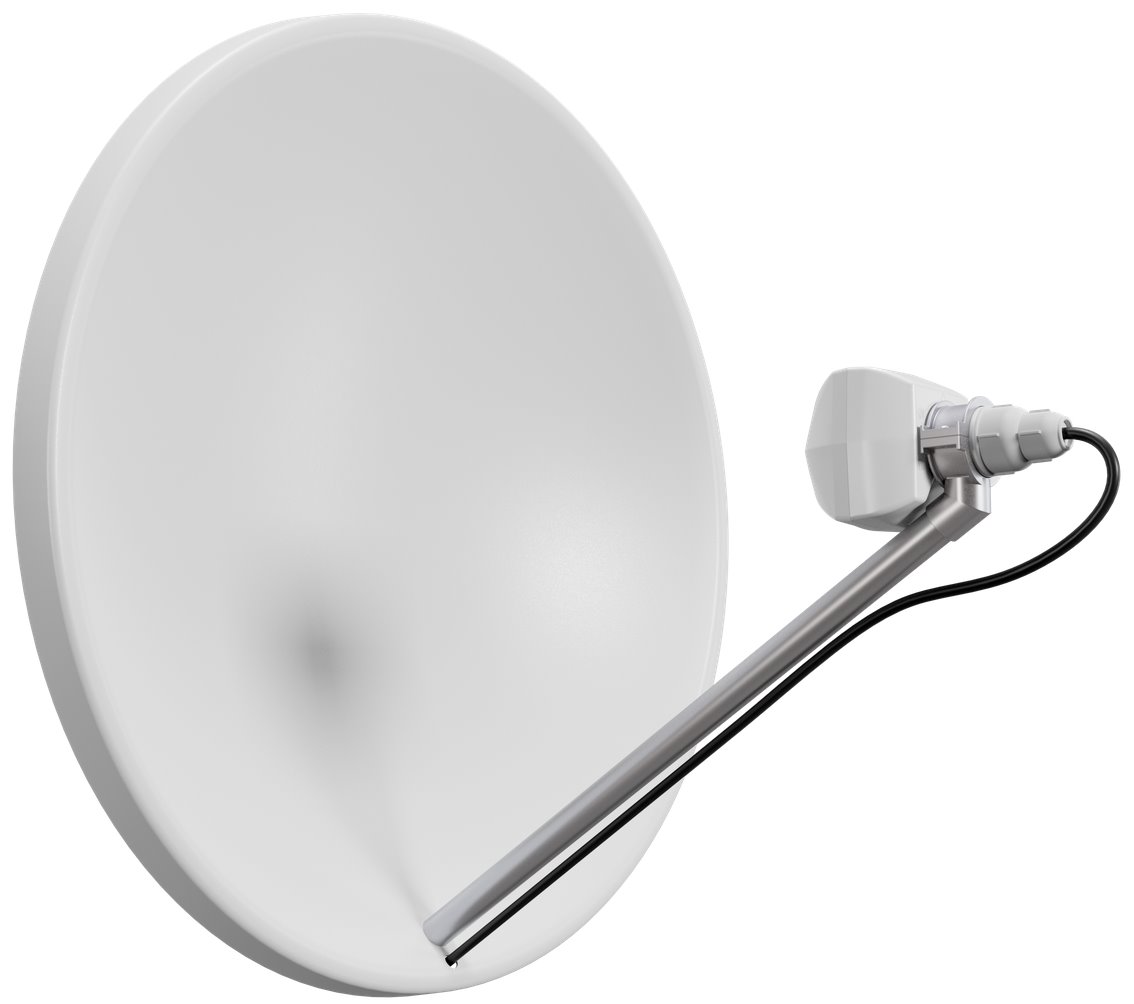

LDF LTE6 kit is a very specific outdoor LTE receiver with IP68 protection and designed for mounting on a satellite dish instead of the original LNB radiator with 40mm mounting. The gain of the whole set can be increased by using a 100cm dish up to 30dBi, the gain of the feed is 8dBi.
Equipment
The LDF LTE6 kit can be used for the LTE6 band with a maximum speed of 300Mbps. The device is equipped with 1x 10/100Mbps LAN, 64MB RAM, 16MB flash and QCA9531 processor. The unit can be used at temperature range in -30 up to 60°C. The unit is powered via passive PoE 10 to 28V DC, which is included in the package.
Package contains
Download
CE Datasheet Firmware (RouterOS / SwOS) Quick GuideTechnical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
