MikroTik RBLDF-5nD, LDF 5, 9dBi 5GHz antenna, 1x LAN, L3
MikroTik RBLDF-5nD, LDF 5, 9dBi 5GHz antenna, 1x LAN, L3
×
0/0
Your price excl. VAT
33.68 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 33.75 EUR |
| Your price incl. VAT (21%) | 40.84 EUR |
| blank |
Availability
at our branches
at our branches
Per orig. box:
20 pcs.
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10300269 | |
| Part No. | RBLDF-5nD | |
| Warranty | 24 months | |
ETH-SP-G2
9.56 EUR excl. VAT
11.65 EUR incl. VAT
In Stock
PK35S421V100
12.36 EUR excl. VAT
14.96 EUR incl. VAT
In Stock
CT-290-48-B
6.28 EUR excl. VAT
7.60 EUR incl. VAT
In Stock
OFTP5E24-MSC
129.08 EUR excl. VAT
156.19 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Wireless features
Tx power [dBm]:
25
Wireless frequency:
5 GHz
WiFi standards:
802.11n, 802.11a
Transmission speed - 5GHz [Mb/s]:
300
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Antenna gain [dBi]:
9
Connectors and Interfaces
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
10 .. 30V DC
Power type:
PoE
PoE type:
PoE-In (only)
Max. power consumption [W]:
6
Physical characteristics
Design:
Outdoor
Operating temperature [°C]:
-40 up to 70
Width [mm]:
84
Height [mm]:
84
Depth [mm]:
115
Hardware
CPU:
AR9344
CPU frequency [MHz]:
600
CPU cores:
1
Internal storage [MB]:
16
RAM [MB]:
64
Software
Operating system:
RouterOS - L3
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description

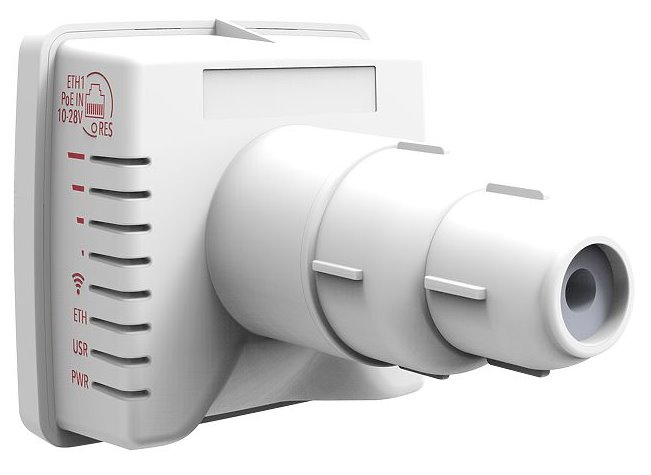

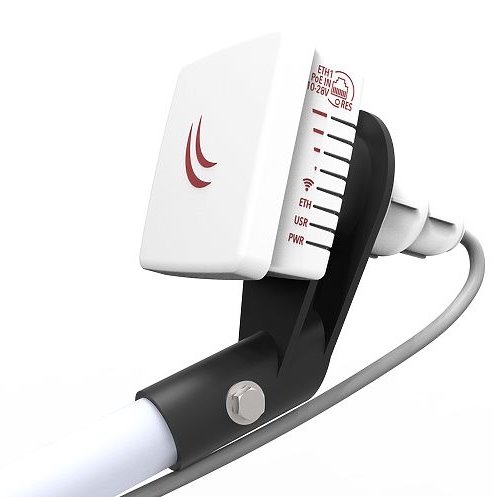

LDF 5 or "Lite dish feed" is a very specific outdoor CPE device with two built-in antennas with 9dBi gain. LDF 5 was designed for mounting on satellite dish antenna instead of the original feed LNB with 40 mm mounting. Antenna gain maybe increased up to 33dBi when will be used with 100cm satellite dish.
LDF 5 unit includes 2x2 MIMO 5GHz radio part with transmission power up to 25dBm, compatibility with protocols 802.11a/n, maximum 300Mbps data rate, 1x 10/100Mbps LAN, 64MB RAM, 16MB flash, 600MHz processor and L3 license.
