MikroTik RBDiscG-5acD, DISC Lite 5 ac
We are sorry, this product is no longer in our offer.
MikroTik RBDiscG-5acD, DISC Lite 5 ac
×
0/0
Sale
PCU5E-1YW-MS
0.61 EUR excl. VAT
0.74 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.69 EUR excl. VAT
4.46 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Wireless features
Tx power [dBm]:
25
F/B ratio [dB]:
30
Cross-Pol Isolation [dB]:
20
Wireless frequency:
5 GHz
WiFi standards:
802.11n, 802.11a, 802.11ac
Transmission speed - 5GHz [Mb/s]:
866
Elevation beam width (-6dB) [°]:
12
Azimuth beam width (-6dB) [°]:
12
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Antenna gain [dBi]:
21
Connectors and Interfaces
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
Power
Power over Ethernet:
10 .. 30V DC
Power type:
PoE
PoE type:
PoE-In (only)
Max. power consumption [W]:
7
Physical characteristics
Design:
Outdoor
Operating temperature [°C]:
-40 up to 70
Width [mm]:
265
Height [mm]:
265
Depth [mm]:
80
Hardware
CPU:
IPQ-4018
CPU frequency [MHz]:
600
CPU cores:
4
Internal storage [MB]:
16
RAM [MB]:
256
Software
Operating system:
RouterOS - L3
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description
The DISC is a low cost high gain 5 GHz CPE. We have improved antenna design, added Gigabit Ethernet port and 802.11a/n/ac support to achieve even more speed on longer distances.
DISC Lite5 ac is equipped with 21 dBi dual chain antenna, 802.11a/n/ac integrated wireless, 716 MHz CPU, 256 MB RAM, 1x Gigabit Ethernet port and RouterOS Level 3 license. The device is also compatible with our SXT mounting systems, including the quickMOUNT pro series.
The RouterOS Level 3 allows to use the DISC Lite5 ac as a CPE or for 5 GHz Point-to-Point links.

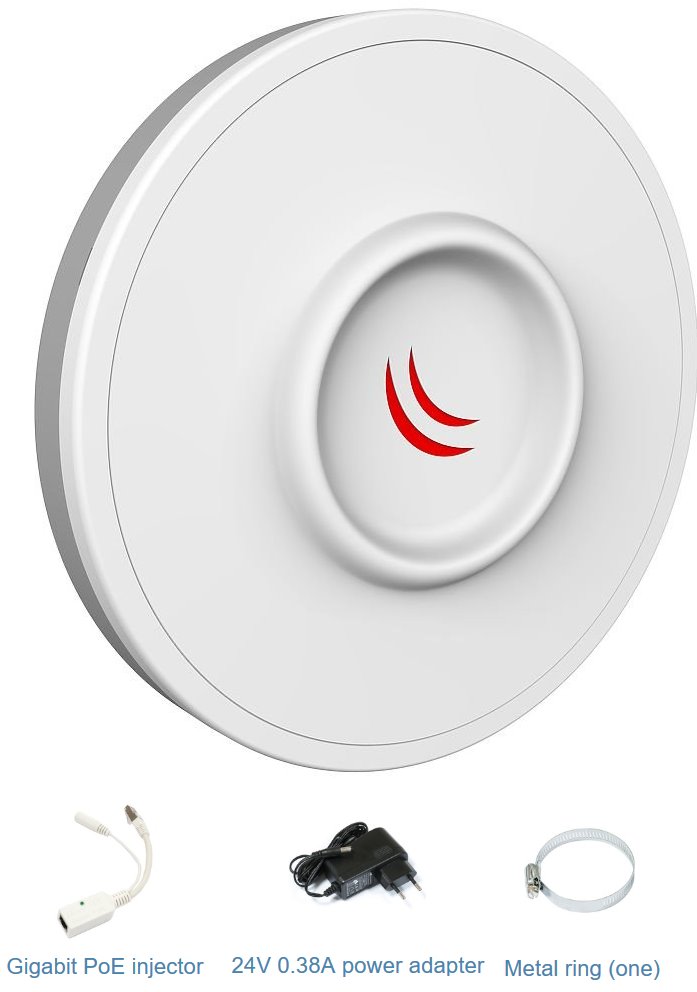

Package contains
Download
CE Datasheet Firmware (RouterOS / SwOS) Quick GuideGPSR
