MikroTik RBDisc-5nD, DISC Lite5
We are sorry, this product is no longer in our offer.
MikroTik RBDisc-5nD, DISC Lite5
×
0/0
Sale
PCU5E-1YW-MS
0.61 EUR excl. VAT
0.74 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.68 EUR excl. VAT
4.45 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Wireless features
Tx power [dBm]:
25
Wireless frequency:
5 GHz
WiFi standards:
802.11n, 802.11a
Transmission speed - 5GHz [Mb/s]:
300
Elevation beam width (-6dB) [°]:
12
Azimuth beam width (-6dB) [°]:
12
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Antenna gain [dBi]:
21
Connectors and Interfaces
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
11 .. 30V DC
Power type:
PoE
PoE type:
PoE-In (only)
Max. power consumption [W]:
6
Physical characteristics
Design:
Outdoor
Operating temperature [°C]:
-40 up to 70
Width [mm]:
265
Height [mm]:
265
Depth [mm]:
80
Hardware
CPU:
AR9344
CPU frequency [MHz]:
600
CPU cores:
1
Internal storage [MB]:
16
RAM [MB]:
64
Software
Operating system:
RouterOS - L3
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description

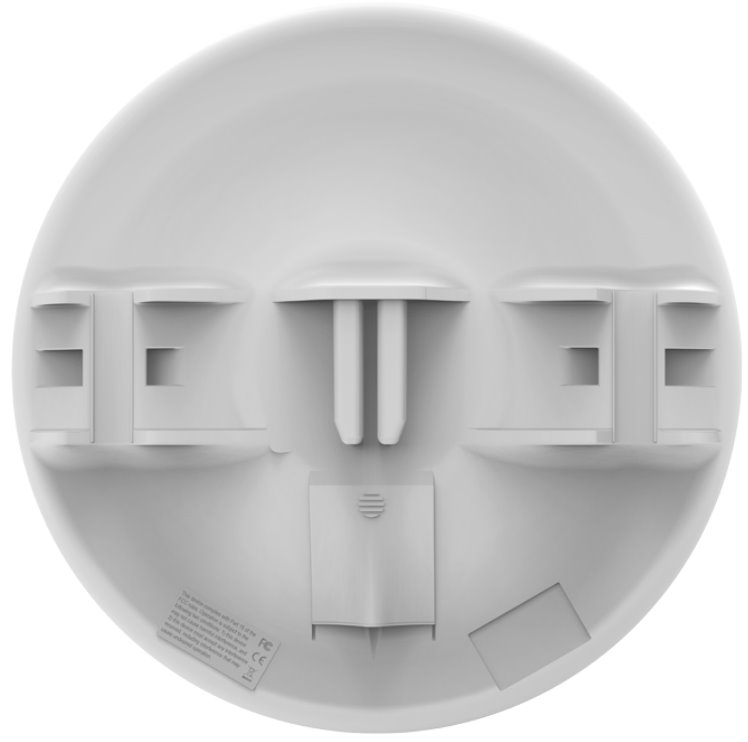

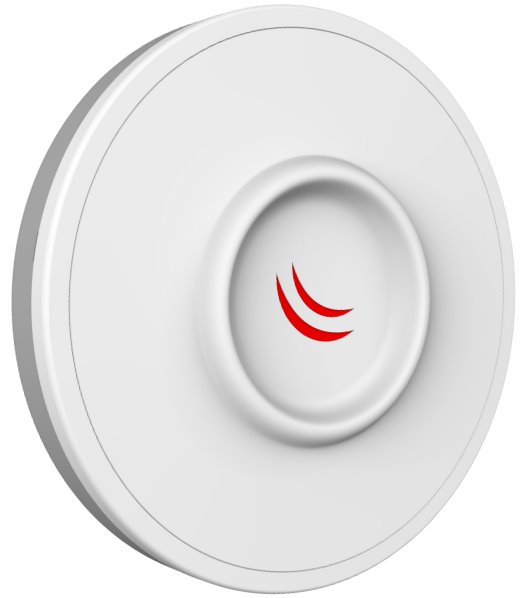

DISC Lite 5 is a compact and lightweight wireless CPE device with integrated 21 dBi antenna. It is ideal for Point-to-point or CPE usage on the middle/long distance.
It’s DISC Lite5, based on popular LHG hardware design. The unit includes 2x2 MIMO 5GHz radio part with transmission power up to 25dBm, compatibility with protocols 802.11a/n, maximum 300Mbps data rate, 64MB RAM, 16MB flash, 600MHz processor and L3 license.
Package contains
Download
CE Datasheet Firmware (RouterOS / SwOS) RouterOS software manualGPSR
