MikroTik RBD53G-5HacD2HnD-TC&EG18-EA, Chateau LTE18 kit
We are sorry, this product is no longer in our offer.
MikroTik RBD53G-5HacD2HnD-TC&EG18-EA, Chateau LTE18 kit
×
0/0
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10300631 | |
| Part No. | RBD53G-5HacD2HnD-TC&EG18-EA | |
You have a choice of 2 variantscompare all
LTE category 18
RBD53G-5HacD2HnD-TC&EG18-EA
184.86 EUR
PCU5E-1YW-MS
0.61 EUR excl. VAT
0.74 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.68 EUR excl. VAT
4.45 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band), LTE
WiFi standards:
802.11ac, 802.11n, 802.11b/g
Transmission speed - 5GHz [Mb/s]:
866
Transmission speed - 2.4GHz [Mb/s]:
300
Tx power 2.4GHz [dBm]:
27
Tx power 5GHz [dBm]:
26
2.4GHz MIMO:
2 x 2
5GHz MIMO:
2 x 2
Type of antenna:
Built-in, Detachable
Internal antennas:
4
Detachable antennas:
2
Antenna gain [dBi]:
2,5
Integrated 4G/LTE radio part:
Yes
4G/LTE bands support:
(1) 2100 MHz, (3) 1800 MHz, (5) 850 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (28) 700 MHz, (38) 2600 MHz, (40) 2300 MHz, (41) 2500 MHz
Connectors and Interfaces
RF connectors:
(2) RSMA female
LAN speed:
(5) 10/100/1000Mbps
Gigabit LAN:
Yes
USB ports 2.0:
1
SIM slot:
Yes
SIM slots quantity:
1
USB:
Yes
Power
Max. power consumption [W]:
23
Power via connector/terminal:
12 .. 28V DC
Physical characteristics
Design:
Desktop
Purpose:
Indoor
Buttons:
Reset, mode
Operating temperature [°C]:
-40 up to 70
Width [mm]:
240
Height [mm]:
156
Depth [mm]:
44
Hardware
CPU:
IPQ-4019
CPU frequency [MHz]:
716
CPU cores:
4
Internal storage [MB]:
16
RAM [MB]:
256
Software
Operating mode:
AP Router, Access Point, Cellular router
Operating system:
RouterOS - L4
IPv6 support:
Yes
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description

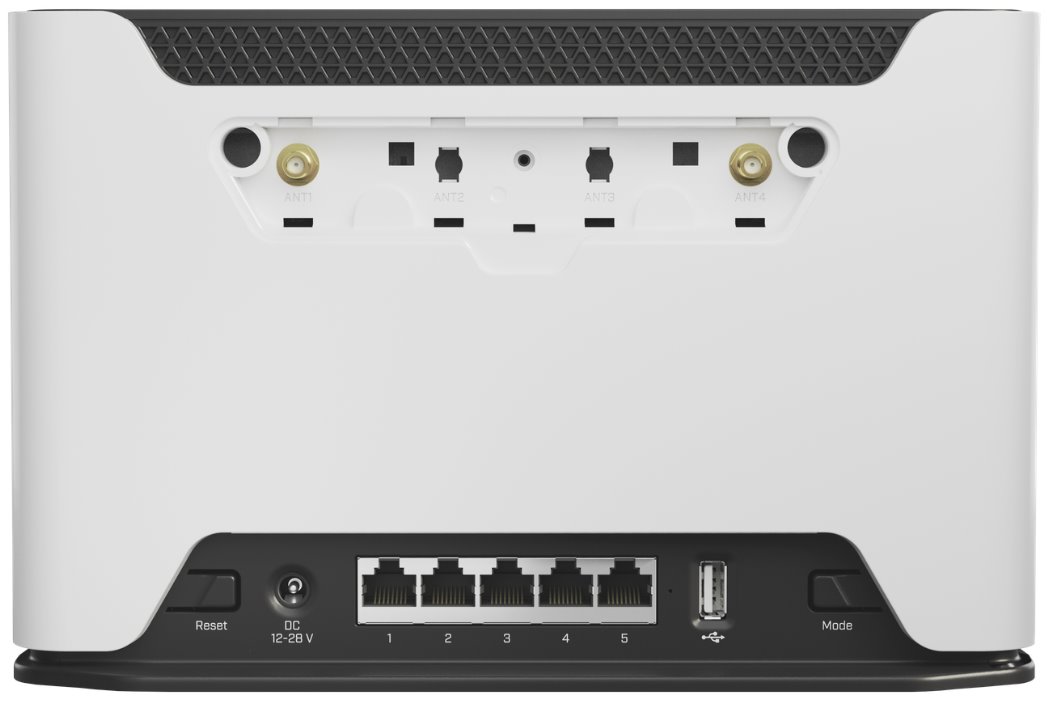

It is a high-speed, dual-band home access point with CAT18 LTE – for really fast Internet anywhere, anytime. But LTE is not the only option – Chateau also features 5 x Gigabit Ethernet ports and a full size USB port.
Strong dual-chain dual-band 2.4/5 GHz wireless for concurrent coverage will solve most interference issues in a crowded environment. For example, a client can simultaneously use the 2.4 GHz channel for all household mobile devices and reserve the 5 GHz channel for tasks that are sensitive to packet loss – such as streaming high-quality videos.
Reach speeds of up to 1200 Mbps with carrier aggregation, as CAT18 allows devices to use 5 bands at the same time. That is a huge advantage when there are a lot of LTE users in the area. Chateau LTE18 provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside.
Package contains
Download
Datasheet Firmware (RouterOS / SwOS) Quick GuideGPSR
