MikroTik RB912UAG-2HPnD-OUT, BaseBox 2
MikroTik RB912UAG-2HPnD-OUT, BaseBox 2
×
0/0
Sale
Your price excl. VAT
68.49 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 68.56 EUR |
| Your price incl. VAT (21%) | 82.96 EUR |
| blank |
Availability
at our branches
at our branches
Per orig. box:
20 pcs.
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10300161 | |
| Part No. | RB912UAG-2HPnD-OUT | |
| Warranty | 24 months | |
You have a choice of 2 variantscompare all
2GHz
RB912UAG-2HPnD-OUT
68.49 EUR
ETH-SP-G2
9.85 EUR excl. VAT
12.00 EUR incl. VAT
In Stock
FL-RM-RM-005
7.32 EUR excl. VAT
8.86 EUR incl. VAT
In Stock
MTAD-5G-30D3-4PA
639.38 EUR excl. VAT
775.56 EUR incl. VAT
In Stock
MTAD-5G-30D3-PA
159.87 EUR excl. VAT
193.93 EUR incl. VAT
In Stock
HGO-antenna-OUT
6.33 EUR excl. VAT
7.90 EUR incl. VAT
In Stock
PK35S421V100
12.38 EUR excl. VAT
14.98 EUR incl. VAT
In Stock
CT-290-48-B
6.29 EUR excl. VAT
7.61 EUR incl. VAT
In Stock
OFTP5E24-MSC
129.26 EUR excl. VAT
156.40 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Wireless features
Tx power [dBm]:
30
Wireless frequency:
2.4 GHz
WiFi standards:
802.11b/g, 802.11n
Transmission speed - 2.4GHz [Mb/s]:
300
2.4GHz MIMO:
2 x 2
Type of antenna:
Detachable
Connectors and Interfaces
RF connectors:
(2) RSMA female
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
USB ports 2.0:
1
MiniPCI-e slots:
1
USB:
Yes
Power
Power over Ethernet:
8 .. 30V DC
Power type:
PoE
PoE type:
PoE-In (only)
Max. power consumption [W]:
14
Physical characteristics
Design:
Outdoor
Width [mm]:
135
Height [mm]:
246
Depth [mm]:
50
Hardware
CPU:
AR9342
CPU frequency [MHz]:
600
CPU cores:
1
Internal storage [MB]:
64
RAM [MB]:
64
Software
Operating system:
RouterOS - L4
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description

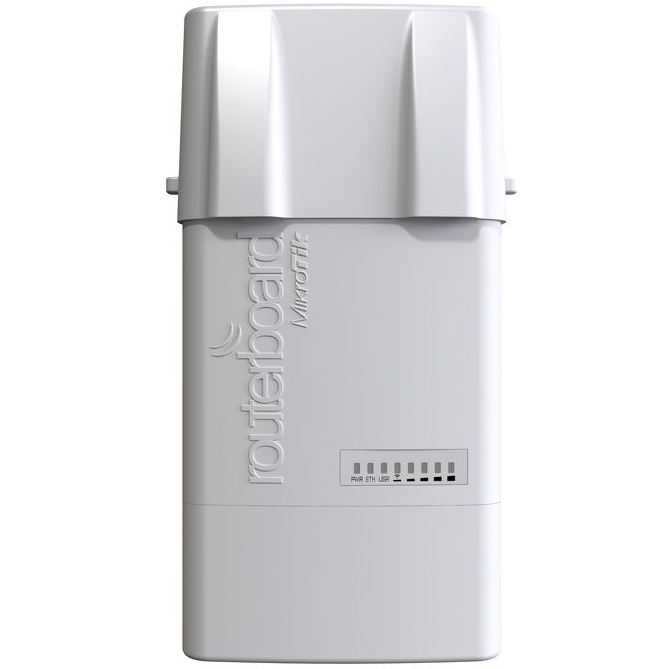

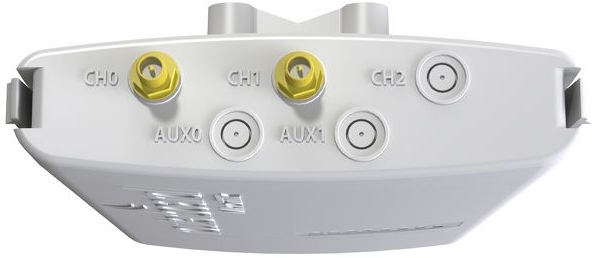

The BaseBox2 in an outdoor 2.4Ghz wireless device, based on our popular RB912 model, fitted with two SMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the BaseBox miniPCIe slot for one more wireless interface to make a dual band device, or a 3G/4G modem.
The case can be opened with one hand, and is protected against the elements. USB, Ethernet and a Grounding wire exits are provided on the bottom, behind a protective door.

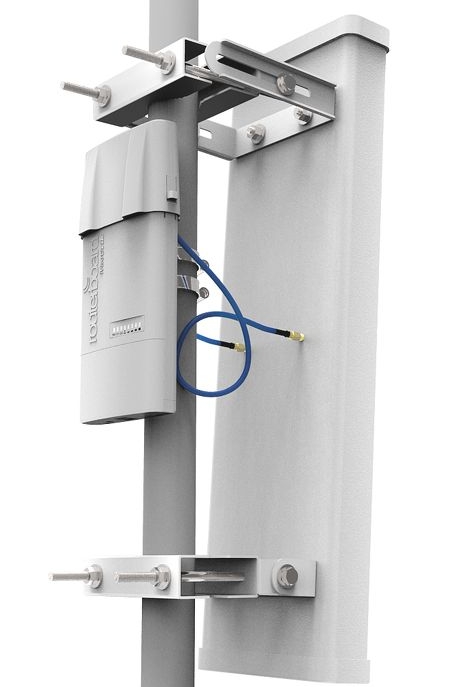

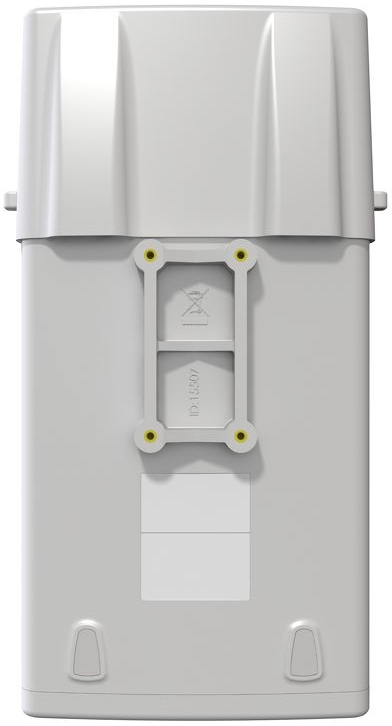

Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. Package also includes a PoE injector and power supply unit.
Download
CE Datasheet Firmware (RouterOS / SwOS) Quick Guide RouterOS software manualTechnical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
