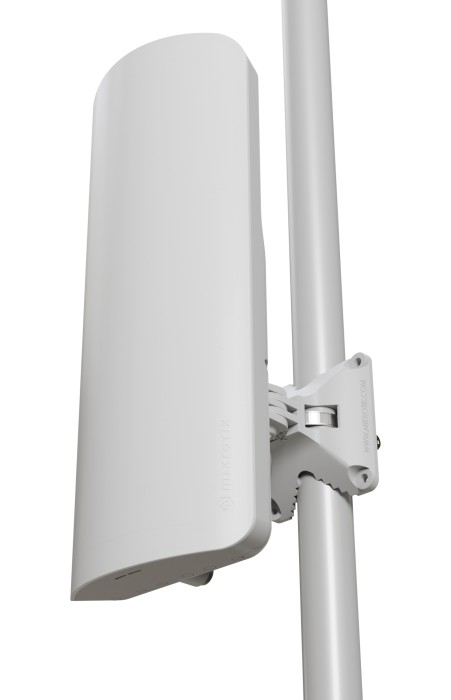

MikroTik mANTBox ax 15s

MikroTik mANTBox ax 15s
MikroTik mANTBox ax 15s
×
0/0
MikroTik mANTBox ax 15s
MikroTik mANTBox ax 15s
MikroTik mANTBox ax 15s
MikroTik mANTBox ax 15s
MikroTik mANTBox ax 15s
MikroTik mANTBox ax 15s
MikroTik mANTBox ax 15s
MikroTik mANTBox ax 15s

Your price excl. VAT
129.67 EUR
Recycling fee 0.07 EUR
Your price with RF 129.74 EUR
Your price incl. VAT (21%) 156.99 EUR
blank
In Stock
PlzeňIn Stock
Externí sklad EATo order within 48h
Externí sklad EUTo order within 48h
Availability
at our branches
Manufacturer

MikroTik

Code10904165
Part No.L22UGS-5HaxD2HaxD-15S
Warranty 24 months
  • Related products11
MikroTik RouterBOARD RB912R-2nD-LTm, LtAP mini
RB912R-2nD-LTm

70.44 EUR excl. VAT
85.32 EUR incl. VAT
In Stock
Ubiquiti ETH-SP-G2 - Ethernet Surge Protector, max. 10kA
ETH-SP-G2

9.56 EUR excl. VAT
11.65 EUR incl. VAT
In Stock
Antenna holder on mast "L", lenght 35cm, height 20cm, d=42mm + 1x U-Bolt 100mm
PK35S421V100

12.36 EUR excl. VAT
14.96 EUR incl. VAT
In Stock
Cable ties black 29cm, 4,8mm width, 100pcs
CT-290-48-B

6.28 EUR excl. VAT
7.60 EUR incl. VAT
In Stock
Masterlan Comfort FTP outdoor wire cable Cat5e, PE, 24AWG, 305m
OFTP5E24-MSC

129.08 EUR excl. VAT
156.19 EUR incl. VAT
In Stock
MaxLink 1.25G SFP optical module, WDM(BiDi), SM, Tx 1310/Rx1550nm, 20KM, 1x LC connector, DDM
ML-S3155-20

6.24 EUR excl. VAT
7.64 EUR incl. VAT
In Stock
MaxLink 1.25G SFP optical module, SM, 1310nm, 20km, 2x LC connector, DDM
ML-S31D-20

6.52 EUR excl. VAT
7.97 EUR incl. VAT
In Stock
MaxLink SFP 10/100/1000M copper module, RJ-45, 100m, 1Gbps
ML-SFP-RJ45-1G

15.72 EUR excl. VAT
19.11 EUR incl. VAT
In Stock
MaxLink 1.25G SFP optical module, MM, 850nm, 550m, 2x LC connector, DDM
ML-S85D-05

6.52 EUR excl. VAT
7.97 EUR incl. VAT
In Stock
Masterlan patch cable UTP, Cat5e, 1m, yellow
PCU5E-1YW-MS

0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
Masterlan comfort patch cable UTP, Cat5e, 5m, gray
PCU5E-5-MSC

3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
show moreshow less 6
Parameters
Download

Product description

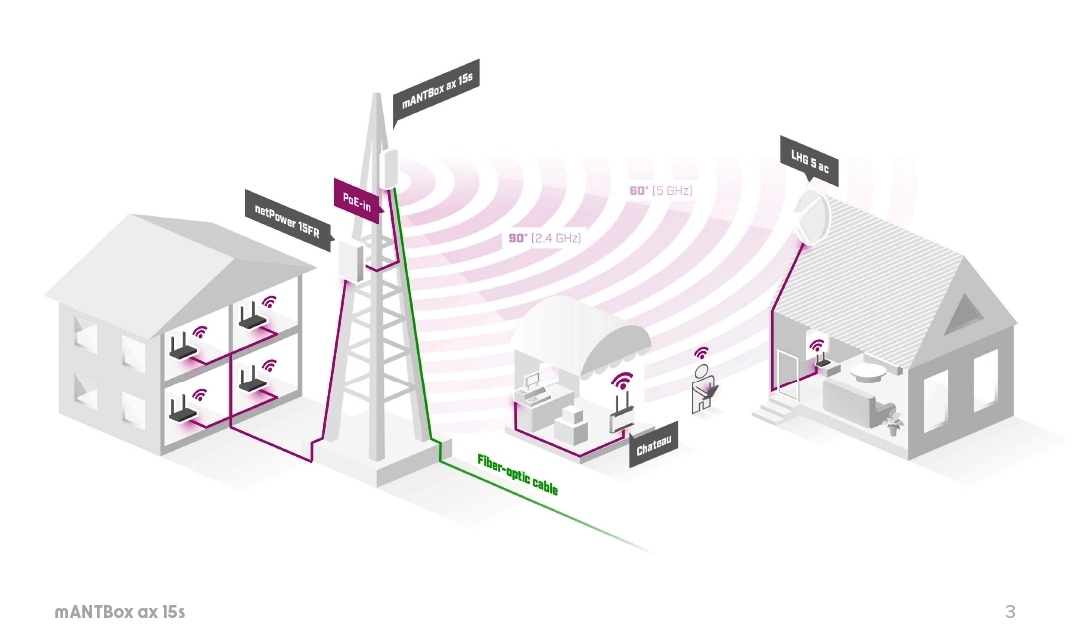

Upgrade to WiFi 6 of the very popular mANTBOX base station with dual-band sector antenna. It is an all-in-one solution for all users who are trying to cover outdoor area such as parks, campsites. The 1 Gb/s LAN port can be used for internet connection or STFP with support up to 2.5 Gb/s for optical networks. For the station is not even a problem wireless connection of the type poin-to-multipoint and up to a distance of 20 km. Compared to the older model, speeds are up to 40% faster in the 5 GHz band and up to 90% faster in the 2.5 GHz band. The security protocol here is WPA3 which is more secure than the previous generation. The shift is also in WiFi 6 thanks to it ensures excellent reliability during fast transitions and thus you have an uninterrupted signal.

Key Features

  • WiFi 6
  • Option to connect to the network via LAN/STFP
  • All-in-one device
  • Connection via point-to-multipoint type for distances up to 20 km

Package Contents

  • Device
  • Gigabit PoE Injector
  • Power Connector
  • Cable Clamp
  • Mounting Kit
  • Mikrotik quickMount

Technical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.

Bussines information

Dan Pacanda, +420 377 221 177 , dan.pacanda@discomp.cz

Technical parameters

Wireless features

Wireless frequency: 2.4 + 5 GHz (dual band)
WiFi standards: 802.11n, 802.11ac, 802.11b/g, 802.11ax
Transmission speed - 5GHz [Mb/s]: 866
Transmission speed - 2.4GHz [Mb/s]: 300
Tx power 2.4GHz [dBm]: 12
Tx power 5GHz [dBm]: 15
Type of antenna: Built-in

Connectors and Interfaces

LAN speed: (1) 10/100/1000Mbps
Gigabit LAN: Yes
Optical interfaces: (1) 1G/2.5Gbps
USB: Yes

Power

Power over Ethernet: 18 .. 28V DC
Power type: PoE, DC connector
PoE type: PoE-In (only)
Max. power consumption [W]: 21
Power via connector/terminal: 12 .. 28V DC

Physical characteristics

Protection class: IP55
Design: Outdoor
Operating temperature [°C]: -40 up to 70
Width [mm]: 140
Height [mm]: 82
Depth [mm]: 349

Hardware

CPU: Dual-Core IPQ-5010 800 MHz
CPU frequency [MHz]: 800
CPU cores: 2
Internal storage [MB]: 128
RAM [MB]: 256

Software

Operating system: RouterOS - L4
Default IP address: 192.168.88.1
Default login and password: admin / -
