MikroTik D53G-5HacD2HnD-TC&FG621-EA, Chateau LTE6
Your price excl. VAT
105.77 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 105.84 EUR |
| Your price incl. VAT (21%) | 128.07 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10300730 | |
| Part No. | D53G-5HacD2HnD-TC&FG621-EA | |
| Warranty | 24 months | |
HGO-LTE-W
6.41 EUR excl. VAT
8.00 EUR incl. VAT
In Stock
PR1KCL25
10.75 EUR excl. VAT
13.25 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
Video
GPSR
Technical parameters
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band), 3G (GSM), LTE
WiFi standards:
802.11ac, 802.11n, 802.11a, 802.11b/g
Transmission speed - 5GHz [Mb/s]:
866
Transmission speed - 2.4GHz [Mb/s]:
300
Tx power 2.4GHz [dBm]:
25
Tx power 5GHz [dBm]:
26
2.4GHz MIMO:
2 x 2
5GHz MIMO:
2 x 2
Type of antenna:
Built-in, Detachable
Internal antennas:
4
Detachable antennas:
2
Antenna gain [dBi]:
2, 4
Integrated 4G/LTE radio part:
Yes
4G/LTE bands support:
(1) 2100 MHz, (3) 1800 MHz, (5) 850 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (28) 700 MHz, (38) 2600 MHz, (40) 2300 MHz, (41) 2500 MHz
Connectors and Interfaces
RF connectors:
(2) SMA female
LAN speed:
(5) 10/100/1000Mbps
Gigabit LAN:
Yes
USB ports 2.0:
1
SIM slot:
Yes
SIM slots quantity:
1
USB:
Yes
Power
Max. power consumption [W]:
15
Power via connector/terminal:
12 .. 28V DC
Physical characteristics
Design:
Desktop
Purpose:
Indoor
Buttons:
Reset, mode
Operating temperature [°C]:
-40 up to 70
Width [mm]:
240
Height [mm]:
156
Depth [mm]:
44
Hardware
CPU:
IPQ-4019
CPU frequency [MHz]:
716
CPU cores:
4
Internal storage [MB]:
16
RAM [MB]:
256
Software
Operating mode:
AP Router, Access Point, Cellular router
Operating system:
RouterOS - L4
IPv6 support:
Yes
Default IP address:
192.168.88.1
Default login and password:
admin / -
Video
Product description
Chateau LTE6 is a Dual Band home WiFi router with 5x Gigabit LAN ports and LTE category 6 modem included one USB port and a micro SIM card slot. The wireless part of 2.4 GHz provides modulation speed 300 Mbps and 5GHz up to 866 Mbps. Chateau has four built-in antennas for WiFi and two connectors for connecting external LTE antennas in case of weak signal of the built-in antennas.
Chateau LTE6 model is the perfect router for the IT administrator and for the household with zero IT experience. This router provides modulation speed of 300 Mbps for download and 50 Mbps for upload with low latencies in 3G/LTE network.

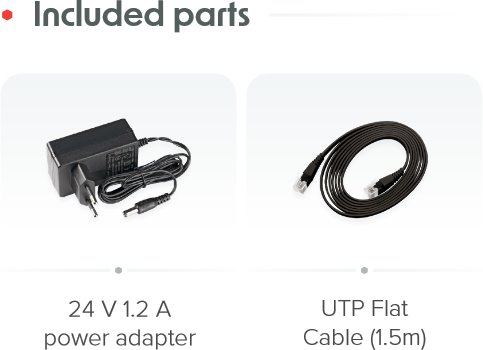

Package contents
Download
Datasheet Firmware (RouterOS / SwOS)GPSR
Mikrotikls SIA
Unijas iela 2, LV-1039 Riga, Latvia
support@mikrotik.com
Technical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
Bussines information
Dan Pacanda, +420 377 221 177 , dan.pacanda@discomp.cz
