MikroTik D53G-5HacD2HnD-TC&EG120K-EA, Chateau LTE12 (2025)
MikroTik D53G-5HacD2HnD-TC&EG120K-EA, Chateau LTE12 (2025)
×
0/0
New product
Your price excl. VAT
127.95 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 128.02 EUR |
| Your price incl. VAT (21%) | 154.90 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10904492 | |
| Part No. | D53G-5HacD2HnD-TC&EG120K-EA | |
| Warranty | 24 months | |
PR1KCL25
10.76 EUR excl. VAT
13.26 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.61 EUR excl. VAT
0.74 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.68 EUR excl. VAT
4.45 EUR incl. VAT
In Stock
MTAO-LTE-5D-SQ
12.87 EUR excl. VAT
15.81 EUR incl. VAT
In Stock
HGO-LTE-W
5.96 EUR excl. VAT
7.45 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band), LTE
WiFi standards:
802.11n, 802.11a, 802.11ac, 802.11b/g
Transmission speed - 5GHz [Mb/s]:
866
Transmission speed - 2.4GHz [Mb/s]:
300
Tx power 2.4GHz [dBm]:
27
Tx power 5GHz [dBm]:
26
2.4GHz MIMO:
2 x 2
5GHz MIMO:
2 x 2
Type of antenna:
Built-in, Detachable
Internal antennas:
4
Detachable antennas:
2
Antenna gain [dBi]:
4, 2
Integrated 4G/LTE radio part:
Yes
4G/LTE bands support:
(1) 2100 MHz, (3) 1800 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (38) 2600 MHz, (40) 2300 MHz, (5) 850 MHz, (41) 2500 MHz, (28) 700 MHz, (32) 1500 MHz
Connectors and Interfaces
RF connectors:
(2) SMA male
LAN speed:
(5) 10/100/1000Mbps
Gigabit LAN:
Yes
USB ports 2.0:
1
SIM slot:
Yes
SIM slots quantity:
1
USB:
Yes
Power
Power type:
DC connector
Max. power consumption [W]:
18
Power via connector/terminal:
12 .. 28V DC
Physical characteristics
Design:
Desktop
Purpose:
Indoor
Buttons:
Reset, mode
Operating temperature [°C]:
-20 up to 70
Width [mm]:
240
Height [mm]:
156
Depth [mm]:
44
Hardware
CPU:
IPQ-4019
CPU frequency [MHz]:
896
CPU cores:
4
Internal storage [MB]:
32
RAM [MB]:
256
Software
Operating mode:
AP Router
Operating system:
RouterOS v7 - L4
IPv6 support:
Yes
Product description

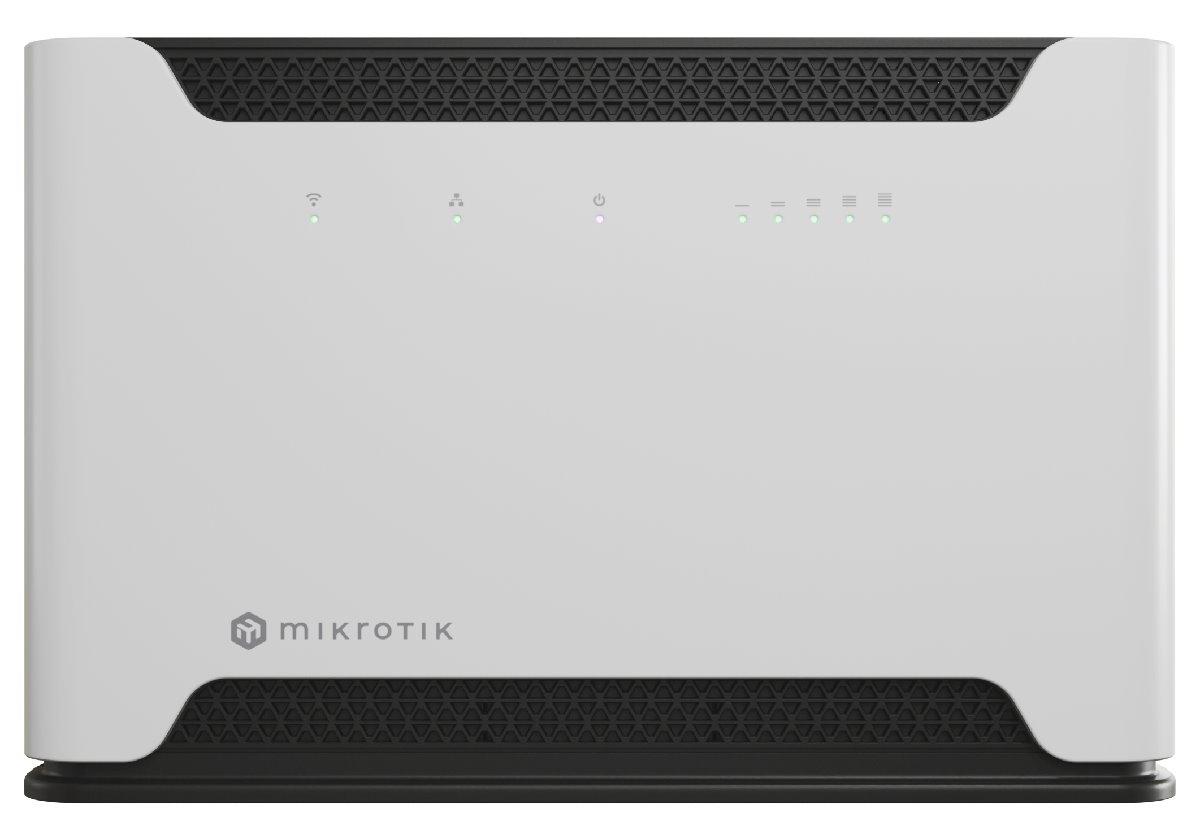

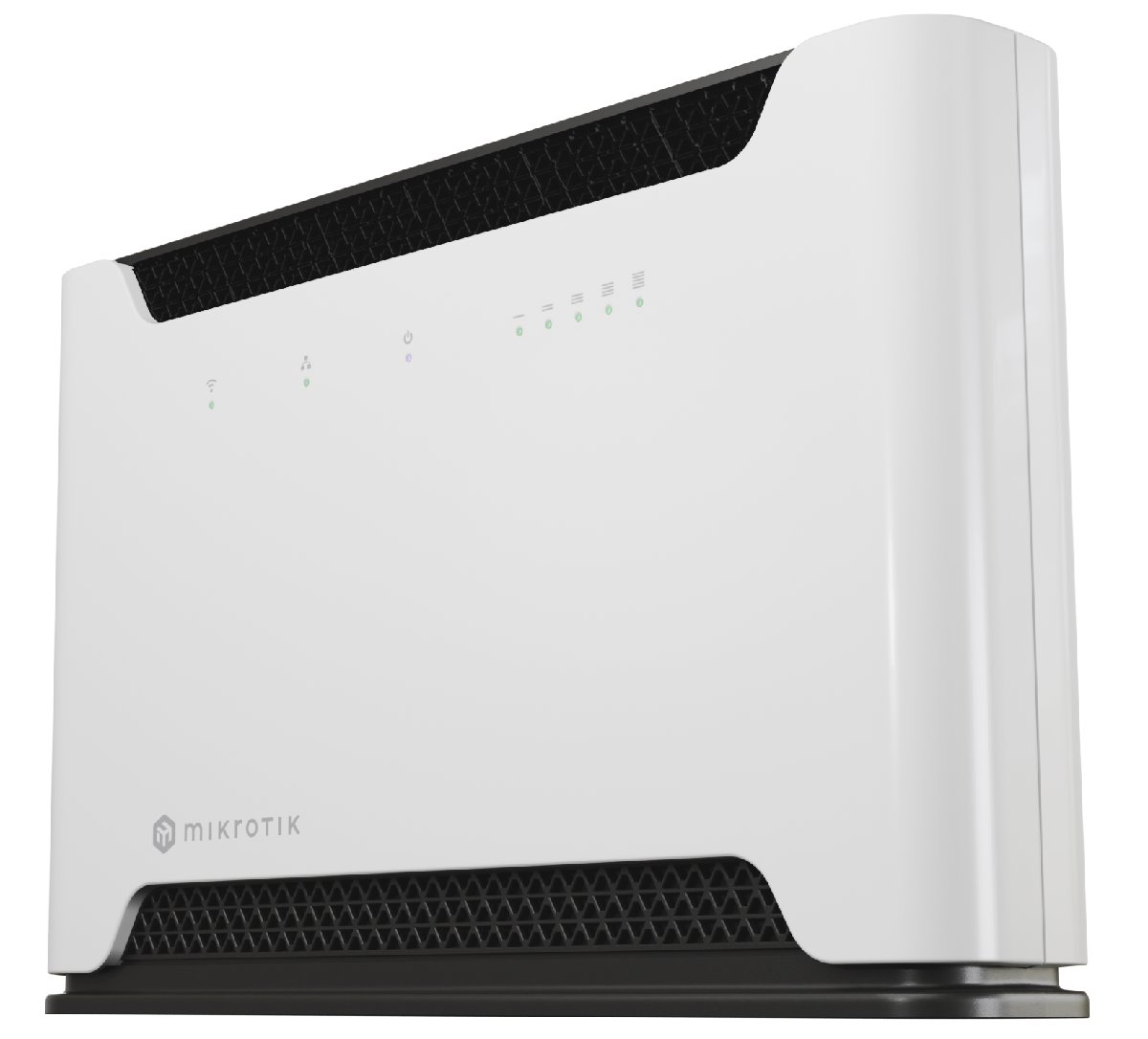

Mikrotik introduces the new Chateau LTE12 (2025) with an upgraded LTE modem. The Chateau LTE12 (2025) is a dual-band home WiFi router with 5x Gigabit LAN ports and a category 12 LTE modem, including a USB port. The modulation speed of the 2.4GHz reaches up to 300Mbps, while the 5GHz band supports up to 866Mbps.

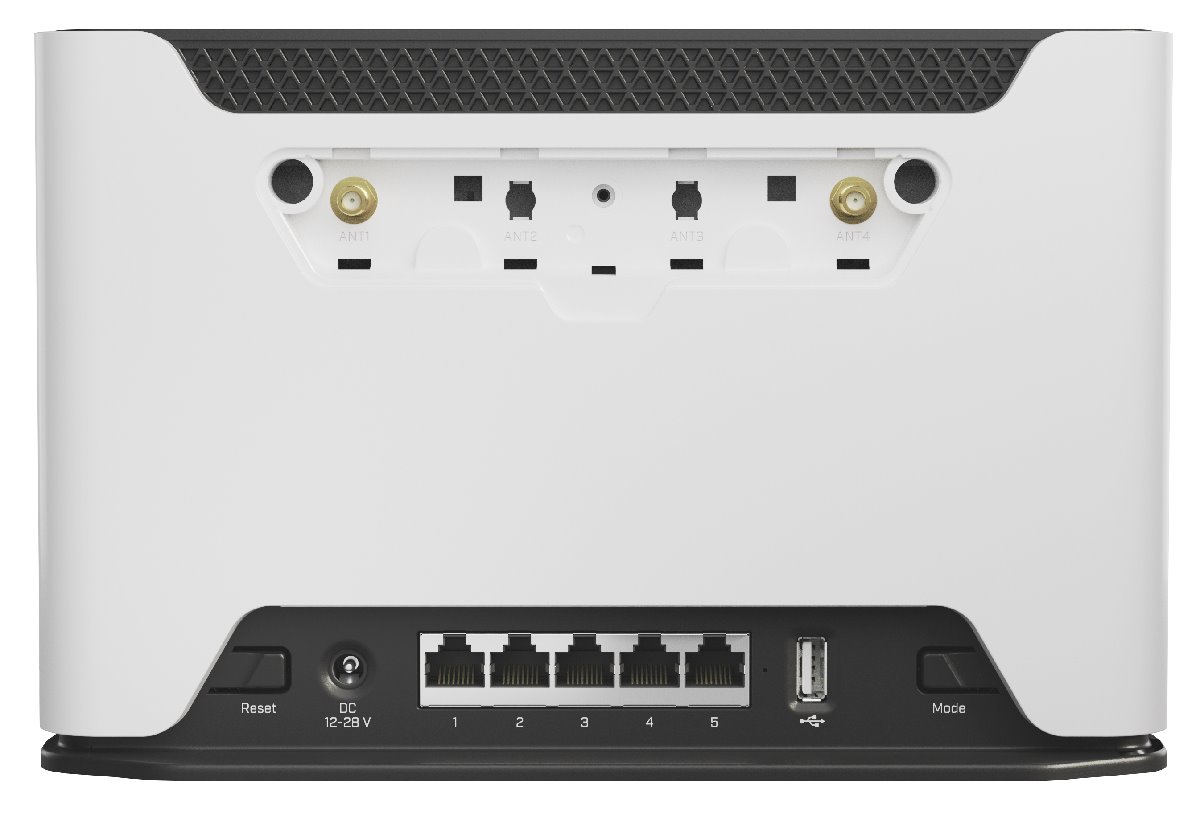

The Chateau features four built-in WiFi antennas and two connectors for external LTE antennas (antennas are not included in the package).
With the Chateau LTE12 kit, you are no longer restricted by cabling – CAT12 LTE provides speeds of up to 600 Mbps for download and up to 150 Mbps for upload with low latency. LTE CAT12 enables devices to use three bands simultaneously, which is beneficial in areas with high LTE traffic or weak signal strength.
