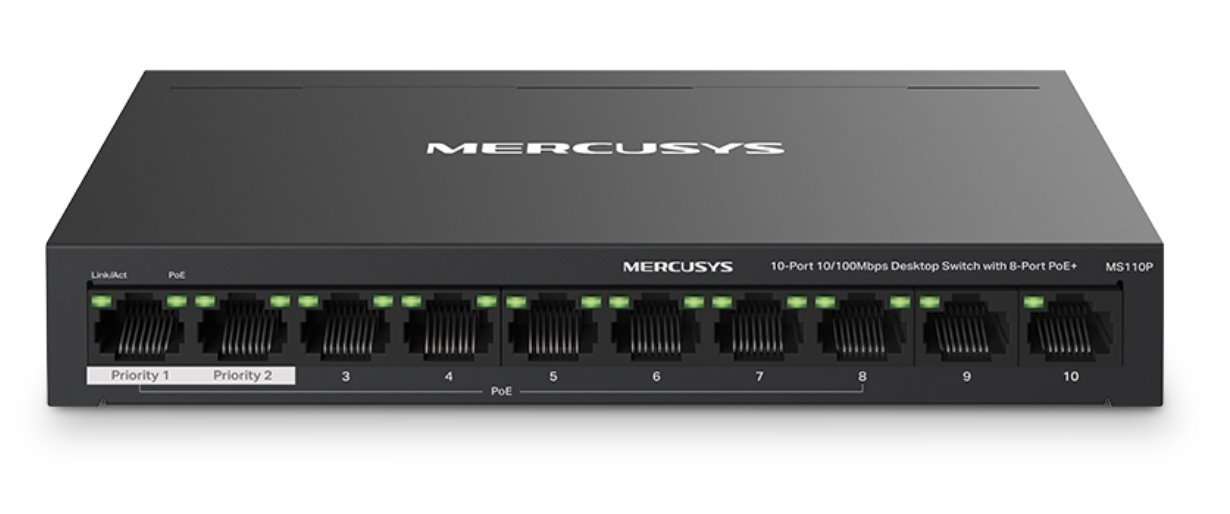

MERCUSYS MS110P PoE switch

Product description

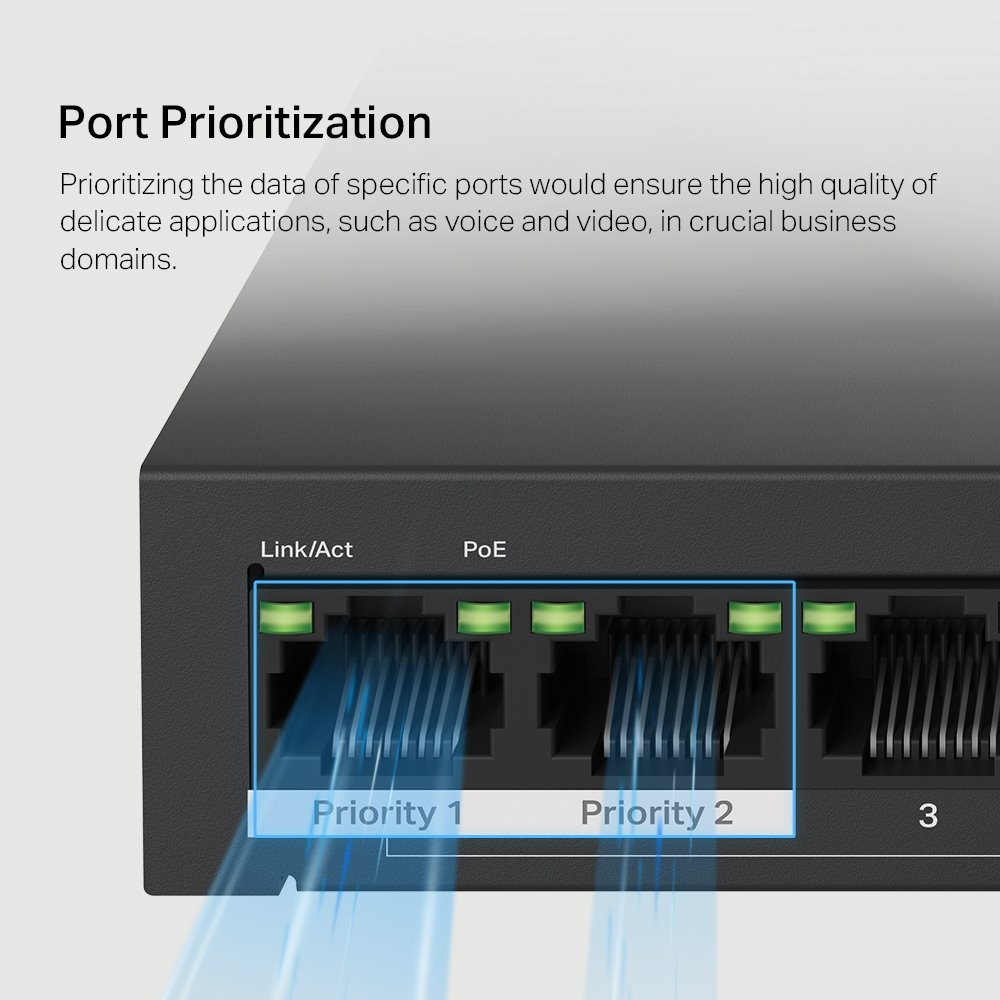

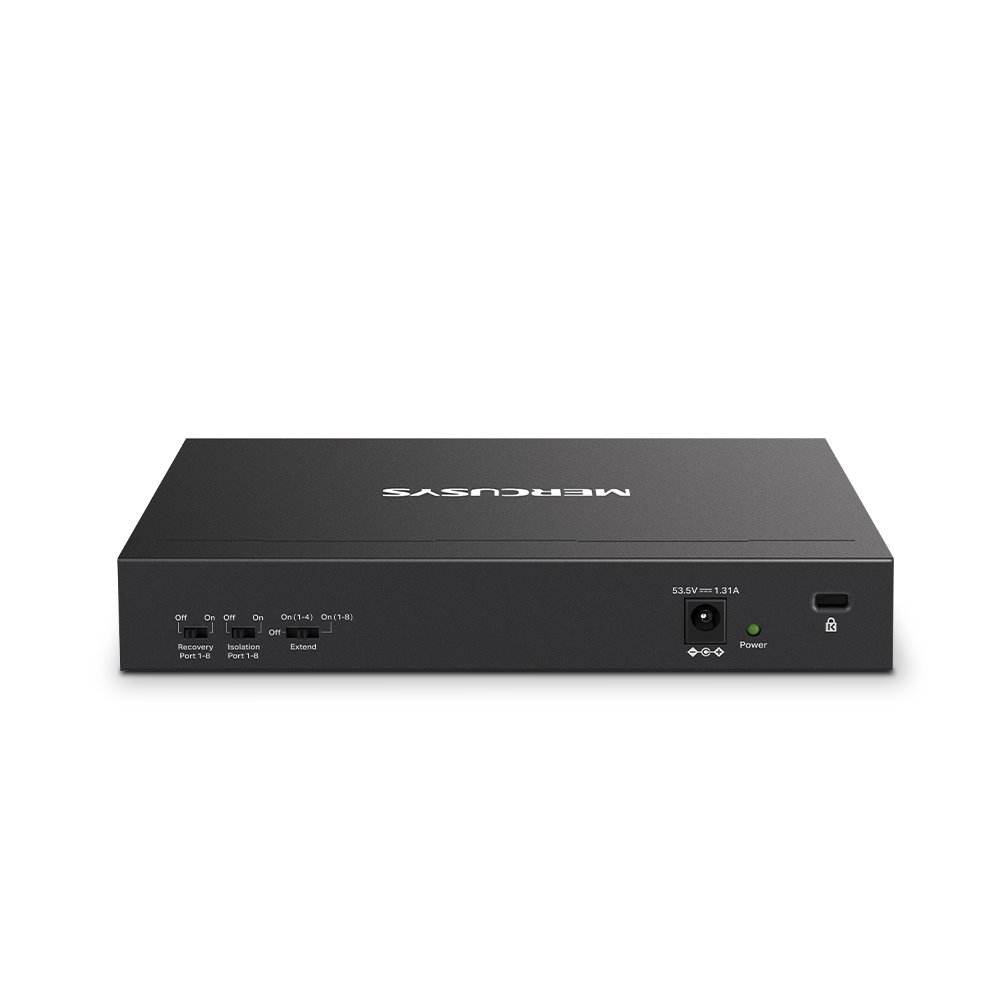

MS110P is a 10-port 100Mbps POE desktop switch. The switch supports 802.3af/at standards with a maximum power of 30W/port and has a total POE budget of 65W on 8 ports. Prioritizing the first two ports will ensure flawless operation of powered devices susceptible to flawless data transmission, such as voice or video. Thanks to the mechanical switch on the back, the POE ports can be switched to Extend mode. when the maximum range is extended up to 250m, depending on the quality of the cable and the power input of the powered device. The line speed is automatically reduced to 10Mbps in this mode. Of course, POE ports can be also isolated. The metal chassis ensures optimal cooling and a long life of the device.

Key features

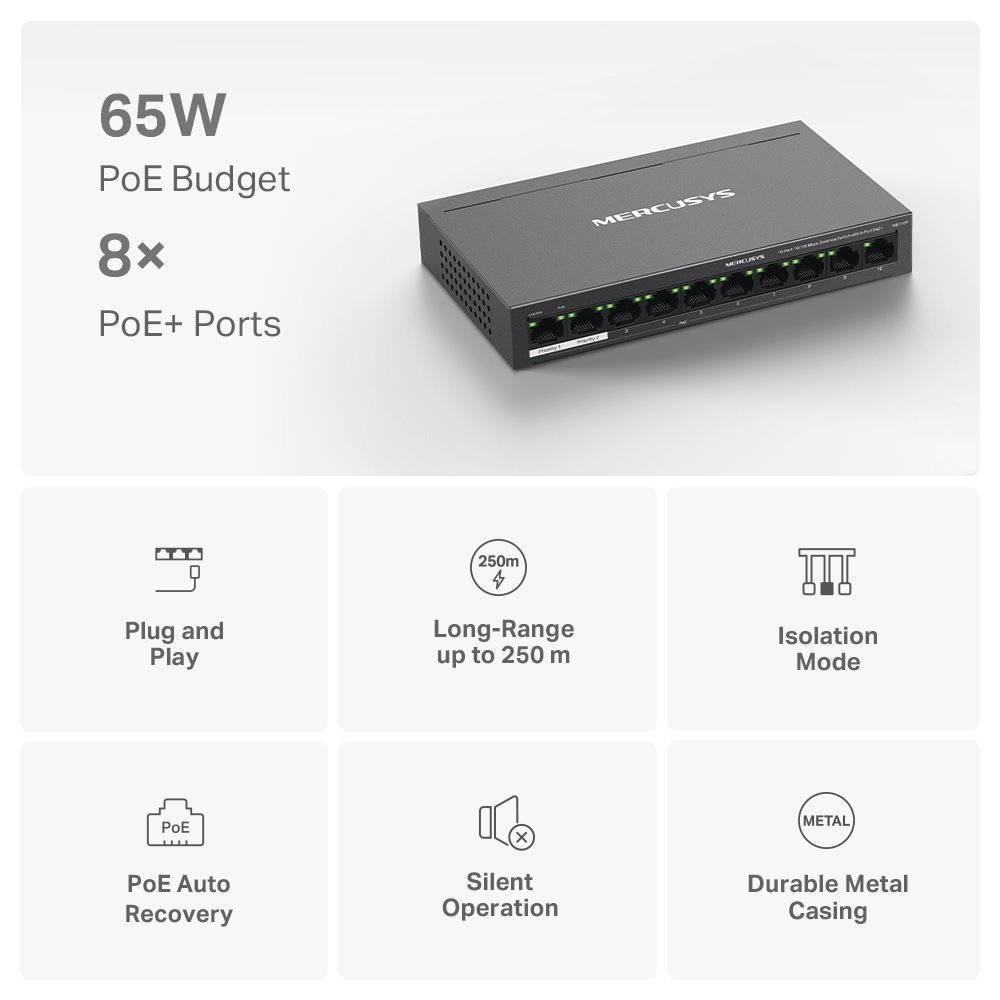

• 10 Ports: 10× 10/100 Mbps RJ45 ports with 8 PoE+ ports

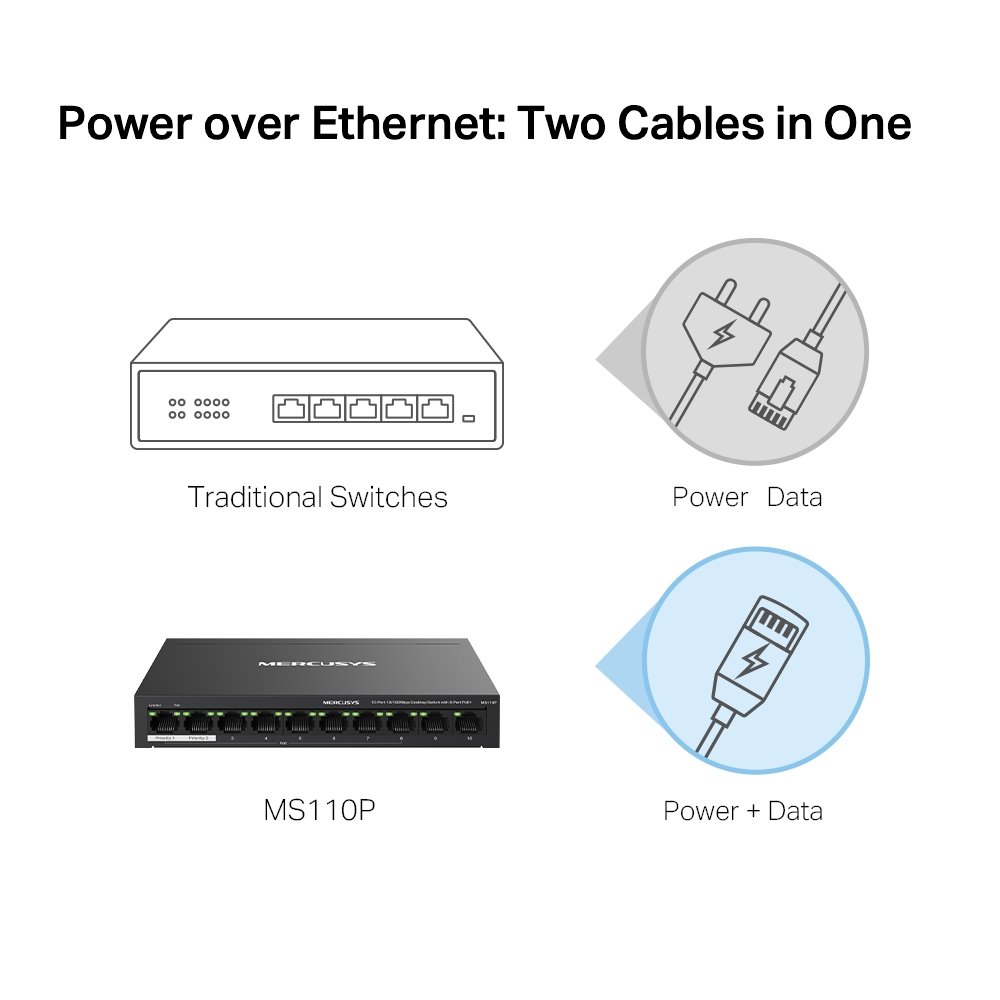

• Two Cables in One: With four PoE+ ports, transfers data and power on one single cable
• High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports
• 2× Uplink Ports: MS110P provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR
• Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode

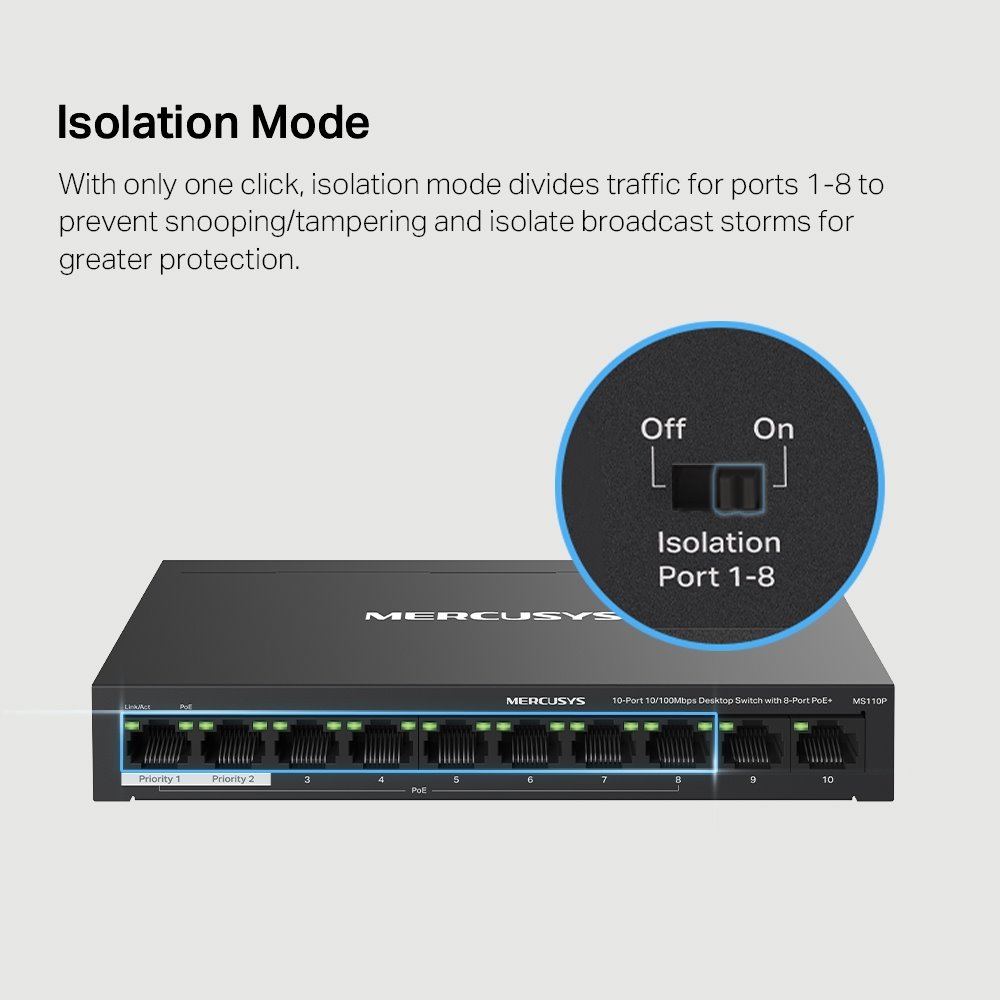

• Isolation Mode: One click to divide traffic for specific ports for stability and security
• Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
• Durable Metal Casing: Allows for efficient heat dissipation and long network life

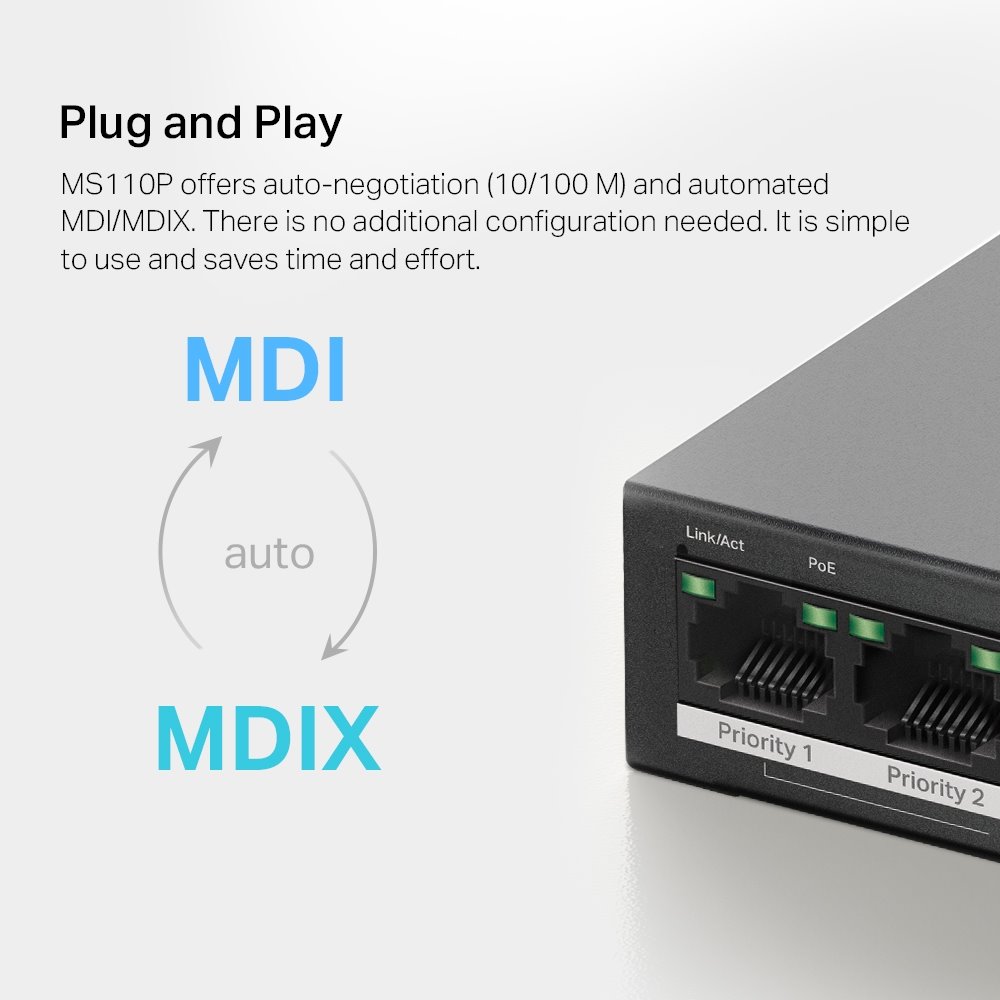

• Plug and Play: Simple to use and saves time and effort
• PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices

Package contents

• Device
• Power adapter 53.5V/1,31A
• Quick installation guide
