Mercusys MA86XE Wi-Fi 6E Bluetooth 5.3 PCIe Adapter
Mercusys MA86XE Wi-Fi 6E Bluetooth 5.3 PCIe Adapter
×
0/0
New product
Your price excl. VAT
25.78 EUR
| Recycling fee | 0.06 EUR |
|---|---|
| Your price with RF | 25.84 EUR |
| Your price incl. VAT (21%) | 31.27 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
MERCUSYS |
|
|---|---|---|
| Code | 10410999 | |
| Part No. | MA86XE | |
| Warranty | 36 months | |
Parameters
Download
Technical parameters
Wireless features
Sensitivity [dBm]:
-92
Wireless frequency:
2.4 + 5 + 6 GHz (triple band)
WiFi standards:
802.11n, 802.11a, 802.11ac, 802.11b/g, 802.11ax, 802.15.1 (Bluetooth)
Transmission speed - 5GHz [Mb/s]:
2402
Transmission speed - 2.4GHz [Mb/s]:
574
Transmission speed - 6GHz [Mb/s]:
2402
Security:
WPA-PSK, WPA2-PSK, WPA3
2.4GHz MIMO:
2 x 2
5GHz MIMO:
2 x 2
6GHz MIMO:
2 x 2
Type of antenna:
Fixed
Connectors and Interfaces
Interface:
PCI Express
Physical characteristics
Size:
Full profile
Operating temperature [°C]:
0 up to 40
Width [mm]:
226
Height [mm]:
22
Depth [mm]:
120
General
Type of network card:
WLAN
Product description

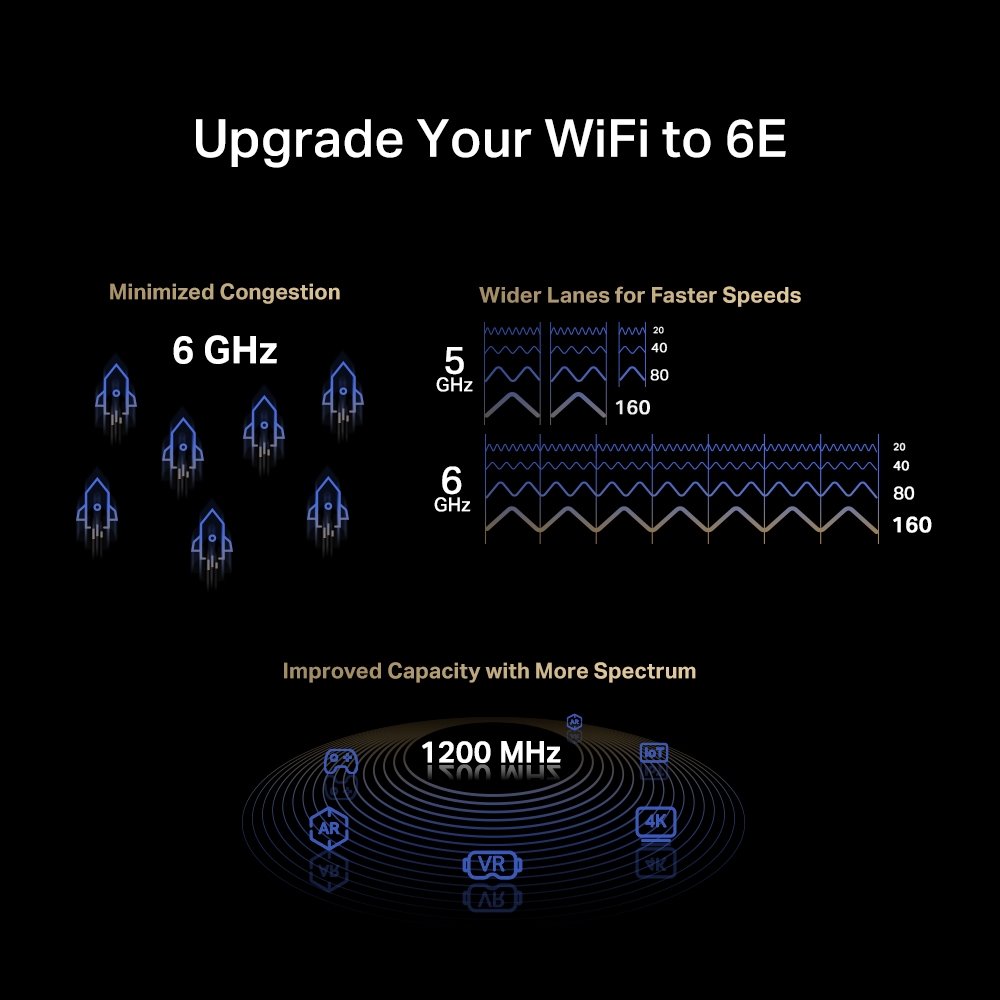

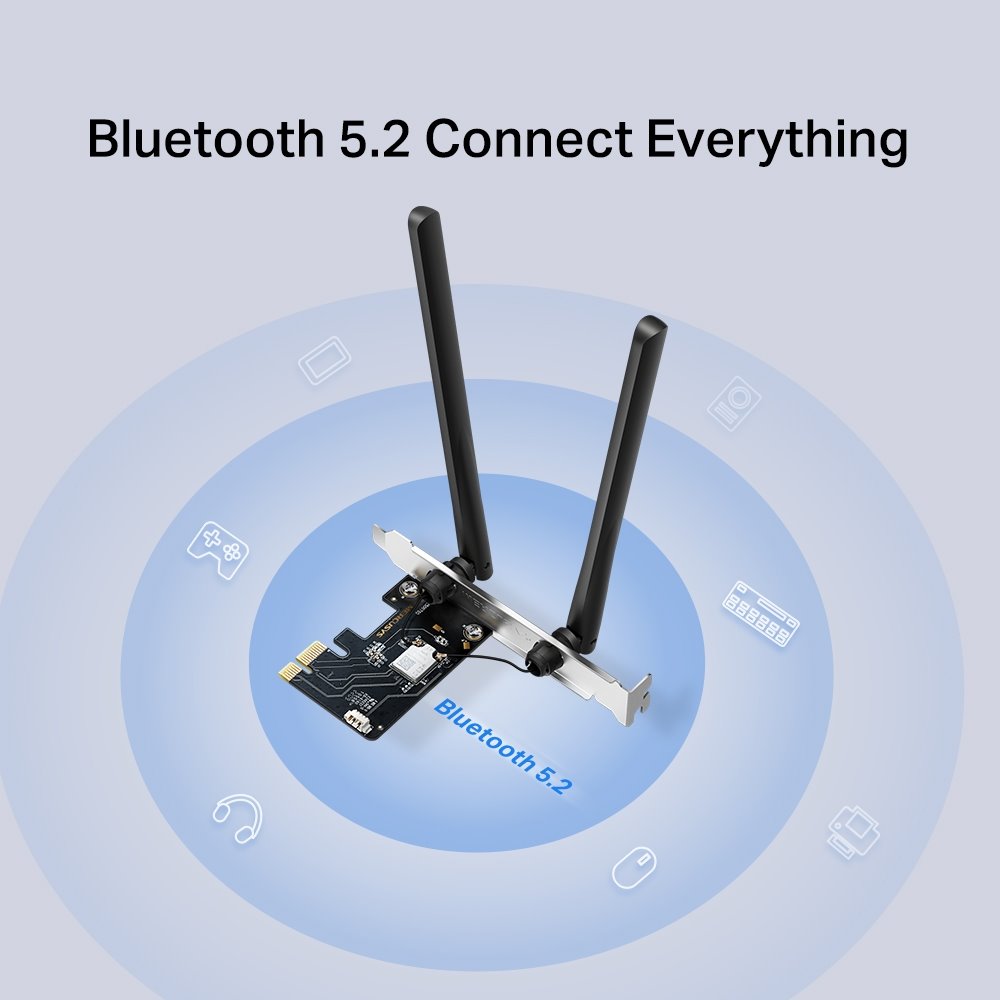

MA86XE is a wireless PCI express adapter that allows you to take advantage of the WiFi 6E standard with a total speed of up to 5.4Gbps (2402Mbps @ 6GHz, 2402Mbps @ 5GHz, 574Mbps @ 2.4GHz). Backward compatibility with older 802.11ax/ac/a/b/g/n standards is ensured. The card supports the most modern WPA3 encryption algorithm, so your data will be completely safe in combination with a compatible router. In addition, the card has integrated bluetooth 5.3, so connecting your peripherals will not be a problem.
Although the card is supported by the Windows 10 and 11 operating systems, the benefits of the 6GHz band can only be used in the Windows 11 system. The card is not compatible with a low-profile mount due to the use of fixed antennas.
