Masterlan Visual fault locator 10mW
Masterlan Visual fault locator 10mW
×
0/0
New product
Your price excl. VAT
15.92 EUR
| Your price incl. VAT (21%) | 19.26 EUR |
|---|---|
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Masterlan |
|
|---|---|---|
| Code | 10981359 | |
| Part No. | FOVFL1_10 | |
| Warranty | 36 months | |
You have a choice of 2 variantscompare all
10km
FOVFL1_10
15.92 EUR
Parameters
GPSR
Technical parameters
Optics
Distance [km]:
10
Physical characteristics
Width [mm]:
26
Height [mm]:
26
Depth [mm]:
175
Product description

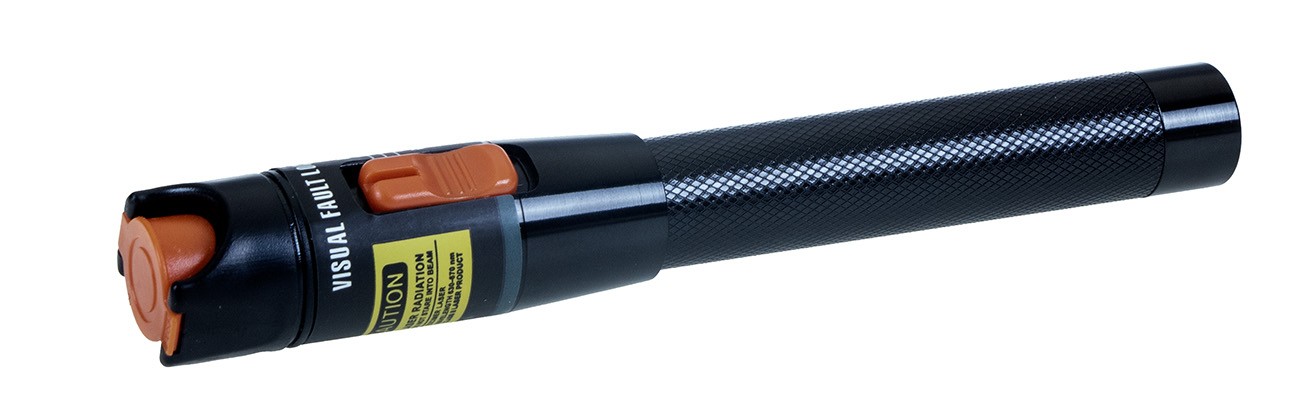

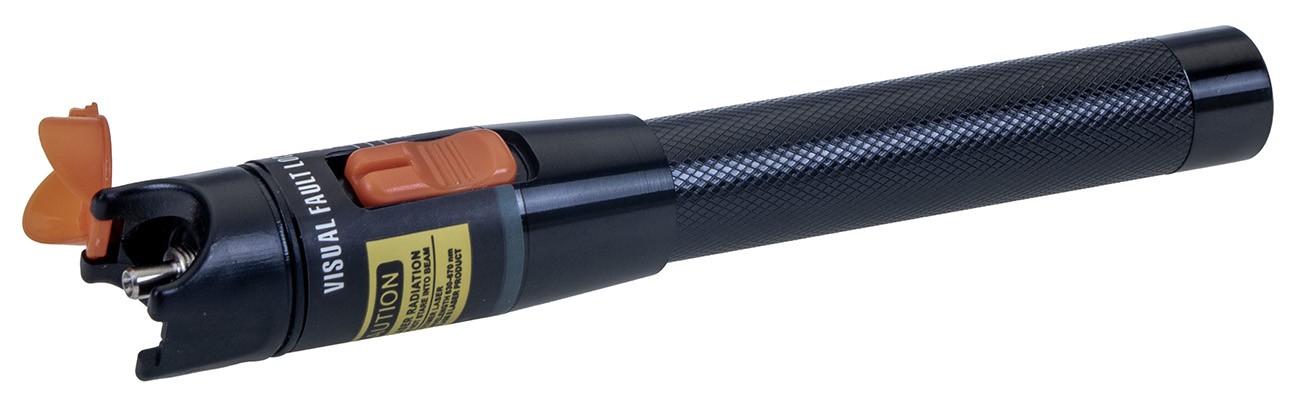

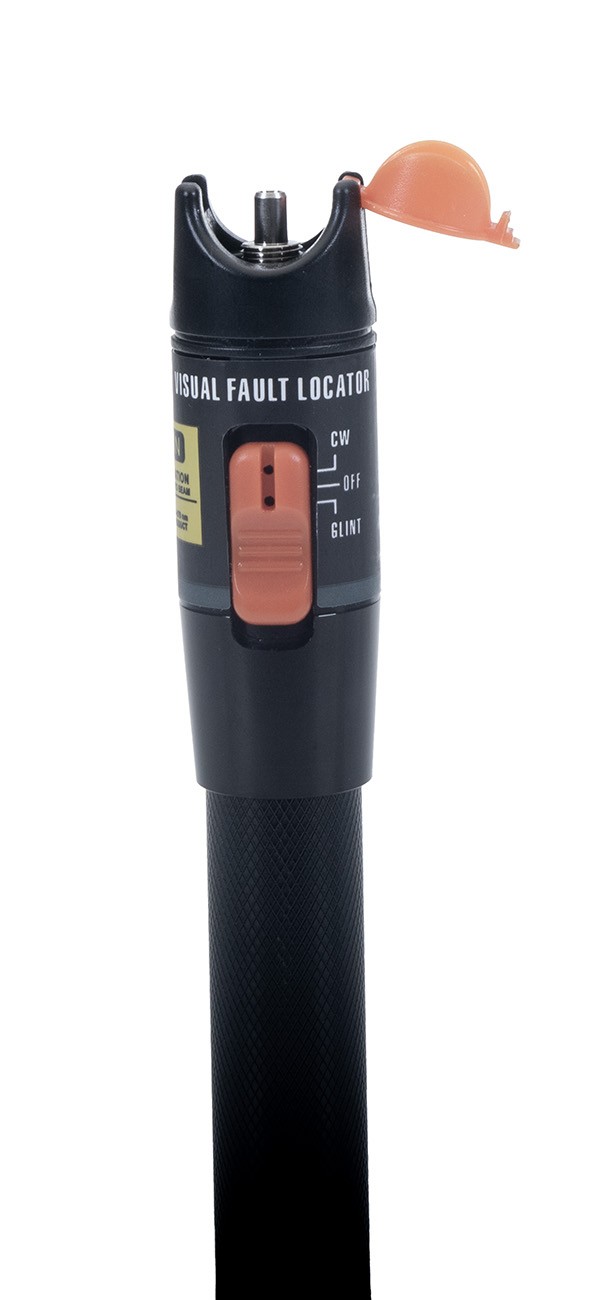

The optical fiber visual fault locator (VFL) with a power output of 10mW emits a visible red laser beam with a wavelength of 650nm. The device can emit either a continuous beam (CW mode) or a pulsed beam (GLINT mode). When the beam encounters an obstacle, the light scatters, allowing you to easily identify issues such as a broken fiber, severed cable, defective, or dirty connector, etc.
Thanks to its design, the locator is suitable for connectors with a 2.5mm ferrule, such as SC, ST, FC, and E2000. The locator has a range of up to 10km and is powered by 2x AA batteries. It is not suitable for use with dark or armored cables whose sheath cannot transmit the light. In such cases, we recommend using an OTDR.
