Masterlan one-piece rack data cabinet 19" 9U/400mm, disassembled - FLAT PACK, glass door
Masterlan one-piece rack data cabinet 19" 9U/400mm, disassembled - FLAT PACK, glass door
×
0/0
Recommended
Your price excl. VAT
79.70 EUR
| Your price incl. VAT (21%) | 96.44 EUR |
|---|---|
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Masterlan |
|
|---|---|---|
| Code | 10500086 | |
| Part No. | 9U-64-AA1-G-XSZ | |
| Warranty | 24 months | |
You have a choice of 3 variantscompare all
LY-PP5-25
13.73 EUR excl. VAT
16.61 EUR incl. VAT
In Stock
PDU-FRS5208
22.57 EUR excl. VAT
27.36 EUR incl. VAT
In Stock
FS-A1-250-B
17.16 EUR excl. VAT
20.76 EUR incl. VAT
In Stock
RM-4PCS-MS
0.96 EUR excl. VAT
1.16 EUR incl. VAT
In Stock
MSVH10MM
0.88 EUR excl. VAT
1.06 EUR incl. VAT
Not in stock
Parameters
Download
Video
GPSR
Technical parameters
Physical characteristics
Recommended load [kg]:
60
Ventilation option:
Yes
Protection class:
IP20
Size:
19"
Purpose:
Indoor
"U" positions:
9
Weight [kg]:
17,2

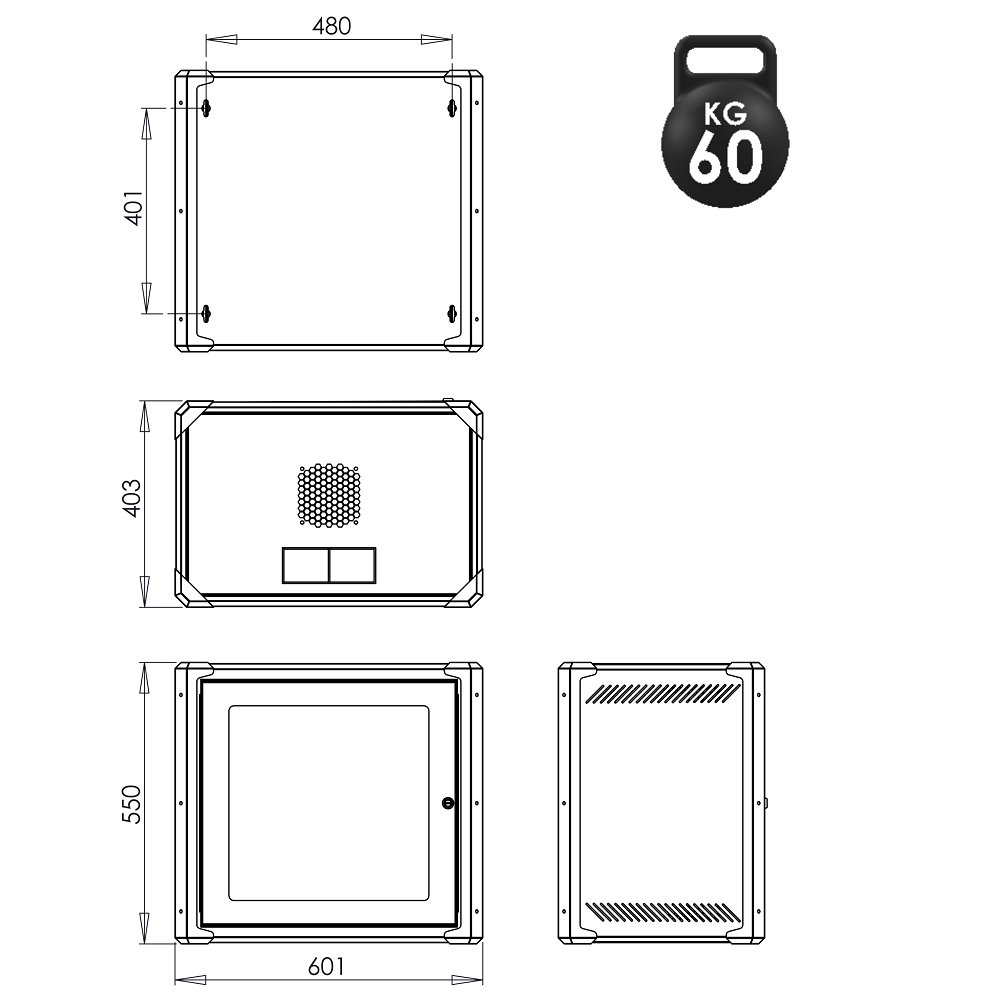

Width [mm]:
601
Height [mm]:
547
Depth [mm]:
402
Door panel:
Glass
Mountable:
Yes
Color:
Grey
General
Cabinet type:
Wall-mounted
Video
Product description
Rack data cabinets made by Masterlan have very robust and solid construction while maintaining low weight.
The 9U/400mm data cabinet is delivered disassembled. Its assembly is very simple and matter of a few minutes. No special tools needed just only flat-head and Phillips screwdriver. Disassembled delivery simplifies transport and handling plus saves shipping cost.
The data cabinet comes with a glass door. The door can be easily mounted on left or right side.
For mounting on the wall you can use four holes on the back side. The ventilation and cable holes are on the top and the bottom side. On both sides are ventilation holes as well.
Download
Assembly InstructionsGPSR
