Masterlan one-piece rack data cabinet 19" 15U/600mm, disassembled - FLAT PACK, metal door
Oversized transport - The shipping price will be calculated after receiving the order. Shipping price may vary depending on your delivery adress.
Your price excl. VAT
175.51 EUR
| Your price incl. VAT (21%) | 212.37 EUR |
|---|---|
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Masterlan |
|
|---|---|---|
| Code | 10500084 | |
| Part No. | 15U-66-AA1-G-XPZ | |
| Warranty | 24 months | |
You have a choice of 3 variantscompare all
FS-A1-250-B
17.16 EUR excl. VAT
20.76 EUR incl. VAT
In Stock
PDU-FRS5208
22.36 EUR excl. VAT
27.10 EUR incl. VAT
In Stock
LY-PP5-25
13.61 EUR excl. VAT
16.47 EUR incl. VAT
In Stock
RM-4PCS-MS
0.95 EUR excl. VAT
1.15 EUR incl. VAT
In Stock
MSVH12MM
1.30 EUR excl. VAT
1.57 EUR incl. VAT
In Stock
Parameters
Video
Technical parameters
Physical characteristics
Recommended load [kg]:
60
Ventilation option:
Yes
Protection class:
IP20
Size:
19"
Purpose:
Indoor
"U" positions:
15
Width [mm]:
601
Height [mm]:
815
Depth [mm]:
600
Door panel:
Sheet
Mountable:
Yes
Color:
Grey
General
Cabinet type:
Wall-mounted
Video
Product description
Rack data cabinets made by Masterlan have very robust and solid construction while maintaining low weight.
The 15U/600mm data cabinet is delivered disassembled. Its assembly is very simple and matter of a few minutes. No special tools needed just only flat-head and Phillips screwdriver. Disassembled delivery simplifies transport and handling plus saves shipping cost.

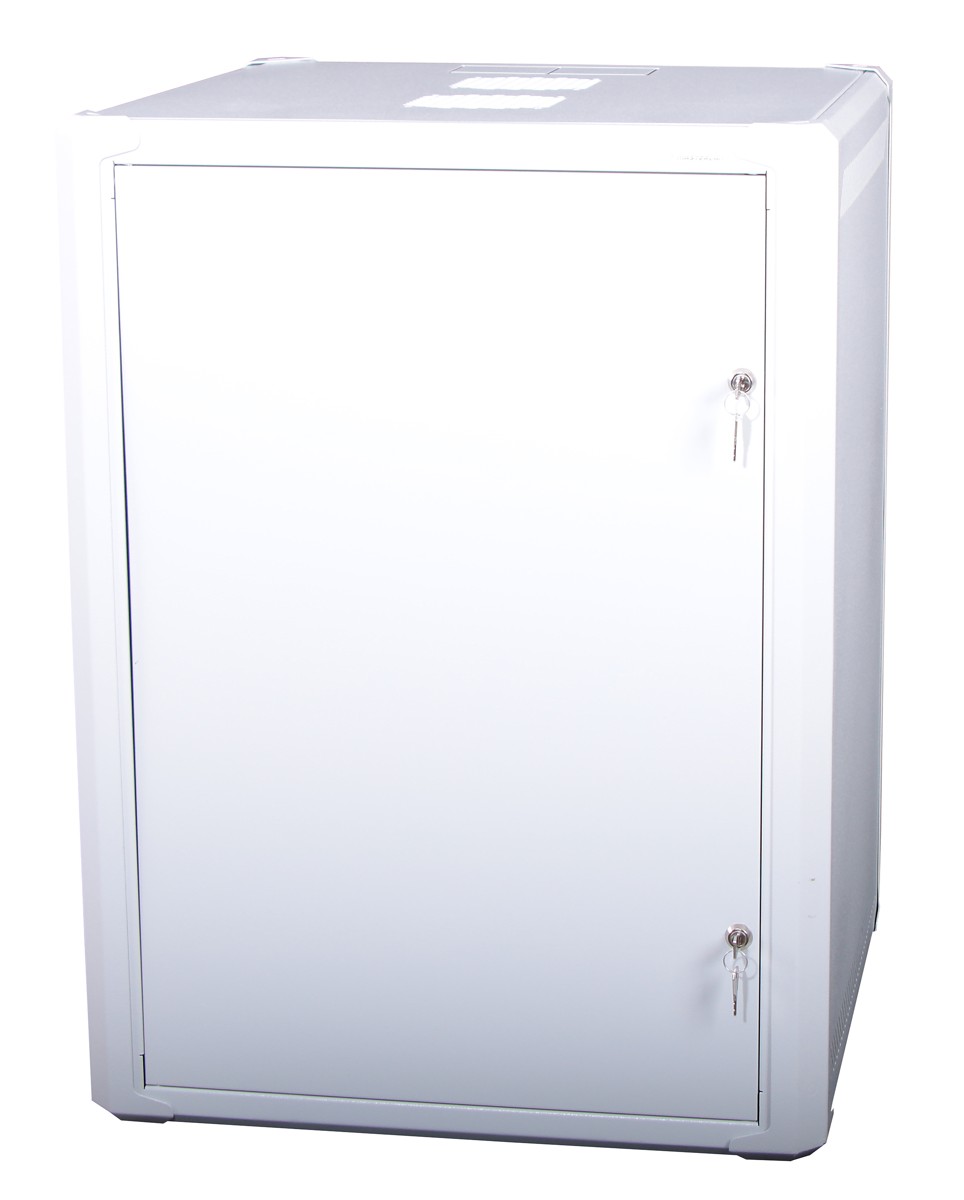

The data cabinet comes with a metal door. The door can be easily mounted on left or right side.

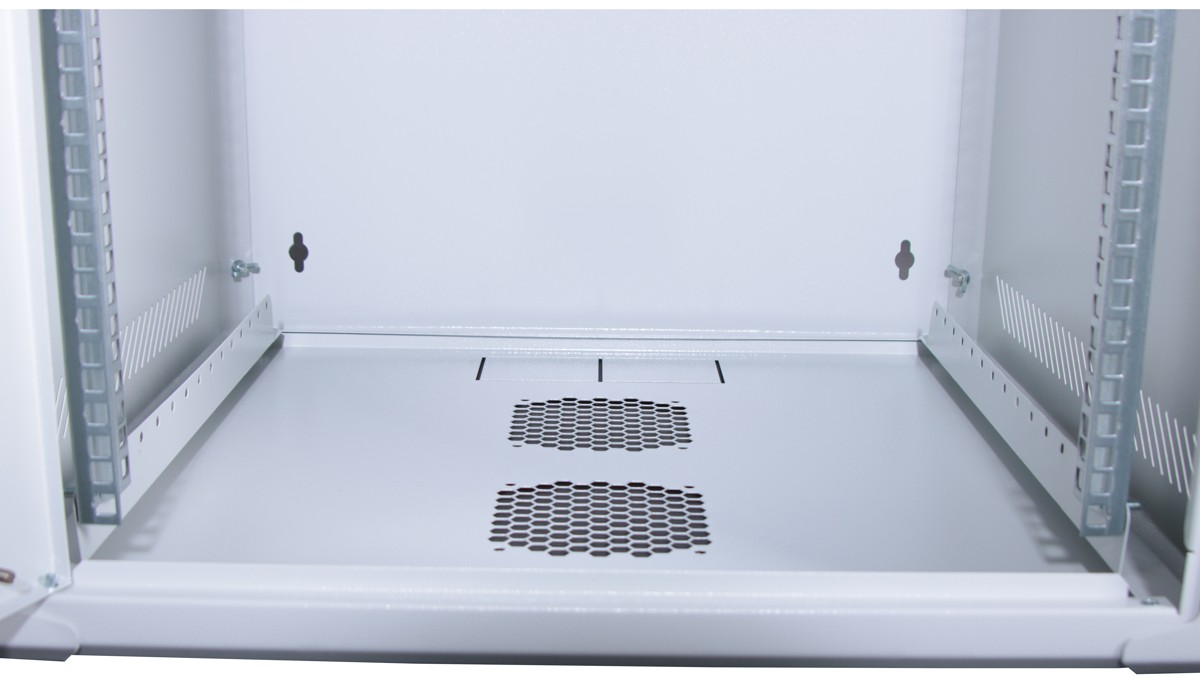

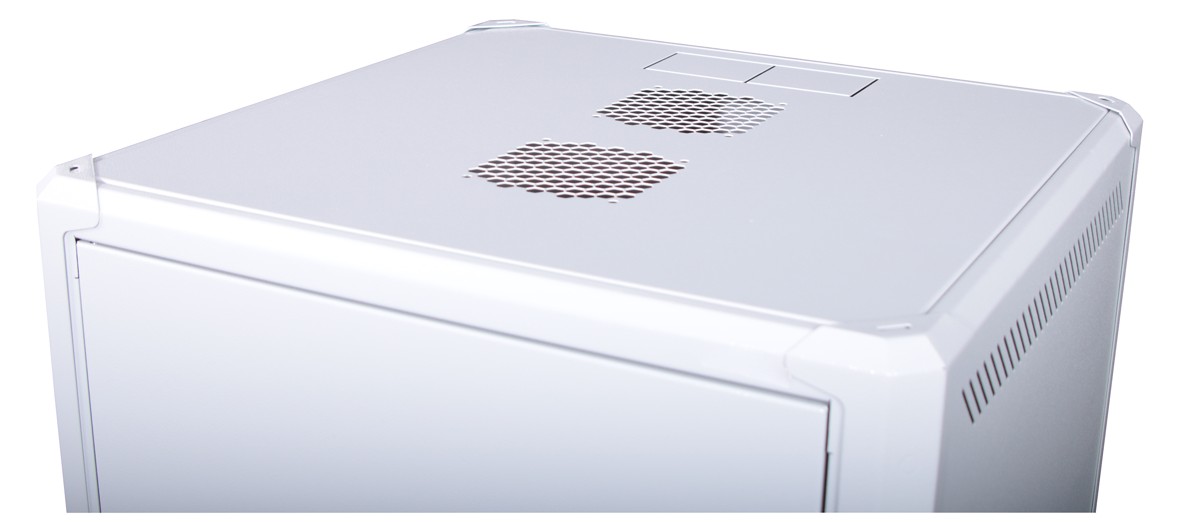

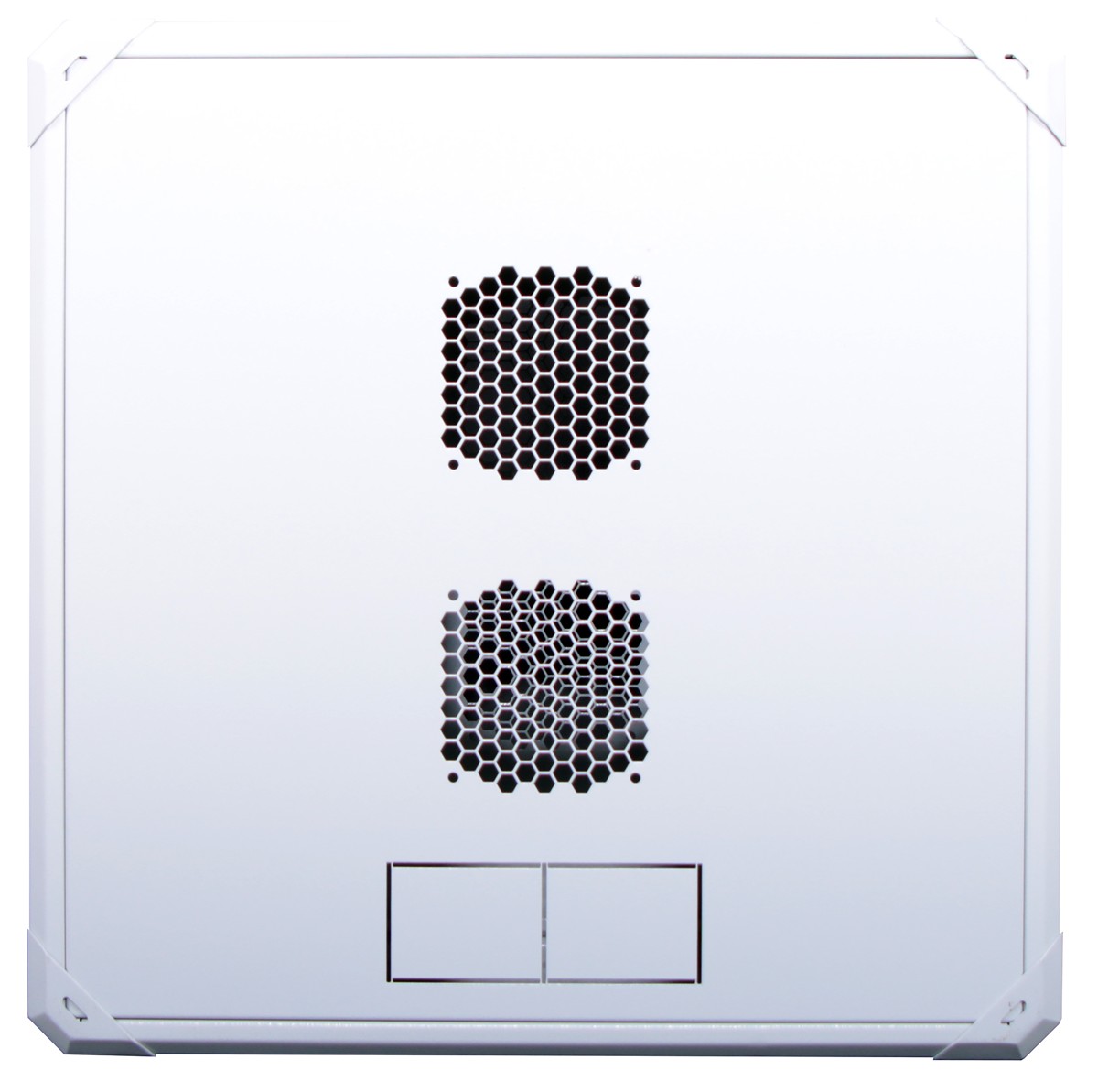

For mounting on the wall you can use four holes on the back side. The ventilation and cable holes are on the top and the bottom side. On both sides are ventilation holes as well.
Technical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
