Masterlan fiber optic patch cord, LCupc-SCapc, Singlemode 9/125, simplex, 1m
Masterlan fiber optic patch cord, LCupc-SCapc, Singlemode 9/125, simplex, 1m
×
0/0
Your price excl. VAT
2.79 EUR
| Your price incl. VAT (21%) | 3.38 EUR |
|---|---|
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Masterlan |
|
|---|---|---|
| Code | 10902081 | |
| Part No. | LCupc/SCapc-SSM.9/125-01 | |
| Warranty | 24 months | |
You have a choice of 3 variantscompare all
Parameters
Download
GPSR
Technical parameters
Optics
Number of fibers:
1
Fiber type:
Single Mode
Core diameter [µm]:
9/125
Polishing type:
UPC / APC
Connectors and Interfaces
Optical Connectors:
LC - SC, SC - LC
Physical characteristics
Purpose:
Indoor
Length [m]:
1
LSZH (LSOH):
Yes
Product description

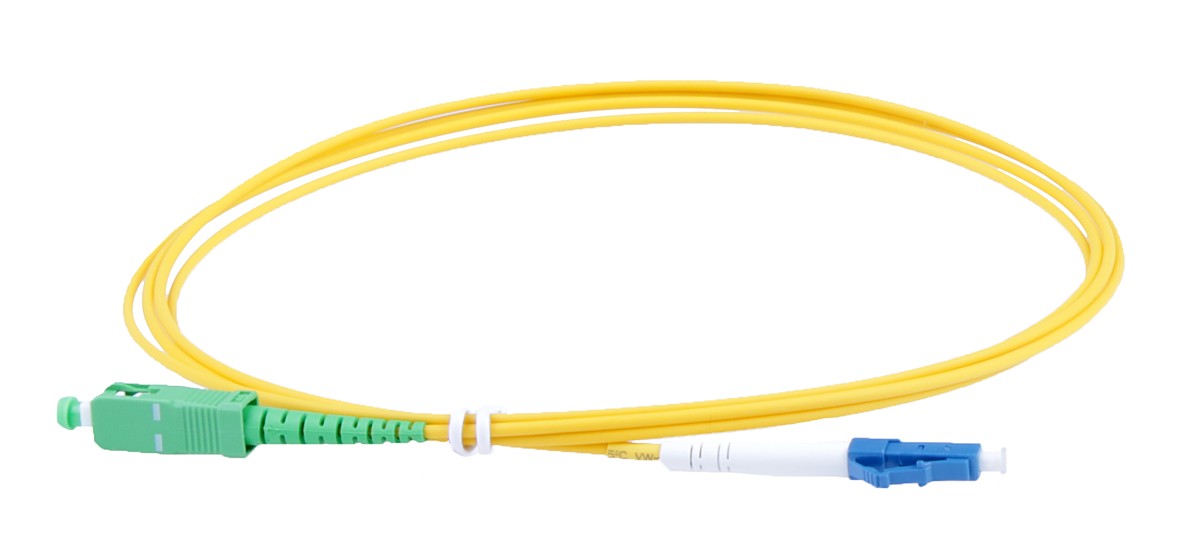

The Masterlan optical patch cord is suitable for connecting active and passive network elements (optical boxes, optical patch panels) or directly connecting of two active devices as switches or routers. Singlemode 9/125um fibers are made from G.657.A2 type and cable is terminated with one LC connector on the first side and one SC connector on the second side. The total cable diameter is 2mm.

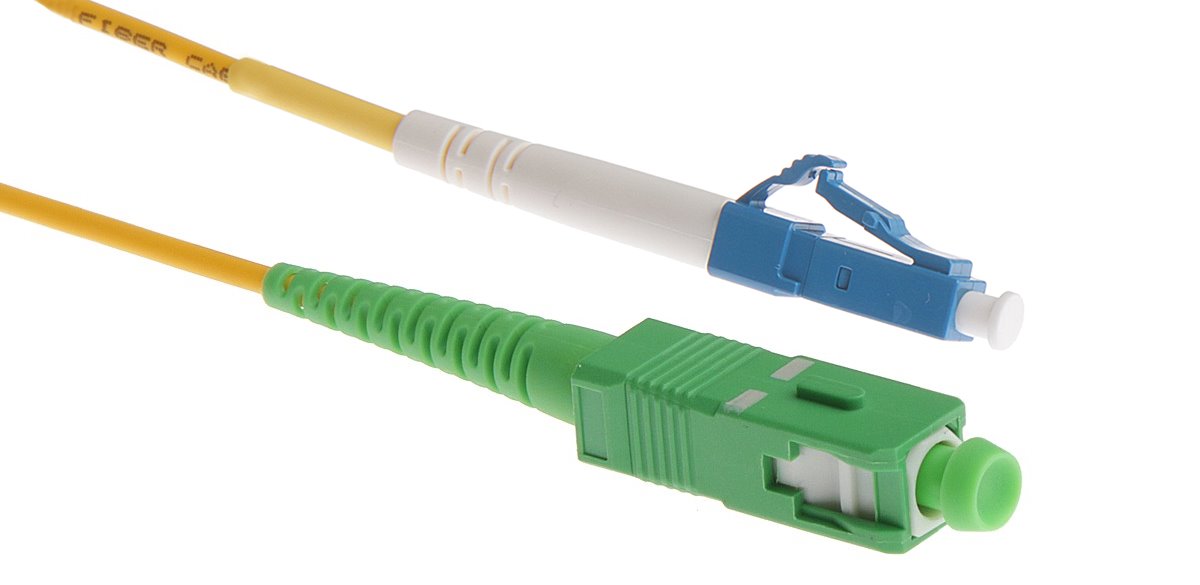

Ferrule of LC connector is made as UPC and ferrule of SC connector is made as APC. Cable cover/sleeve is LSZH (Low Smoke Zero Halogen).
The length of the cable is 1m.
