Masterlan AA-I fiber optic outdoor patch cord, LCupc/LCupc, Duplex, Singlemode 9/125, 20m
Masterlan AA-I fiber optic outdoor patch cord, LCupc/LCupc, Duplex, Singlemode 9/125, 20m
×
0/0
Your price excl. VAT
56.05 EUR
| Your price incl. VAT (21%) | 67.82 EUR |
|---|---|
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Masterlan |
|
|---|---|---|
| Code | 10980902 | |
| Part No. | LCupc/LCupc-SMDAA20outv-I | |
| Warranty | 24 months | |
You have a choice of 4 variantscompare all
LC/LC-DSM-UPC
1.26 EUR excl. VAT
1.52 EUR incl. VAT
In Stock
LC/LC-QSM-UPC
3.66 EUR excl. VAT
4.43 EUR incl. VAT
In Stock
Parameters
GPSR
Technical parameters
Optics
Number of fibers:
2
Fiber type:
Single Mode
Core diameter [µm]:
9/125
Polishing type:
UPC
Connectors and Interfaces
Optical Connectors:
LC - LC
Physical characteristics
Purpose:
Outdoor
Length [m]:
20
Product description

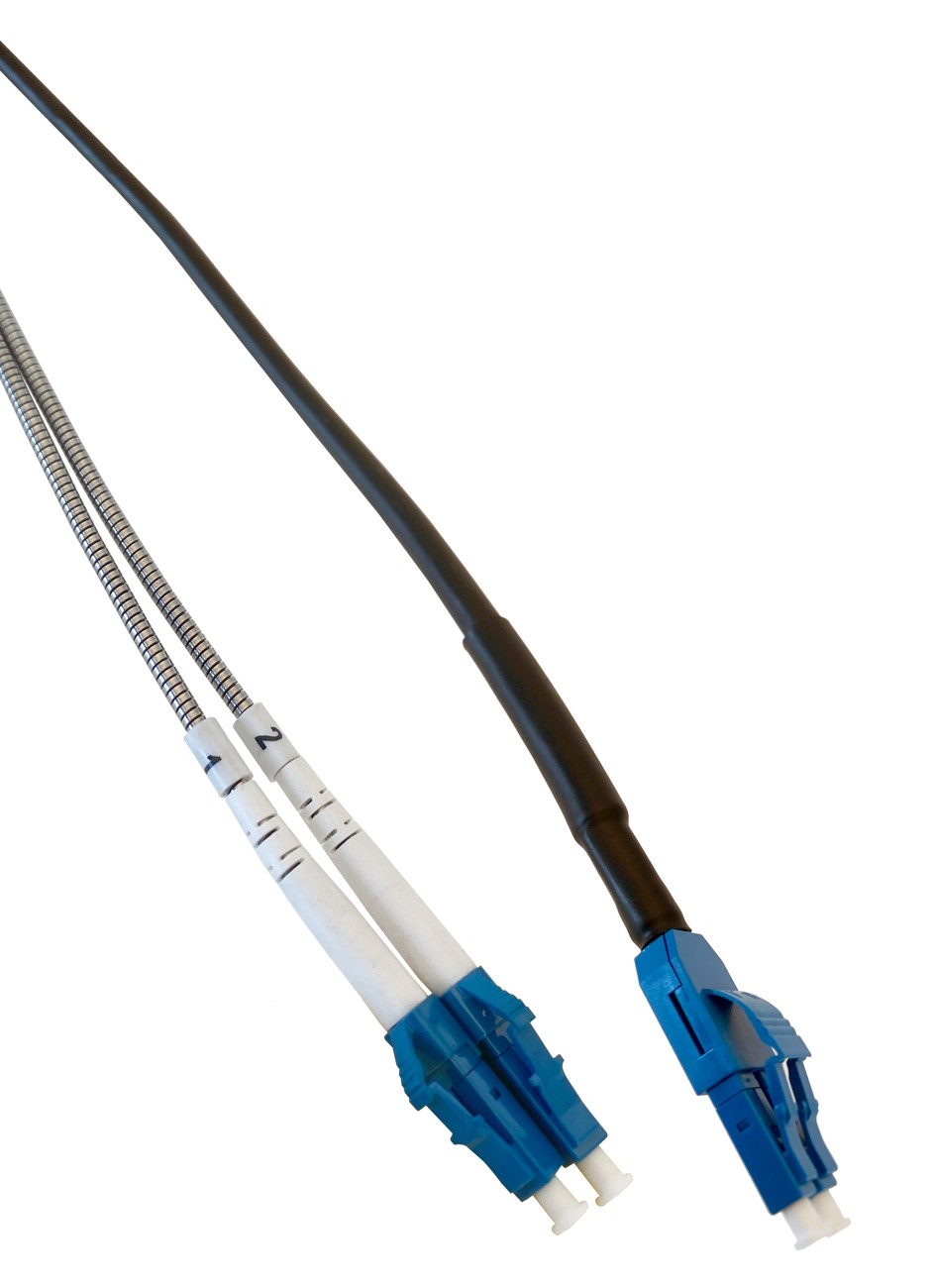

Masterlan optical outdoor patch cord suitable for outdoor installations such as connecting a backhaul unit with an optical port and a data cabinet. The cable sheath is made from high-quality UV resistant material. Inside the cable, there are two aramid tensile elements along with two SM fibers, which are equipped with metal flexible tubes along the entire length to prevent damage during less careful handling. On one side, the PE protection extends to the connector, and the conector cannot be separated. On the opposite side, the end is without PE protection and connector can be separated to ensure greater flexibility. The cable uses singlemode 9/125 fibers of the G.657.A2 type and is terminated with two LC connectors on both sides with UPC polishing.
The total length of the cable is 20m.
