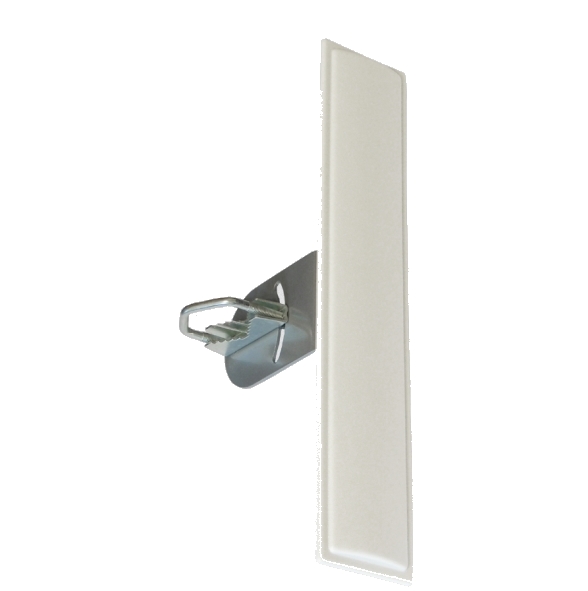

Interline sector antenna 17dBi 5GHz, horizonal, H 60°/V 6°

Interline sector antenna 17dBi 5GHz, horizonal, H 60°/V 6°
Interline sector antenna 17dBi 5GHz, horizonal, H 60°/V 6°
×
0/0
Interline sector antenna 17dBi 5GHz, horizonal, H 60°/V 6°
Interline sector antenna 17dBi 5GHz, horizonal, H 60°/V 6°
Interline sector antenna 17dBi 5GHz, horizonal, H 60°/V 6°
Interline sector antenna 17dBi 5GHz, horizonal, H 60°/V 6°
Sale
-87%
Your price excl. VAT
1.97 EUR
Recycling fee 0.20 EUR
Your price with RF 2.17 EUR
Your price incl. VAT (21%) 2.63 EUR
blank
In Stock
PlzeňIn Stock
Externí sklad EATo order within 48h
Externí sklad EUTo order within 48h
Availability
at our branches
Manufacturer

Interline

Code10210147
Part No.INT-SEC-17/5X-H60
Warranty 24 months
  • Related products4
Self vulcanizing tape SCAPA 25 mm x 10m - Shrink
S2501

6.44 EUR excl. VAT
7.79 EUR incl. VAT
Not in stock
Pigtail Flexi 0,5m - N male / RSMA male
FL-RM-NM-005

7.62 EUR excl. VAT
9.22 EUR incl. VAT
In Stock
RF N male coupler for RSMA female
03-NM-RF

3.79 EUR excl. VAT
4.59 EUR incl. VAT
In Stock
RF N male coupler for N female 90° angle
03-NM-NF-90

4.34 EUR excl. VAT
5.25 EUR incl. VAT
Expected 13.11.2024
Parameters

Product description

The sector antenna is a modern technology microstrip lines. High gain and beam width sufficient allow you to extend coverage. Lacquered aluminum base and cover resistant to UV radiation antenna increases its resistance and ensure the smooth operation of the Intangible.
Key features:
-Small scale zjedušující assembly
-Sector coverage area-multiple users can connect to a single access point
-Lower tilt allows you to select the appropriate coverage with optimal distribution of signal
Specifications

style="background-color: rgb(184,184,184); width: 183px;">Frequency style="background-color: rgb(184,184,184); width: 183px;">Polarization style="background-color: rgb(184,184,184); width: 183px;">Profit style="background-color: rgb(184,184,184); width: 183px;">Beam Angle (H/V) style="background-color: rgb(184,184,184); width: 183px;">Connector style="background-color: rgb(184,184,184); width: 183px;">VF cable length style="background-color: rgb(184,184,184); width: 183px;">VSWR style="background-color: rgb(184,184,184); width: 183px;">Impedance style="background-color: rgb(184,184,184); width: 183px;">Front to back ratio style="background-color: rgb(184,184,184); width: 183px;">Dimensions style="background-color: rgb(184,184,184); width: 183px;">Weight style="background-color: rgb(184,184,184); width: 183px;">mounting kit for mast style="background-color: rgb(184,184,184); width: 183px;">Contents
Parameter Value
5.1 to 5.85 GHz
horizontal
17 dBi
60 °/6 °
N female
-
<1.5
50 ?
>30 db
428 x 85 x 10 mm
0.5 kg
? 38-51 mm
antenna, mount, bushing

Bussines information

Luděk Merta, +420 722 926 224 , ludek.merta@discomp.cz

Technical parameters

Wireless features

MIMO, SISO: 1 x 1
Polarization: Horizontal
VSWR: < 2,0
F/B ratio [dB]: 24
Wireless frequency: 5 GHz
Elevation beam width (-6dB) [°]: 6
Azimuth beam width (-6dB) [°]: 60
Antenna type: Sector
Antenna gain [dBi]: 17

Connectors and Interfaces

RF connectors: (1) N female

Physical characteristics

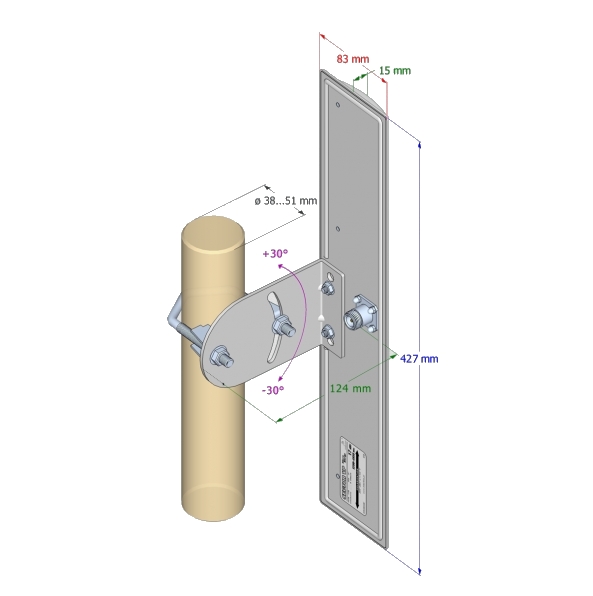

Designed for mast diameter [mm]: 38 up to 51
Wind load [km/h]: 170
Purpose: Outdoor
Material: Aluminum, UV stabilized plastic
Weight [kg]: 0,6
Width [mm]: 83
Height [mm]: 427
Depth [mm]: 15
