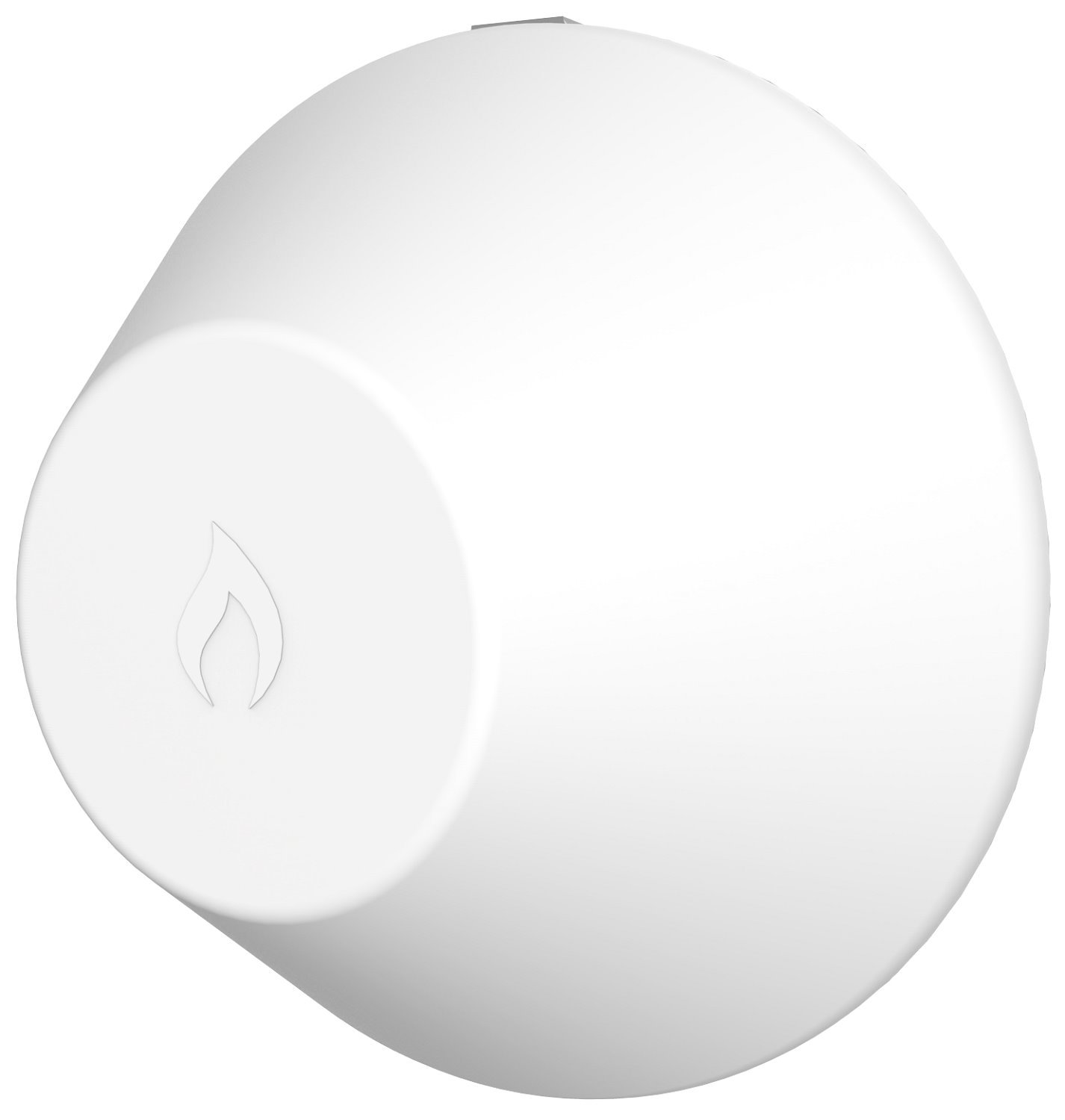

IgniteNet MetroLinq One 60, outdoor unit 60GHz PTP 42dBi + backup 5GHz, 2x22dBi (price per piece), no holder
We are sorry, this product is no longer in our offer.
IgniteNet MetroLinq One 60, outdoor unit 60GHz PTP 42dBi + backup 5GHz, 2x22dBi (price per piece), no holder
×
0/0
Sale
-36%
ICC-BRACKET-LC
22.24 EUR excl. VAT
26.91 EUR incl. VAT
In Stock
ICC-LA-BT
5.59 EUR excl. VAT
6.76 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.45 EUR excl. VAT
4.17 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Wireless features
Sensitivity [dBm]:
-74
Channel bandwidth [MHz]:
2000
Transmission speed - 5GHz [Mb/s]:
866
Transmission speed - 60GHz [Mb/s]:
1000
Output power 60GHz [dBm]:
14
Antenna gain [dBi]:
42
Connectors and Interfaces
LAN speed:
(1) 10/100/1000Mbps
Optical interfaces:
(1) 1000Mbps
Other features:
WiFi management radio
Power
Power over Ethernet:
24 .. 48V DC
Power type:
PoE, DC terminal
Max. power consumption [W]:
17,5
Power via connector/terminal:
24 .. 48V DC
Physical characteristics
Protection class:
IP55
Radom:
Yes
Operating temperature [°C]:
-30 up to 55
Weight [g]:
2800
Width [mm]:
350
Height [mm]:
350
Depth [mm]:
200
Software
Default IP address:
192.168.1.20, Dynamic from DHCP
Default login and password:
root / admin123
Product description
IgniteNet MetroLinq One 60 is the first PTP link of the world with such a excellent price per 1Mbps and the overall throughput 1 Gbit/s Half Duplex. The biggest advantage of MetroLinq One 60 is transferring data in the unlicensed 60GHz band, which is available in most parts of the world. Allowing you to very rapid development and sufficiently enhance connectivity in the last mile to end customers.
Added value of MetroLink One 60 is integrated 5GHz radio part with 802.11a/n/ac support for maximum modulation rate 866Mbps and an integrated antenna with dual polarity 22dBi antenna. 5GHz radio part can be configured as a backup PTP or as an AP or CPE.
Supported distances PTP / PtMP
Package contains
Articles and reviews
Download
CE RF Test report 60GHz Datasheet DoCTechnical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
