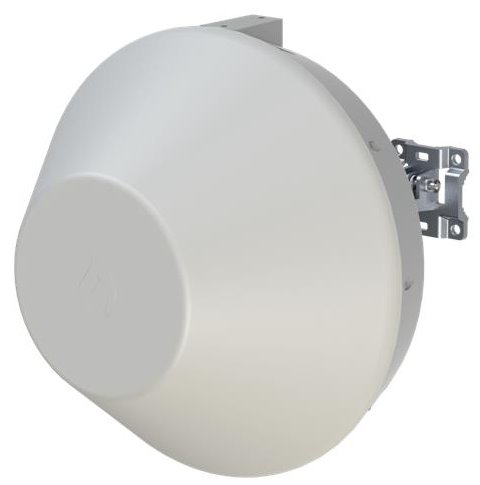

IgniteNet MetroLinq 60, outdoor unit 60GHz PTP 42dBi + backup 5GHz, 2x22dBi (price per piece), no holder
We are sorry, this product is no longer in our offer.
IgniteNet MetroLinq 60, outdoor unit 60GHz PTP 42dBi + backup 5GHz, 2x22dBi (price per piece), no holder
×
0/0
ICC-LA-BT
5.58 EUR excl. VAT
6.75 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Wireless features
Sensitivity [dBm]:
-77
Channel bandwidth [MHz]:
2000
Transmission speed - 5GHz [Mb/s]:
866
Transmission speed - 60GHz [Mb/s]:
1000
Output power 60GHz [dBm]:
14
Elevation beam width (-6dB) [°]:
1
Azimuth beam width (-6dB) [°]:
1
Antenna gain [dBi]:
42
Connectors and Interfaces
LAN speed:
(2) 10/100/1000Mbps
Power
Power over Ethernet:
24V DC
Power type:
PoE
Max. power consumption [W]:
15
Physical characteristics
Radom:
Yes
Operating temperature [°C]:
-40 up to 70
Weight [g]:
3500
Width [mm]:
350
Height [mm]:
350
Depth [mm]:
200
Software
Default IP address:
192.168.1.20, Dynamic from DHCP
Default login and password:
root / admin123
Product description
IgniteNet MetroLinq 60 is the first PTP link of the world with such a excellent price per 1Mbps and the overall throughput 1 Gbit/s Half Duplex. The biggest advantage of MetroLinq 60 is transferring data in the unlicensed 60GHz band, which is available in most parts of the world. Allowing you to very rapid development and sufficiently enhance connectivity in the last mile to end customers.
Added value of MetroLink 60 is integrated 5GHz radio part with 802.11a/n/ac support for maximum modulation rate 866Mbps and an integrated antenna with dual polarity 22dBi antenna. 5GHz radio part can be configured as a backup PTP or as an AP or CPE.
Package contains
Download
CE Datasheet DoC Firmware & utility Link calculator Quick Start GuideTechnical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
