IgniteNet MetroLinq 10G Tri-Band Omni
We are sorry, this product is no longer in our offer.
IgniteNet MetroLinq 10G Tri-Band Omni
×
0/0
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.45 EUR excl. VAT
4.17 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Wireless features
Sensitivity [dBm]:
-74
Channel bandwidth [MHz]:
2000
Transmission speed - 5GHz [Mb/s]:
1733
Transmission speed - 60GHz [Mb/s]:
3x 4600
Output power 60GHz [dBm]:
14
Antenna gain [dBi]:
17
Connectors and Interfaces
LAN speed:
(1) 10/100/1000Mbps
Optical interfaces:
(1) 10Gbps
Power
Power over Ethernet:
48V DC
Power type:
PoE, DC terminal
Power via connector/terminal:
48V DC
Physical characteristics
Operating temperature [°C]:
-30 up to 50
Weight [g]:
4060
Width [mm]:
217
Height [mm]:
455
Depth [mm]:
180
Software
Default IP address:
192.168.1.20, Dynamic from DHCP
Default login and password:
root / admin123
Product description
IgniteNet’s MetroLinq 10G Tri-band Omni is the world’s first cost-effective 60GHz + 5GHz + 2.4GHz PTMP base station enabling high performance, interference-free connections worldwide up to 10Gbps. With a total OTA capacity of 16.393Gbps, the MetroLinq 10G is the first AP capable of providing fiber-like connections to many clients simultaneously. It also has an added advantage of being license-free in most markets, allowing ultra-fast deployment and without the hassle of other frequency bands. The MetroLinq 10G also includes both 2.4 & 5GHz 802.11ac Wave 2 radios which can be used to provide access in harder to reach nLOS applications ranging from hotspots to fixed broadband and many more.
Tri-band flexibility

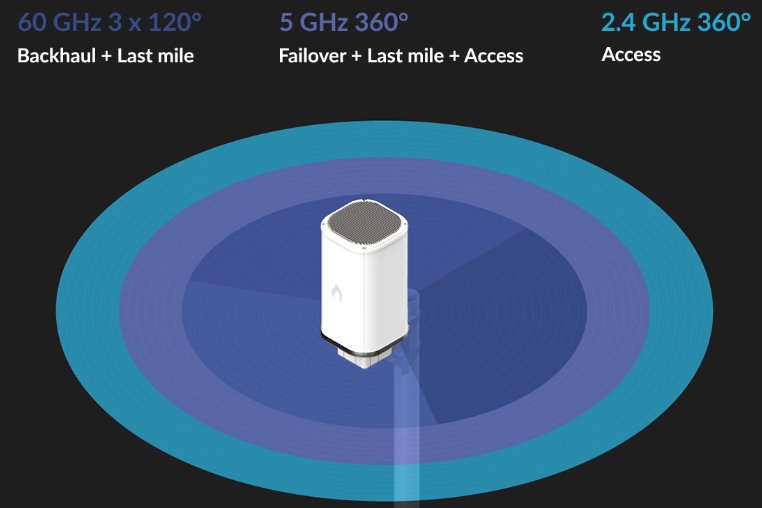

The MetroLinq 10G base station has three 120° 60 GHz beamforming sectors enabling interference-free connections to form network backhaul rings as well as to connect high-capacity 60 GHz fixed wireless broadband clients. There is also a built-in 5 GHz radio with 360° coverage which can be used as a failover for 60 GHz clients, for pure 5 GHz fixed wireless broadband clients, or for access for nearby Wi-Fi clients. Finally, there is a 2.4 GHz radio with 360° coverage which is dedicated for nearby Wi-Fi clients as well.
Interfaces

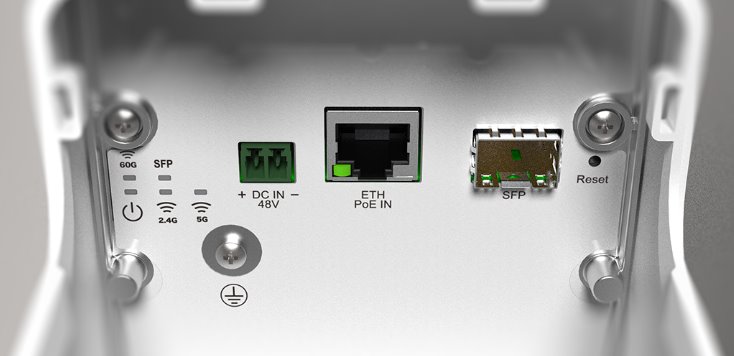

The unit has one Gigabit Ethernet with passive PoE support, SFP+ port for 10Gbps uplink and DC power terminal.
Package contains
