Huawei S310S-24P4J Gigabit PoE switch, 4x 2.5G SFP
Your price excl. VAT
358.64 EUR
Recycling fee | 0.06 EUR |
---|---|
Your price with RF | 358.70 EUR |
Your price incl. VAT (21%) | 434.03 EUR |
blank |
Availability
at our branches
at our branches
Manufacturer |
Huawei |
|
---|---|---|
Code | 10907077 | |
Part No. | S310S-24P4J | |
Warranty | 36 months |
You have a choice of 5 variantscompare all
24x PoE, 4x 2.5G SFP
S310S-24P4J
358.64 EUR
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Connectors and Interfaces
LAN speed:
(24) 10/100/1000Mbps
Optical interfaces:
(4) 1G/2.5Gbps
Power
Power type:
Mains power (230V)
PoE-Out standards:
802.3af, 802.3at
PoE Out ports:
24
PoE budget [W]:
400
Max. power consumption [W]:
482
Power via connector/terminal:
230V AC
Physical characteristics
Design:
Rackmount
Fans:
Yes
Chassis design:
Metal
Buttons:
Reset
Operating temperature [°C]:
-5 up to 45
Width [mm]:
442
Height [mm]:
44
Depth [mm]:
220
General
Switchning capacity [Gbps]:
68
MAC address table:
16000
Packet forwarding rate [Mpps]:
51
Software
Web management:
Yes
Management:
Web management, eKit cloud / eKit app
Features:
L2+
Product description

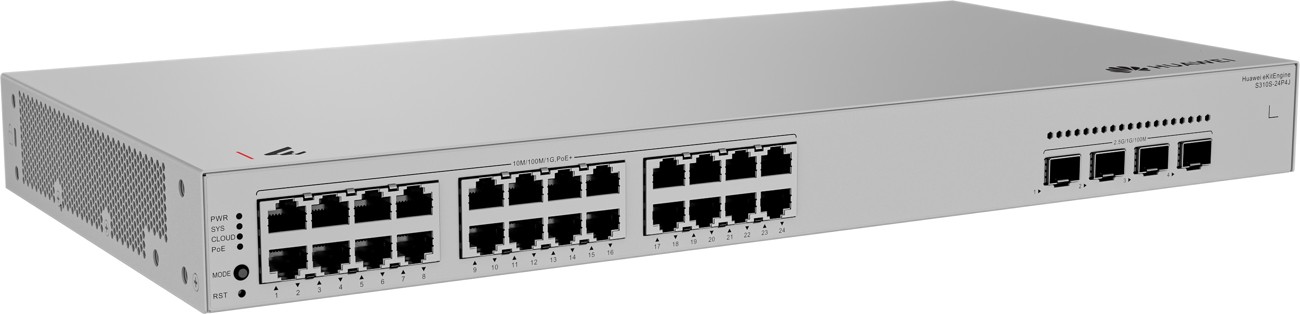

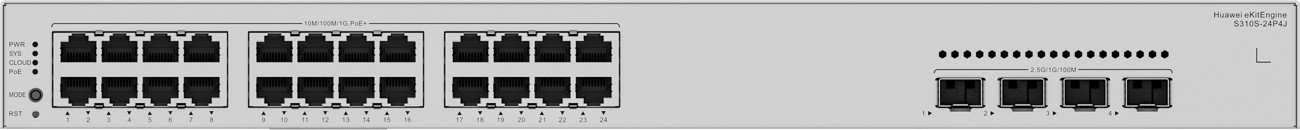

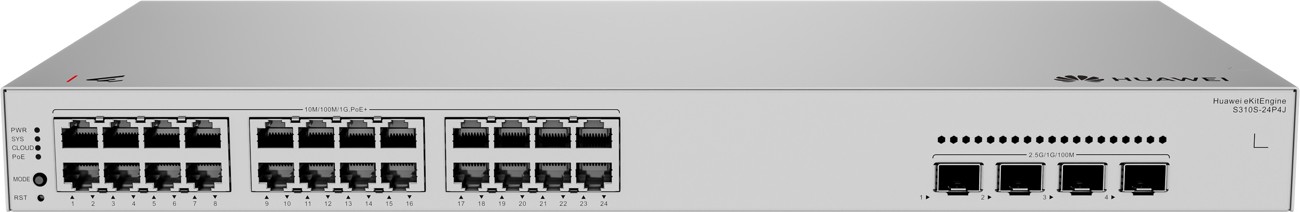

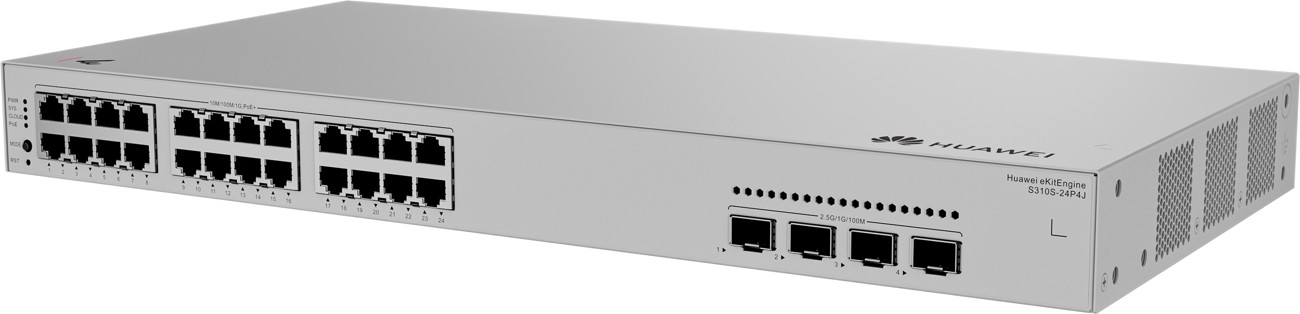

Huawei S310S-24P4J is a manageable L2+ switch equipped with 24x 1Gbit Ethernet with PoE+ support and 4x 2.5G SFP ports. The total PoE budget is 400W, ensuring reliable power for 24 devices under the 802.3af standard or 13 devices under the 802.3at standard with full power consumption. It supports all common L2 functions and additionally offers static routing and a DHCPv4 server. Management is possible through a web interface or via the Huawei eKit cloud service using the web portal or the Huawei eKit App. Thanks to the Huawei Online Upgrade Platform (HOUP), the switch offers one-click automatic updates.
Huawei eKitEngine S310S series switches are fully-managed 1G/10GE switches designed for the SME and SMB market. These switches provide many features, such as These switches feature flexible Ethernet networking, diversified security control, rich management methods, higher performance, and extended service processing capabilities. Therefore, they can be widely used in scenarios such as economic hotels, factories, primary and secondary education, and building security.
Package Contents
