Huawei S110-8P2ST Gigabit PoE switch, 1x SFP
Huawei S110-8P2ST Gigabit PoE switch, 1x SFP
×
0/0
Your price excl. VAT
109.79 EUR
| Recycling fee | 0.06 EUR |
|---|---|
| Your price with RF | 109.85 EUR |
| Your price incl. VAT (21%) | 132.92 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Huawei |
|
|---|---|---|
| Code | 10907008 | |
| Part No. | S110-8P2ST | |
| Warranty | 36 months | |
You have a choice of 3 variantscompare all
8x PoE, 1x SFP, desktop
S110-8P2ST
109.79 EUR
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Connectors and Interfaces
LAN speed:
(9) 10/100/1000Mbps
Optical interfaces:
(1) 1000Mbps
Power
Power type:
DC connector
PoE type:
PoE-Out (only)
PoE-Out standards:
802.3af, 802.3at
PoE Out ports:
8
PoE budget [W]:
124
Max. power consumption [W]:
11
Power via connector/terminal:
56V DC
Physical characteristics
Design:
On the wall, Desktop
Fans:
No
Chassis design:
Metal
Operating temperature [°C]:
0 up to 40
Width [mm]:
270
Height [mm]:
37
Depth [mm]:
132
General
Switchning capacity [Gbps]:
20
MAC address table:
4000
Packet forwarding rate [Mpps]:
14,9
Product description

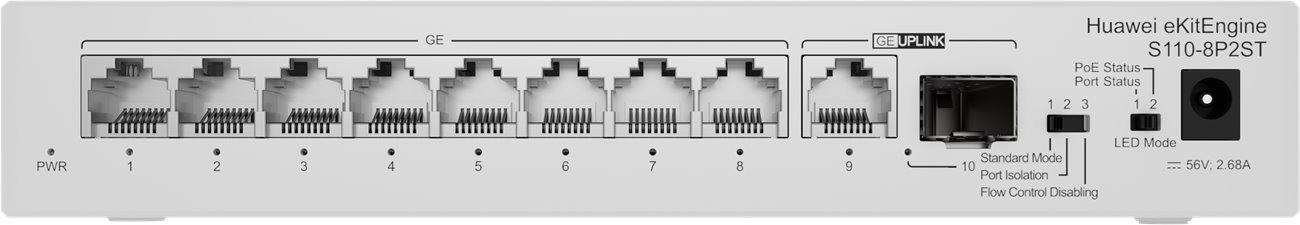

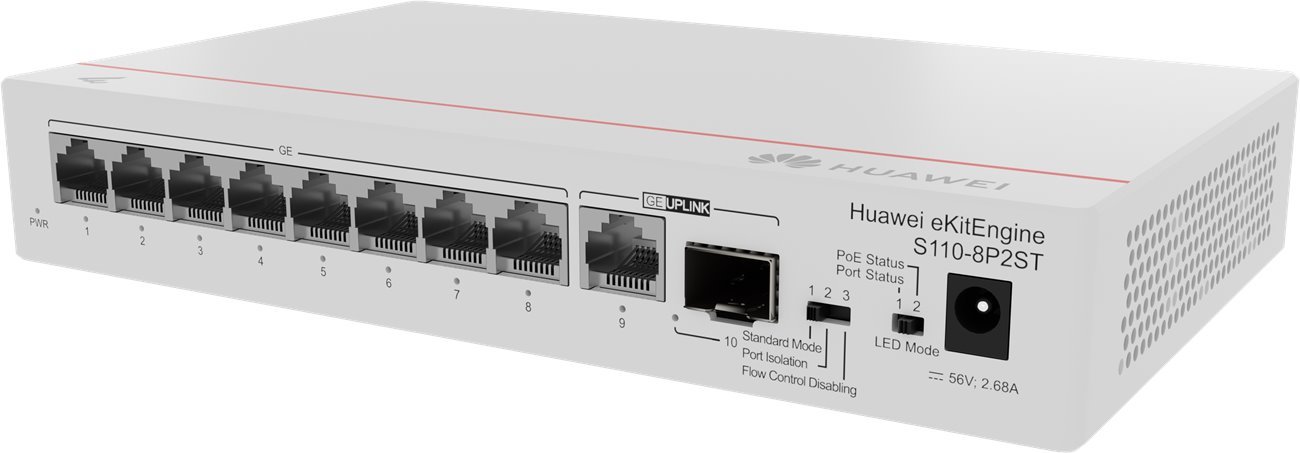

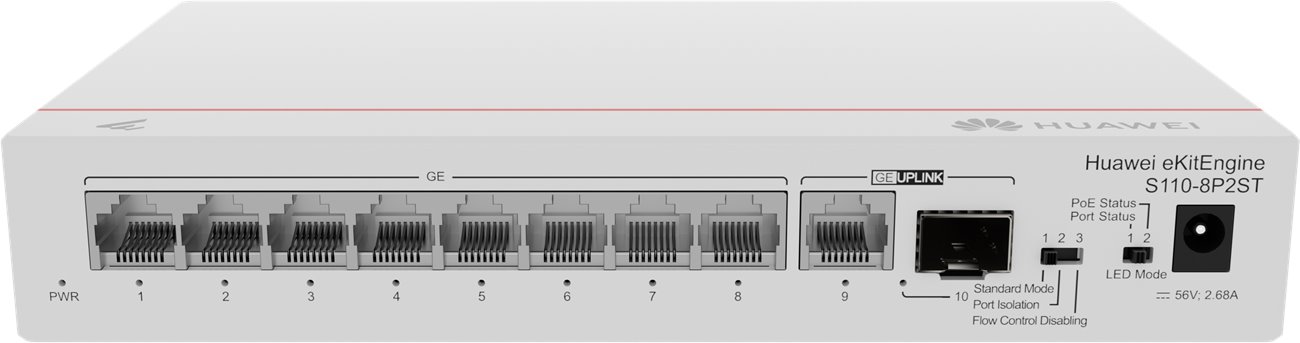

Huawei S110-8P2ST is a PoE switch with active PoE 802.3af/at support with PoE budget of 124W, which is equipped with 8 PoE ports, 1 port without PoE and SFP slot for uplink. Desktop switch without management is in a metal chassis, it is also possible to mount it on the wall. A pair of switches is located on the front. The first one allows you to choose between Standard, Port Isolation and Flow control disabling modes. The second switch is used to switch the state of the LEDs between port and PoE power statuses.
Huawei eKitEngine S110
Huawei eKitEngine S110 series switches (S110 for short) are unmanaged switches designed for the distribution market outside China. The whole series adopts an all-new crystal-like appearance design with great visual impacts, winning itself the German Red Dot Design Award 2022. The newly launched colorways of Silk White and Silver Frost are becoming increasingly popular. In addition, the iconic Huawei logo on eKitEngine S110 series switches gives them a more refreshing look. In terms of aesthetics, a diamond cut design is employed to make the switches more elegant through an integrated and completely seamless surface with sleek corners.Therefore, eKitEngine S110 series switches can be widely used in access scenarios such as SOHO enterprises, and commercial stores.
Package contents
