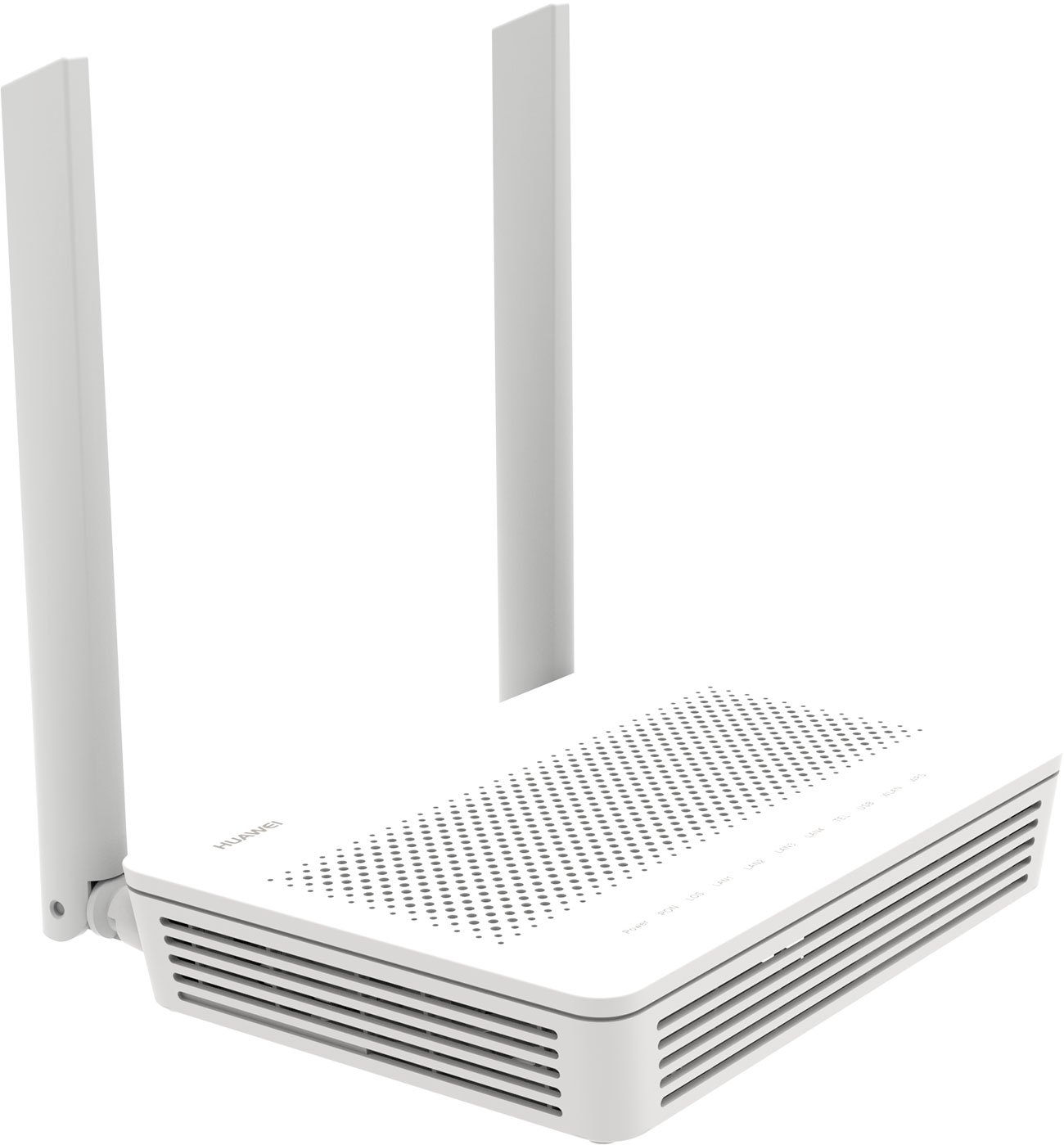

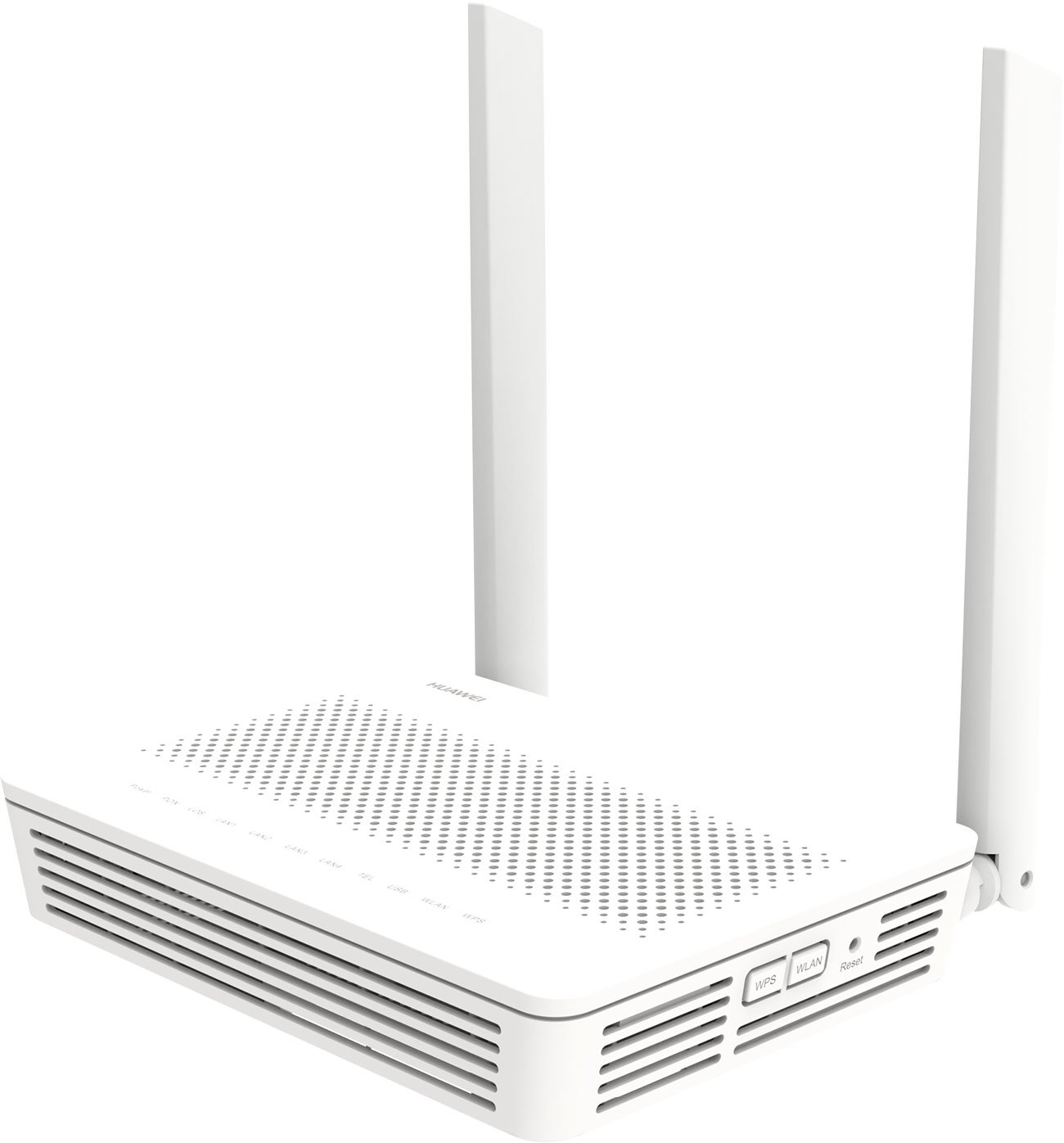

Huawei EchoLife EG8145V5 GPON ONT Gateway, WiFi 5

Huawei EchoLife EG8145V5 GPON ONT Gateway, WiFi 5
Huawei EchoLife EG8145V5 GPON ONT Gateway, WiFi 5
×
0/0
Huawei EchoLife EG8145V5 GPON ONT Gateway, WiFi 5
Huawei EchoLife EG8145V5 GPON ONT Gateway, WiFi 5
Huawei EchoLife EG8145V5 GPON ONT Gateway, WiFi 5
Huawei EchoLife EG8145V5 GPON ONT Gateway, WiFi 5
Huawei EchoLife EG8145V5 GPON ONT Gateway, WiFi 5
Huawei EchoLife EG8145V5 GPON ONT Gateway, WiFi 5
Huawei EchoLife EG8145V5 GPON ONT Gateway, WiFi 5
Huawei EchoLife EG8145V5 GPON ONT Gateway, WiFi 5
Huawei EchoLife EG8145V5 GPON ONT Gateway, WiFi 5
Huawei EchoLife EG8145V5 GPON ONT Gateway, WiFi 5
Huawei EchoLife EG8145V5 GPON ONT Gateway, WiFi 5
Huawei EchoLife EG8145V5 GPON ONT Gateway, WiFi 5

Your price excl. VAT
43.08 EUR
Recycling fee 0.06 EUR
Your price with RF 43.14 EUR
Your price incl. VAT (21%) 52.20 EUR
blank
In Stock
PlzeňIn Stock
Externí sklad EATo order within 48h
Externí sklad EUTo order within 48h
Availability
at our branches
Manufacturer

Huawei

Code10907056
Part No.EG8145V5
Warranty 24 months
You have a choice of 2 variantscompare all
Huawei EchoLife EG8145V5 GPON ONT Gateway, WiFi 5
gateway, WiFi 5
EG8145V5
43.08 EUR
In Stock
Huawei OptiXstar EG8145X6-10 GPON ONT Gateway, WiFi 6
gateway, WiFi 6
EG8145X6-10
53.50 EUR
In Stock
  • Related products2
Masterlan patch cable UTP, Cat5e, 1m, yellow
PCU5E-1YW-MS

0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
Masterlan comfort patch cable UTP, Cat5e, 5m, gray
PCU5E-5-MSC

3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download

Product description

The EchoLife EG8145V5 is a intelligent routing-type Optical Network Terminal (ONT) in Huawei FTTH solution. By using the GPON technology, ultra-broadband access is provided for home users. The EG8145V5 supports 802.11ac dual-frequency bands and features high-performance forwarding capabilities to ensure an excellent experience with voice, Internet, and HD video services. These features make the EG8145V5 a perfect option for broadband access.

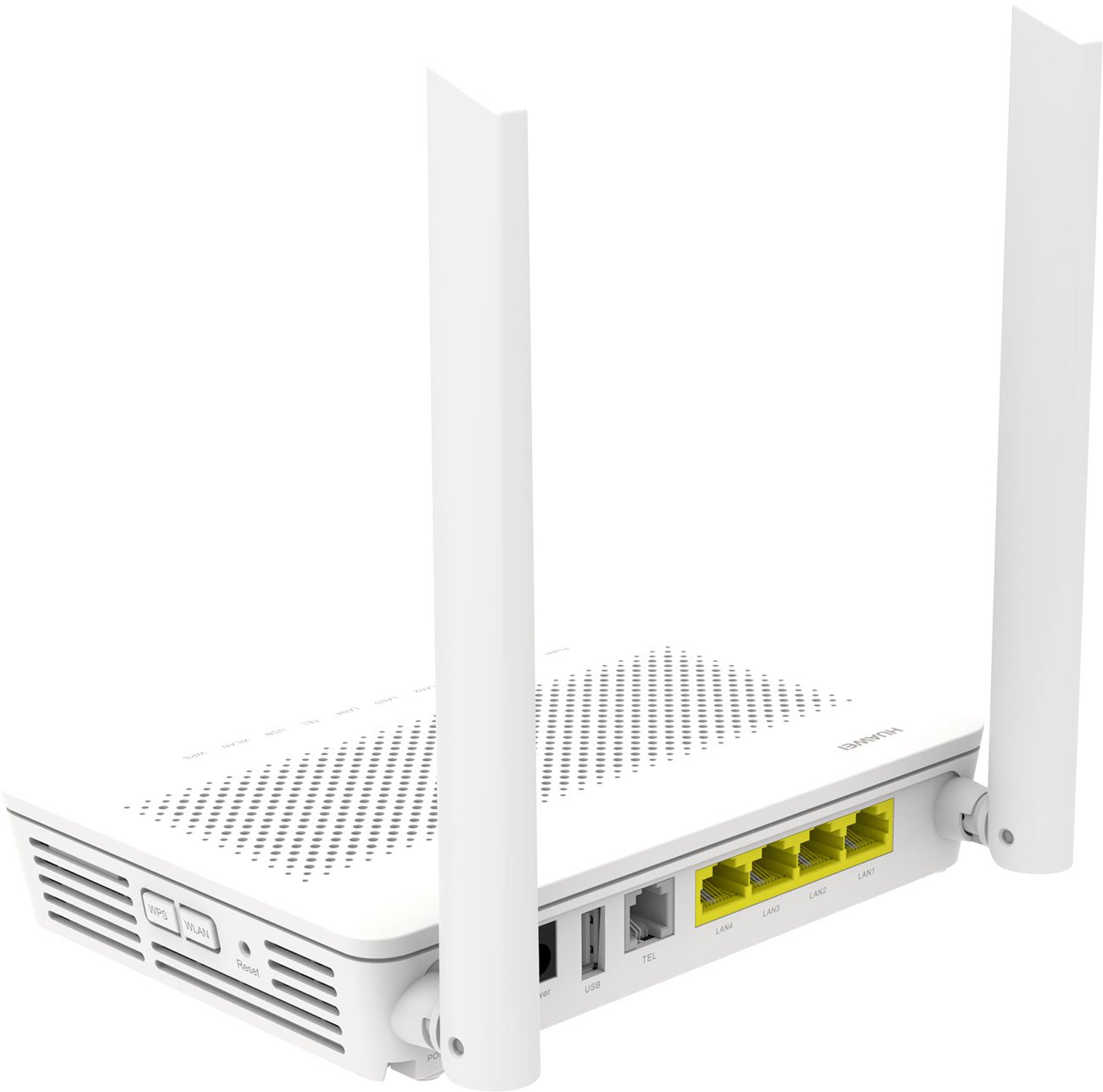

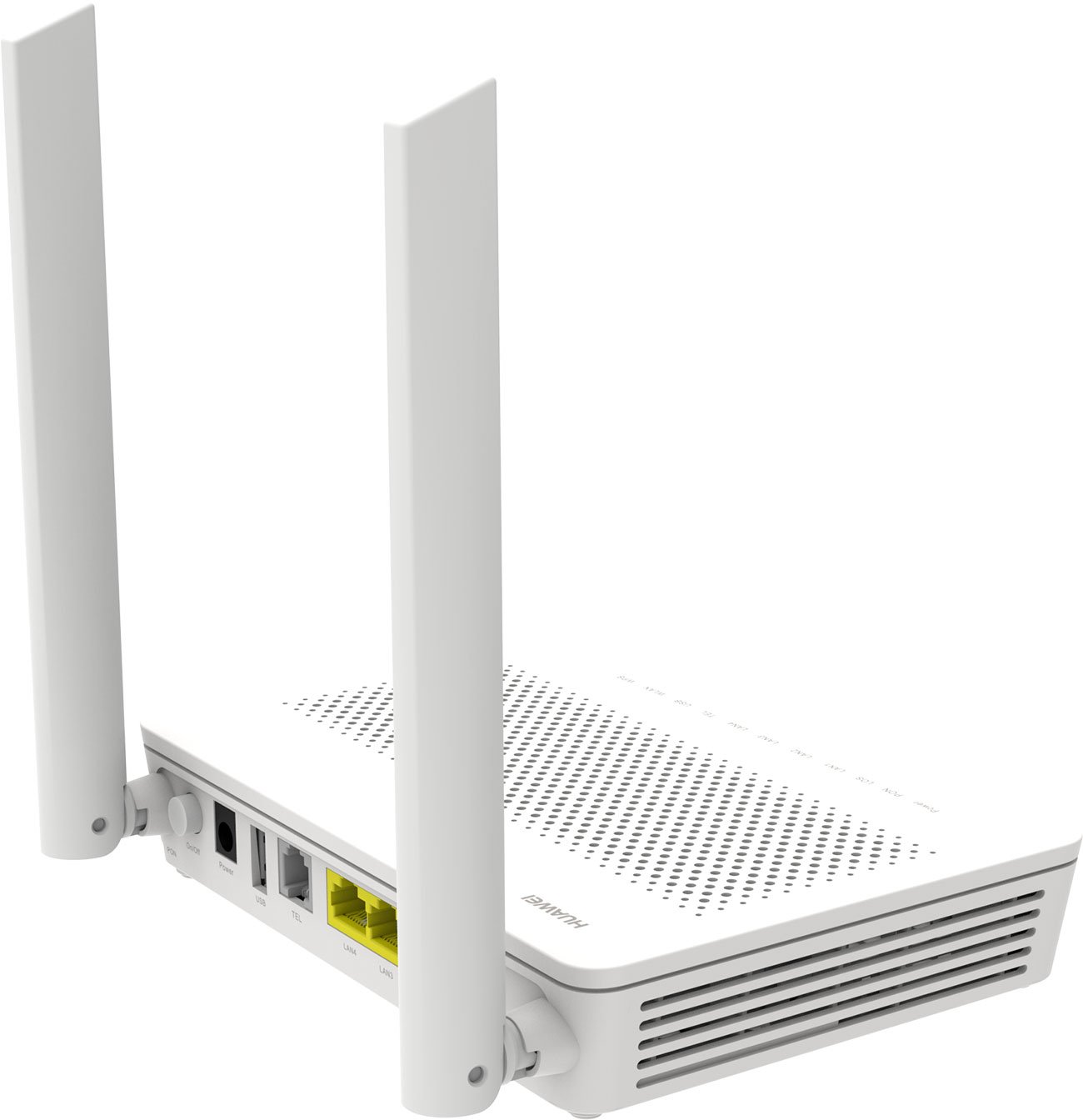

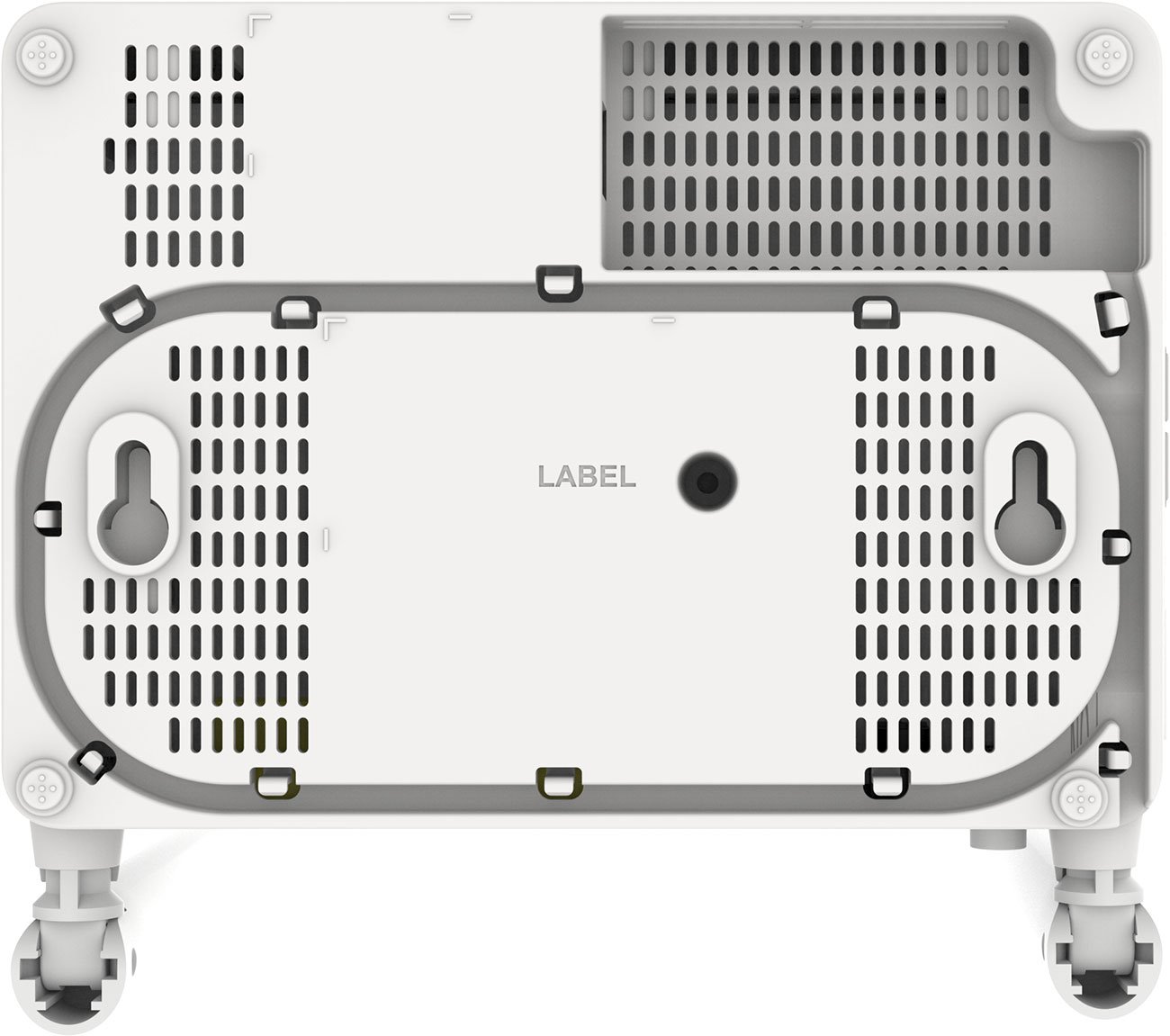

GPON ONT Gateway with WiFi 5 support (802.11a/b/g/n/ac) with max. modulation speed 300/867Mbps. It is equipped with 4x GLAN ports. 1x USB 2.0 (FTP, SAMBA, DLNA support) and 1x POTS port for analog phone line. The GPON port for connecting an optical cable with a SC/APC connector is ingeniously hidden on the bottom of the device.

Device comes from official Czech distribution.

Plug-and-Play

Configurations are automatically delivered by the network management system so on-site commissioning is not required.

Package contents

  • Device
  • DC Power adapter

Download

Datasheet QSG

Bussines information

Dan Pacanda, +420 377 221 177 , dan.pacanda@discomp.cz

Technical parameters

Wireless features

Transmission speed - 5GHz [Mb/s]: 866
Transmission speed - 2.4GHz [Mb/s]: 300
Tx power 2.4GHz [dBm]: 28
Tx power 5GHz [dBm]: 29
2.4GHz MIMO: 2 x 2
5GHz MIMO: 2 x 2
Type of antenna: Fixed
Fixed antennas: 2
Antenna gain [dBi]: 5

Optics

Transmission speed: 2.488 / 1.244 Gbps
Wavelength - Tx/Rx [nm]: 1310 / 1490
Transfer type: GPON
Polishing type: APC

Connectors and Interfaces

Ethernet speed [Mb/s]: 10/100/1000
Optical Connectors: (1) SC
LAN speed: (4) 10/100/1000Mbps
Gigabit LAN: Yes

Power

Max. power consumption [W]: 18
Power via connector/terminal: 11 .. 14V DC

Physical characteristics

Buttons: Reset, WPS, power, WiFi
Operating temperature [°C]: 0 up to 40
Weight [g]: 250
Width [mm]: 173
Height [mm]: 30
Depth [mm]: 120

Software

Default IP address: 192.168.18.1
Default login and password: Epadmin / adminEp
