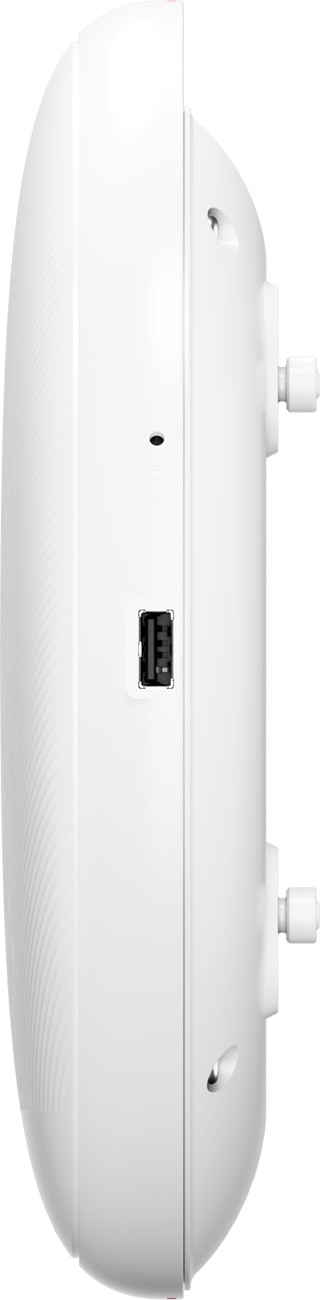

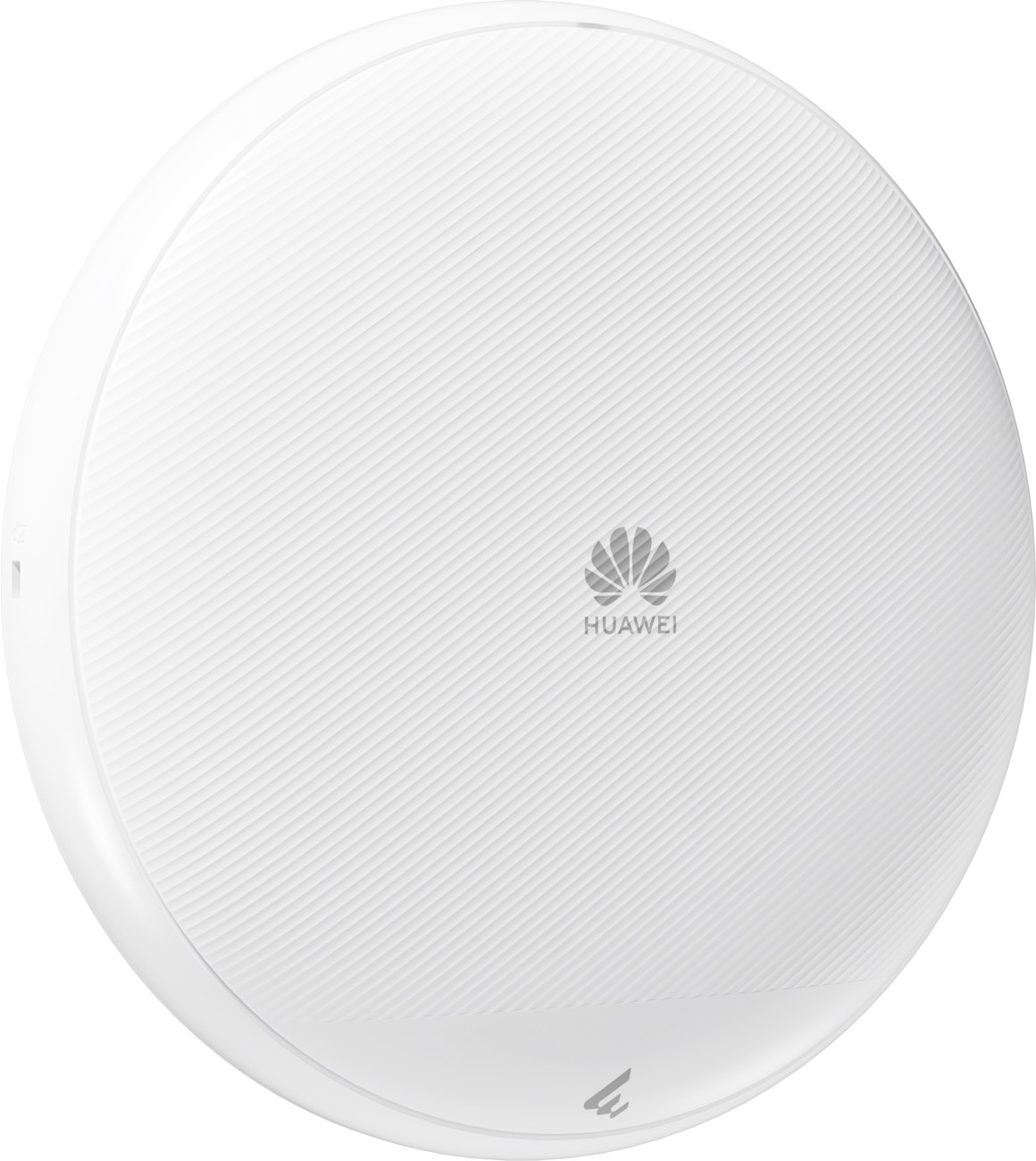

Huawei AP673 - WiFi7 indoor Tri Band AP, smart antenna, USB, BLE
Your price excl. VAT
176.80 EUR
| Recycling fee | 0.06 EUR |
|---|---|
| Your price with RF | 176.86 EUR |
| Your price incl. VAT (21%) | 214.00 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Huawei |
|
|---|---|---|
| Code | 10907068 | |
| Part No. | AP673 | |
| Warranty | 36 months | |
MAXPI30
14.31 EUR excl. VAT
17.40 EUR incl. VAT
Expected 23.1.2025
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Wireless features
Maximum modulation:
4096 QAM
Wireless frequency:
2.4 + 5 + 6 GHz (triple band)
WiFi standards:
802.11n, 802.11a, 802.11ac, 802.11b/g, 802.11ax, 802.11be
MU-MIMO:
Yes
Transmission speed - 5GHz [Mb/s]:
1400
Transmission speed - 2.4GHz [Mb/s]:
688
Transmission speed - 6GHz [Mb/s]:
11520
Tx power 2.4GHz [dBm]:
23
Tx power 5GHz [dBm]:
23
Tx power 6GHz [dBm]:
26
Security:
WPA, WPA2, WPA3
2.4GHz MIMO:
2 x 2
5GHz MIMO:
2 x 2
6GHz MIMO:
4 x 4
Type of antenna:
Built-in
Roaming:
Yes
Antenna gain [dBi]:
4, 5
Connectors and Interfaces
USB ports 3.0:
1
LAN speed:
(1) 100M/1/2.5/5G + (1) 10/100/1000M
Gigabit LAN:
Yes
USB:
Yes
Power
Power over Ethernet:
802.3at
Max. power consumption [W]:
21
Power via connector/terminal:
12V DC
Physical characteristics
Purpose:
Indoor
Buttons:
Reset
Operating temperature [°C]:
-10 up to 50
Weight [g]:
745
Width [mm]:
220
Height [mm]:
45
Depth [mm]:
220
Software
Operating mode:
Access Point
Default IP address:
Dynamic from DHCP
Default login and password:
Is set by the user at the first startup
Product description
Huawei eKitEngine AP673 is a next-generation indoor access point (AP) that complies with the Wi-Fi 7 (802.11be) standard. It supports eight spatial streams on the 2.4 GHz (2x2 MIMO), 5 GHz (2x2 MIMO), and 6 GHz (4x4 MIMO) frequency bands, delivering a data rate of up to 13.66 Gbps!
It has built-in smart antennas, ensuring always-on signals for users. With the all-new Wi-Fi 7 technology, this AP can greatly improve users' wireless network experience. Compact in size, it can be flexibly deployed and saves customer TCO. These strengths make this AP ideal for indoor coverage scenarios such as small and midsize enterprise office, hospitals, and shopping malls and supermarkets.
You can use the EasyWeb or wireless access controller (WAC) to locally deploy and manage APs, or use the HUAWEI eKit App & SNC platform to remotely manage and maintain APs. In this way, network projects can be handed over or managed together, simplifying network O&M.
Wi-Fi 7 (802.11be) Standard
Wi-Fi 7 (802.11be) - also known as IEEE 802.11be Extremely High Throughput (EHT) - is the latest upcoming Wi-Fi standard. Based on Wi-Fi 6, Wi-Fi 7 introduces technologies such as 320 MHz bandwidth, 4096-quadrature amplitude modulation (4096-QAM), multiple resource unit (MRU), multi-link operation (MLO), enhanced multi-user multiple-input multiple-output (MU-MIMO), and multi-AP coordination. In this way, Wi-Fi 7 delivers a higher data transmission rate and a lower latency than Wi-Fi 6.
High-Speed Tri-Band Access
The AP supports 320 MHz frequency bandwidth on the 6 GHz frequency band, which increases the number of available data subcarriers and expands transmission channels. In addition, the AP adopts 4096-QAM and MU-MIMO to achieve a rate of up to 0.69 Gbps on the 2.4 GHz band, 1.44 Gbps on the 5 GHz band, and 11.53 Gbps on the 6 GHz band, meaning up to 13.66 Gbps for the device.
Smart Antenna
The dual-band smart antenna array technology and intelligent switchover algorithm enable the AP to intelligently sense the application environment and access density, achieving accurate Wi-Fi coverage and interference suppression. They together provide the optimal coverage direction and signal quality for each access station (STA), and offer seamless and smooth wireless network experience to users.
