Huawei 1.25G SFP optical transceiver, MM, 850nm, 0,55km, 2x LC konektor, DDM
Huawei 1.25G SFP optical transceiver, MM, 850nm, 0,55km, 2x LC konektor, DDM
×
0/0
Parameters
Technical parameters
Optics
Format:
SFP
For cable type:
Multi Mode
Transmission speed:
1 Gbps
Wavelength - Tx/Rx [nm]:
850
Distance [km]:
0,55
Transfer type:
2-fiber
Polishing type:
UPC
Tx power [dBm]:
-9 up to -2,5
Receiver sensitivity [dBm]:
-17
Connectors and Interfaces
Optical Connectors:
(2) LC
Physical characteristics
Operating temperature [°C]:
-20 up to 85
General
Compatibility:
Universal
Software
DDMI - diagnostics:
Yes
Product description

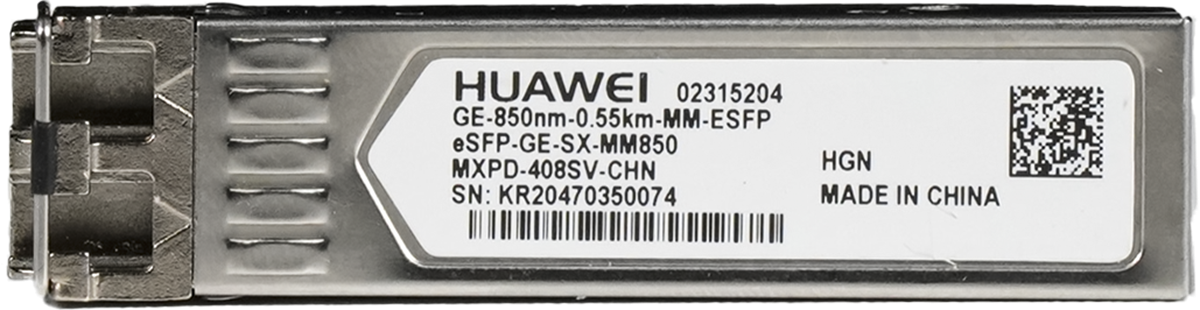

The Huawei eSFP-GE-SX-MM850 is a multi-mode 1.25G SFP module with a wavelength of 850nm and two LC connectors for connections up to a distance of 0,55km.
The LC connectors in the SFP module have UPC polishing.
