Hikvision NVR DS-7732NI-I4/16P(B), 32 channels, 4x HDD
We are sorry, this product is no longer in our offer.
Hikvision NVR DS-7732NI-I4/16P(B), 32 channels, 4x HDD
×
0/0
19" 1.5U 440-445 MOUNTING BRACKET
Price after login
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.43 EUR excl. VAT
4.15 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Max. recording resolution:
12MP
Connectors and Interfaces
USB ports 3.0:
1
Number of Sata connectors:
4
VGA connector:
Yes
HDMI interface (resolution) [pixels]:
3840 x 2160
Audio:
Yes
Alarm:
Yes
LAN speed:
(16) 10/100Mbps + (1) 10/100/1000Mbps
USB ports 2.0:
2
HDMI interface:
Yes
Power
PoE-Out standards:
802.3af, 802.3at
PoE Out ports:
16
PoE budget [W]:
200
Max. power consumption [W]:
20
Power via connector/terminal:
230V AC
Physical characteristics
Design:
Rackmount
"U" positions:
1,5
Operating temperature [°C]:
-10 up to 55
Weight [g]:
5000
Width [mm]:
445
Height [mm]:
70
Depth [mm]:
390
Hardware
Number of supported IP cameras:
32
Number of supported HDD:
4
Supported HDD capacity [TB]:
6
Incoming bandwidth [Mb/s]:
256
Outgoing bandwidth [Mb/s]:
256
Compression standard
Video compression:
H.264, H.265, MPEG4
General
Camera class:
Standard Hikvision
Product description

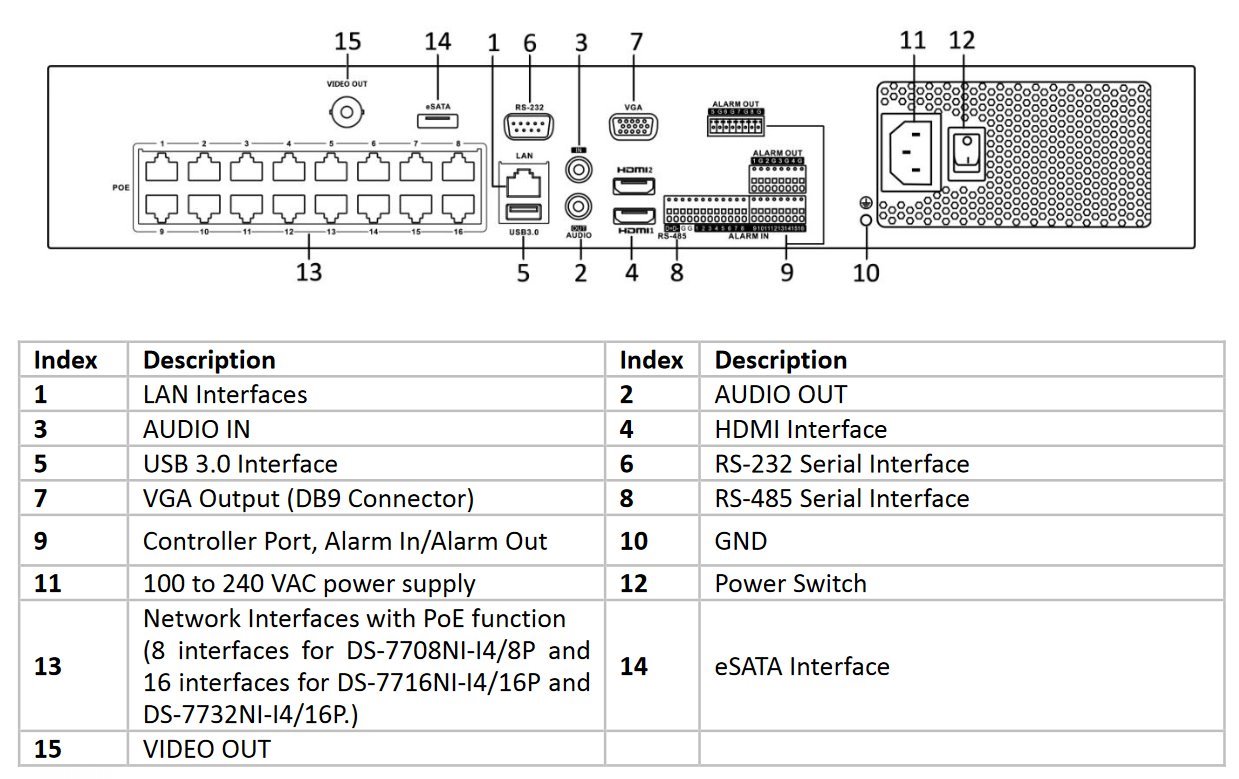

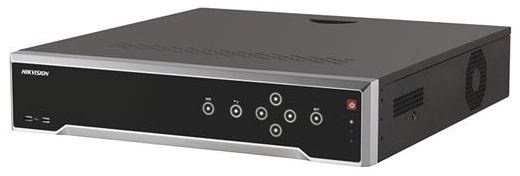

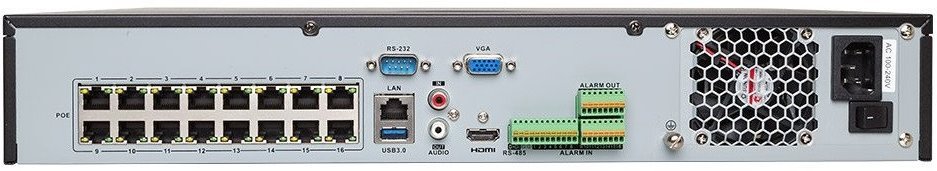

DS-7732NI-I4/16P(B) NVR device for recording up to 32 IP cameras. It can record camera recordings in a maximum resolution of up to 12Mpx .The recorder is equipped with 16 POE ports 10/100Mbps and one Gigabit LAN port for network connection. There are 3 USB ports (2x USB 2.0, 1x USB 3.0) to connect the keyboard, mouse or external HDD, alarm and audio inputs / outputs. The NVR can be mounted in a 19 "rack where it occupies 1,5U.
The video output can be viewed directly by HDMI in 4k resolution or by VGA connector. The maximum power consumption of the recorder iwithout a HDD is 20W.
