Hikvision NVR DS-7616NXI-I2/4S, 16 channels, 2x HDD, AcuSense
We are sorry, this product is no longer in our offer.
Hikvision NVR DS-7616NXI-I2/4S, 16 channels, 2x HDD, AcuSense
×
0/0
19" 1U 380 MOUNTING BRACKET
Price after login
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.43 EUR excl. VAT
4.15 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Max. recording resolution:
12MP
Connectors and Interfaces
USB ports 3.0:
1
Number of Sata connectors:
2
VGA connector:
Yes
HDMI interface (resolution) [pixels]:
3840 x 2160
Audio:
Yes
Alarm:
Yes
LAN speed:
(1) 10/100/1000Mbps
USB ports 2.0:
1
HDMI interface:
Yes
Power
Max. power consumption [W]:
15
Power via connector/terminal:
12V DC
Physical characteristics
Design:
Rackmount
"U" positions:
1
Operating temperature [°C]:
-10 up to 55
Weight [g]:
3000
Width [mm]:
380
Height [mm]:
51
Depth [mm]:
315
Hardware
Number of supported IP cameras:
16
Number of supported HDD:
2
Supported HDD capacity [TB]:
8
Incoming bandwidth [Mb/s]:
160
Outgoing bandwidth [Mb/s]:
256
Compression standard
Video compression:
H.264, H.265, MPEG4
General
Camera class:
Standard Hikvision
Technology and conveniences:
AcuSense
Product description

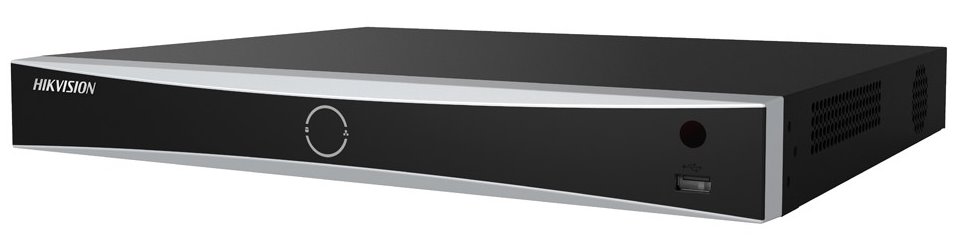

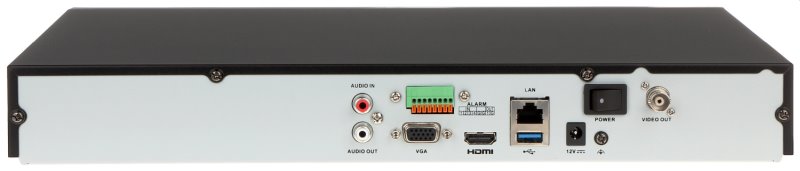

DS-7616NXI-I2/4S NVR device for recording up to 16 IP cameras. It can record camera recordings in a maximum resolution of up to 12Mpx . You can connect the device to the network by one Gigabit LAN port. There are 2 USB ports (1x USB 2.0, 1x USB 3.0) to connect the keyboard, mouse or external HDD, alarm and audio inputs / outputs. The NVR can be mounted in a 19 "rack where it occupies 1U.
The video output can be viewed directly by HDMI in 4k resolution or by VGA connector. The maximum power consumption of the recorder without a HDD is 15 W.
AcuSense Technology
