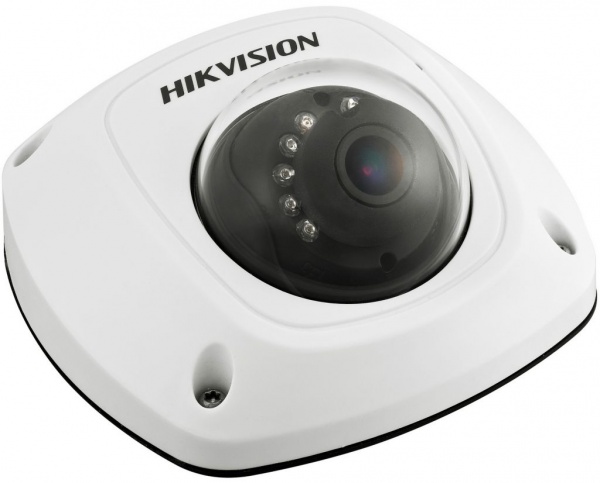

Hikvision IP mini dome camera DS-2CD2542FWD-I/28, 4MP, 2688×1520, 20fps, 10m IR, IRcut, WDR, IP66, obj. 2.8mm, SD, PoE
We are sorry, this product is no longer in our offer.
Hikvision IP mini dome camera DS-2CD2542FWD-I/28, 4MP, 2688×1520, 20fps, 10m IR, IRcut, WDR, IP66, obj. 2.8mm, SD, PoE
×
0/0
PCU5E-1YW-MS
0.61 EUR excl. VAT
0.74 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.69 EUR excl. VAT
4.46 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Camera
WDR:
Optical WDR (up to 120dB)
Lens type:
Fixed
Lens [mm]:
2,8 (fixed)
Illumination:
IR
Illumination range [m]:
10
Viewing Angle [°]:
106
Day/night mode:
IR cut filter
Minimum illumination [Lux]:
0,01
Image sensor ["]:
1/3
Resolution:
4MP
Max. resolution [pixels]:
2688 x 1520
Connectors and Interfaces
Slot for Memory Card:
microSD - up to 128GB
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
802.3af
Power type:
DC connector, PoE
Max. power consumption [W]:
5
Power via connector/terminal:
12V DC
Physical characteristics
Protection class:
IP67
Purpose:
Outdoor
Antivandal (Impact protection):
IK8
Buttons:
Reset
Operating temperature [°C]:
-30 up to 60
Weight [g]:
600
Width [mm]:
99
Height [mm]:
53
Depth [mm]:
97
Compression standard
Bit rate:
32Kbps ~ 16Mbps
Number of streams:
2
Video compression:
H.264, MJPEG
Software
Default IP address:
192.168.1.64
Default login and password:
admin / -
Product description
Hikvision IP mini dome kamera - DS-2CD2542FWD-I/28, 4MP, 2688×1520, 20fps, 10m IR, IRcut, WDR, IP66, obj. 2.8mm, SD, PoE
4MPx, WDR, SD slot, přísvit na 10m, mini rozmery - vhodne pro nenapadne montaze, IK10 - antivandal uprava.
Download
Datasheet Firmware a jinéGPSR
