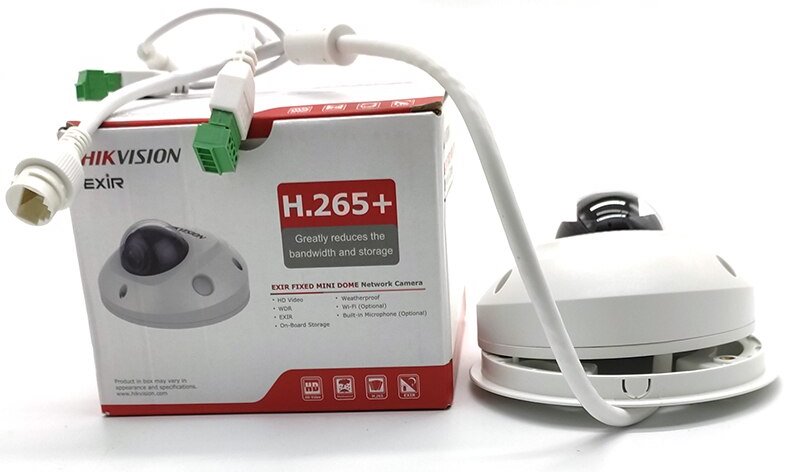

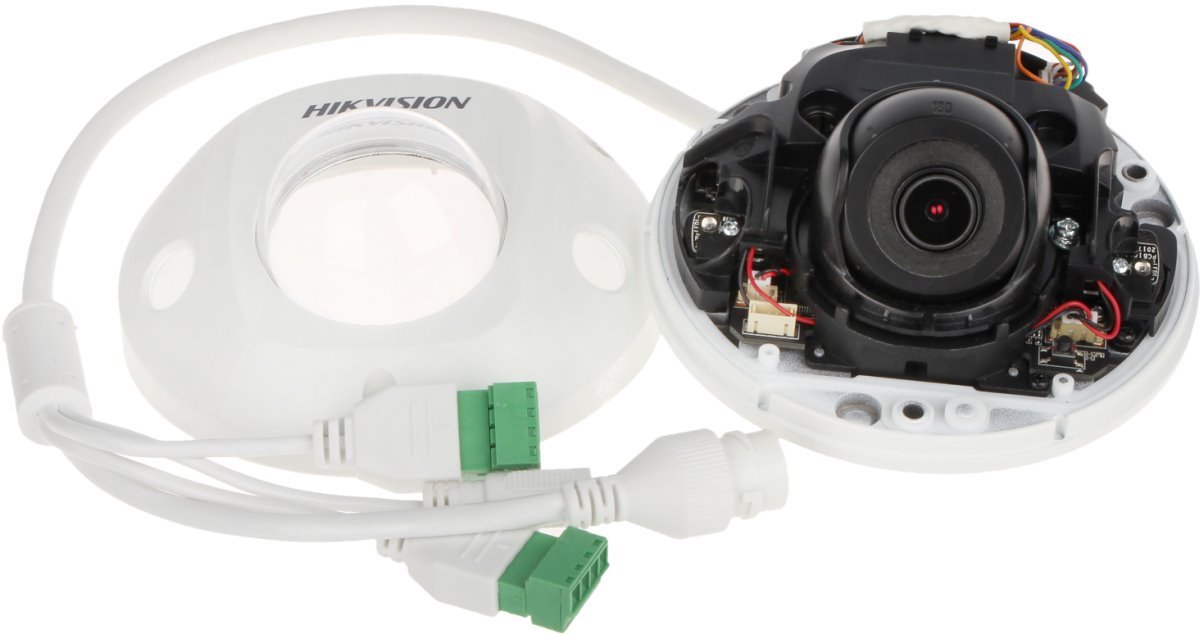

Hikvision IP mini dome camera DS-2CD2543G0-I/4, 4MP, 4mm
Hikvision IP mini dome camera DS-2CD2543G0-I/4, 4MP, 4mm
×
0/0
Your price excl. VAT
| Manufacturer |
Hikvision |
|
|---|---|---|
| Code | 10901949 | |
| Part No. | DS-2CD2543G0-I(4mm) | |
| Warranty | 36 months | |
You have a choice of 2 variantscompare all
4mm
DS-2CD2543G0-I(4mm)
Price after login
DS-1272ZJ-120
Price after login
In Stock
DS-1280ZJ-DM46
Price after login
In Stock
DS-1250ZJ
Price after login
To order within 48h
M9905
1.44 EUR excl. VAT
1.74 EUR incl. VAT
In Stock
SDCS2/128GB
13.04 EUR excl. VAT
15.80 EUR incl. VAT
To order within 48h
SDCE/128GB
19.21 EUR excl. VAT
23.27 EUR incl. VAT
To order within 48h
SDCS2/64GB
8.42 EUR excl. VAT
10.21 EUR incl. VAT
In Stock
SDCE/64GB
14.88 EUR excl. VAT
18.03 EUR incl. VAT
To order within 48h
SDCS2/64GBSP
8.22 EUR excl. VAT
9.97 EUR incl. VAT
To order within 48h
SDCS2/32GB
5.46 EUR excl. VAT
6.63 EUR incl. VAT
To order within 48h
SDCE/32GB
10.91 EUR excl. VAT
13.23 EUR incl. VAT
In Stock
MAXPI15
12.31 EUR excl. VAT
14.98 EUR incl. VAT
In Stock
MAXPI15S
9.55 EUR excl. VAT
11.64 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.61 EUR excl. VAT
0.74 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.69 EUR excl. VAT
4.46 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Camera
WDR:
Optical WDR (up to 120dB)
Lens type:
Fixed
Lens [mm]:
4 (fixed)
Illumination:
IR
Illumination range [m]:
10
Viewing Angle [°]:
78
Day/night mode:
IR cut filter
Minimum illumination [Lux]:
0,01
Image sensor ["]:
1/3
Resolution:
4MP
Max. resolution [pixels]:
2688 x 1520
Connectors and Interfaces
Slot for Memory Card:
microSD - up to 128GB
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
802.3af
Power type:
PoE, DC connector
Max. power consumption [W]:
10
Power via connector/terminal:
12V DC
Physical characteristics
Protection class:
IP66
Purpose:
Outdoor
Antivandal (Impact protection):
IK8
Operating temperature [°C]:
-30 up to 60
Weight [g]:
400
Width [mm]:
110
Height [mm]:
56
Depth [mm]:
110
Color:
White
Compression standard
Bit rate:
256Kbps ~ 16Mbps
Number of streams:
3
Video compression:
MJPEG, H.264, H.265
General
Camera class:
Standard Hikvision
Software
Default IP address:
192.168.1.64
Default login and password:
Is set by the user at the first startup
Product description
IP cams G0 series

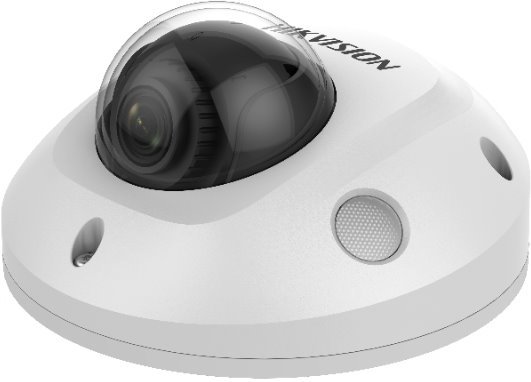

DS-2CD2543G0-I/4 is 4Mpx outdoor mini dome Hikvision IP camera with fixed lens 4mm (78°) and IR range up to 10m.
What is new
3 independent streams, microSD slot for up to 128GB cards, support H264+/H265+ codecs
Max. consumption is 10W with active IR and it is possible to power it over DC connector (12VDC) or over 802.3af POE.
