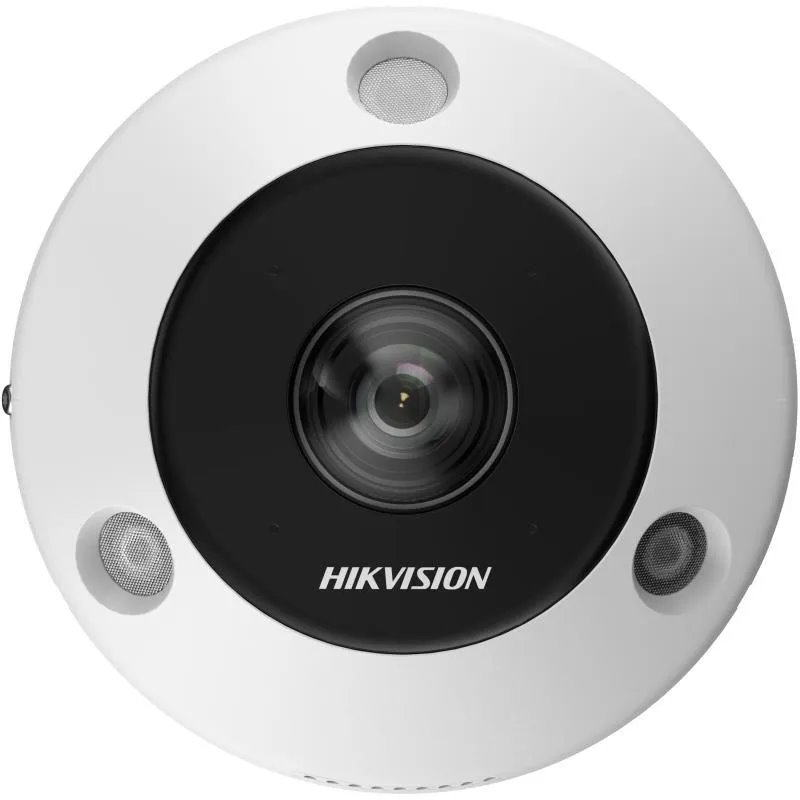

Hikvision IP fisheye camera DS-2CD63C5G1-IVS(1.29mm), 12MP, 1.29mm, IR 15m, Alarm, Audio
Hikvision IP fisheye camera DS-2CD63C5G1-IVS(1.29mm), 12MP, 1.29mm, IR 15m, Alarm, Audio
×
0/0
Your price excl. VAT
| Manufacturer |
Hikvision |
|
|---|---|---|
| Code | 10980704 | |
| Part No. | DS-2CD63C5G1-IVS(1.29mm) | |
| Warranty | 36 months | |
M9905
1.42 EUR excl. VAT
1.72 EUR incl. VAT
In Stock
SDCS2/256GB
20.75 EUR excl. VAT
25.13 EUR incl. VAT
To order within 48h
DS-1271ZJ-140
Price after login
In Stock
SDCE/256GB
25.35 EUR excl. VAT
30.70 EUR incl. VAT
In Stock
SDCS2/128GB
11.98 EUR excl. VAT
14.52 EUR incl. VAT
In Stock
SDCE/128GB
19.80 EUR excl. VAT
23.98 EUR incl. VAT
In Stock
SDCS2/64GB
7.93 EUR excl. VAT
9.62 EUR incl. VAT
In Stock
SDCE/64GB
14.20 EUR excl. VAT
17.21 EUR incl. VAT
In Stock
SDCS2/64GBSP
7.70 EUR excl. VAT
9.34 EUR incl. VAT
To order within 48h
SDCS2/32GB
6.55 EUR excl. VAT
7.95 EUR incl. VAT
In Stock
SDCE/32GB
11.51 EUR excl. VAT
13.95 EUR incl. VAT
In Stock
DS-2FP2020
Price after login
In Stock
MAXPI30
14.36 EUR excl. VAT
17.46 EUR incl. VAT
Expected 12.2.2025
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.45 EUR excl. VAT
4.17 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Camera
WDR:
Digital
Lens type:
Fixed
Lens [mm]:
1,29 (fixed)
Illumination:
IR
Illumination range [m]:
15
Viewing Angle [°]:
360
Day/night mode:
IR cut filter
Heating:
Yes
Minimum illumination [Lux]:
0,03
Image sensor ["]:
1/1.8
Resolution:
12MP
Max. resolution [pixels]:
3504 x 3504
Connectors and Interfaces
Slot for Memory Card:
microSD - up to 256GB
Audio:
1 input, 1 output, Microphone, Speaker
Alarm:
Yes
LAN speed:
(1) 10/100/1000Mbps
Serial port:
RS-485
Power
Power over Ethernet:
802.3af
Power type:
PoE, DC connector
Max. power consumption [W]:
12,5
Power via connector/terminal:
12V DC
Physical characteristics
Protection class:
IP67
Purpose:
Outdoor
Antivandal (Impact protection):
IK10
Buttons:
Reset
Operating temperature [°C]:
-40 up to 60
Weight [g]:
715
Width [mm]:
140
Height [mm]:
59
Depth [mm]:
140
Color:
White
Compression standard
Bit rate:
32Kbps ~ 16Mbps
Number of streams:
2
Video compression:
H.264, H.265, MJPEG
General
Camera class:
Profi Hikvision
Software
Default IP address:
192.168.1.64
Default login and password:
Is set by the user at the first startup
Product description
DS-2CD63C5G1-IVS(1.29mm) je 12 megapixelová fisheye kamera značky Hikvision s fixním objektivem. Kamera umožňuje pohledy multi zobrazení, rybí oko, virtuální PTZ, panorama, ... Kamera má max. rozlišení 3504 x 3504px při 30 fps, objektiv 1.29mm (180° nebo 360° v závislosti na režimu), 2 nezávislé streamy, digitální WDR snímač, podpora kodeku H.265, microSD slot na karty do kapacity 256 GB, alarm 2/2 a audio (vstup, výstup, 4x mikrofon a reproduktor). Velikou výhodou kamery je krytí IP67 a antivandal ochrana IK10.
Kamera má maximální spotřebu 12.5W a je možné ji napájet i přes 12V DC konektor, případně po ethernetovém kabelu přes 802.3af POE.
