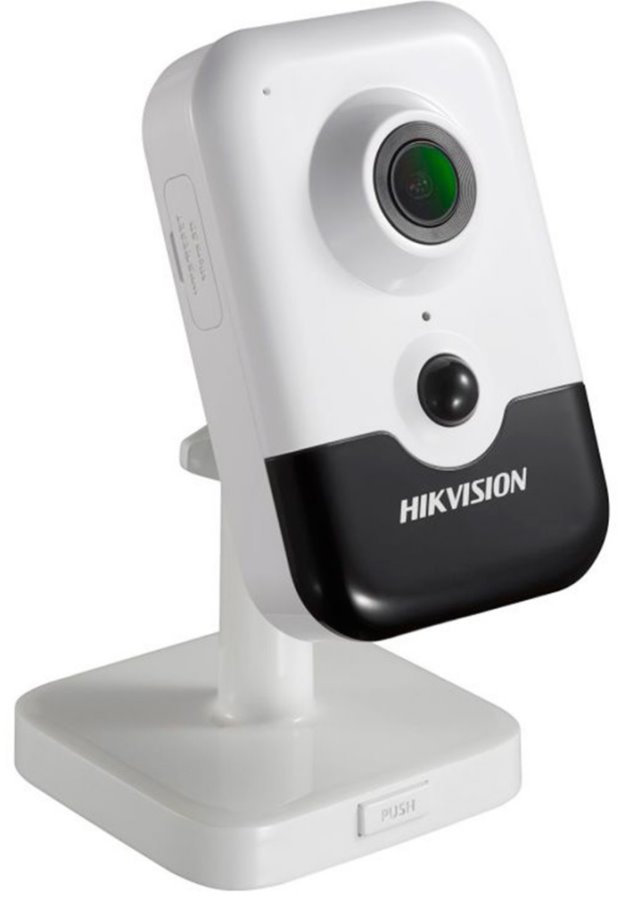

Hikvision IP cube camera DS-2CD2423G0-IW(4mm)(W), 2MP, 4mm, WiFi
Hikvision IP cube camera DS-2CD2423G0-IW(4mm)(W), 2MP, 4mm, WiFi
×
0/0
Your price excl. VAT
| Manufacturer |
Hikvision |
|
|---|---|---|
| Code | 10901637 | |
| Part No. | DS-2CD2423G0-IW(4mm)(W) | |
| Warranty | 36 months | |
M9905
1.42 EUR excl. VAT
1.72 EUR incl. VAT
In Stock
SDCS2/128GB
11.90 EUR excl. VAT
14.42 EUR incl. VAT
In Stock
SDCE/128GB
19.53 EUR excl. VAT
23.66 EUR incl. VAT
In Stock
SDCS2/64GB
7.83 EUR excl. VAT
9.50 EUR incl. VAT
In Stock
SDCE/64GB
12.89 EUR excl. VAT
15.62 EUR incl. VAT
In Stock
SDCS2/64GBSP
7.75 EUR excl. VAT
9.40 EUR incl. VAT
In Stock
SDCS2/32GB
6.45 EUR excl. VAT
7.83 EUR incl. VAT
In Stock
SDCE/32GB
10.64 EUR excl. VAT
12.90 EUR incl. VAT
In Stock
MAXPI15
11.63 EUR excl. VAT
14.16 EUR incl. VAT
In Stock
MAXPI15S
8.82 EUR excl. VAT
10.76 EUR incl. VAT
Expected 29.1.2025
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Camera
WDR:
Optical WDR (up to 120dB)
Lens type:
Fixed
Lens [mm]:
4 (fixed)
Illumination:
IR
Illumination range [m]:
10
PIR motion sensor:
Yes
Viewing Angle [°]:
86
Day/night mode:
IR cut filter
Minimum illumination [Lux]:
0,01
Image sensor ["]:
1/2.7
Wireless features
Wireless frequency:
2.4 GHz
WiFi standards:
802.11n, 802.11b/g
Transmission speed - 2.4GHz [Mb/s]:
150
Type of antenna:
Built-in
Integrated WiFi:
Yes
Resolution:
2MP
Max. resolution [pixels]:
1920 x 1080 (Full HD)
Connectors and Interfaces

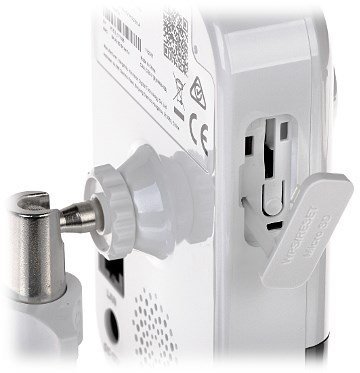

Slot for Memory Card:
microSD - up to 128GB
Audio:
Microphone, Speaker
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
802.3af
Power type:
PoE, DC connector
Max. power consumption [W]:
7
Power via connector/terminal:
12V DC
Physical characteristics
Purpose:
Indoor
Buttons:
Reset
Operating temperature [°C]:
-10 up to 40
Weight [g]:
128
Width [mm]:
65
Height [mm]:
103
Depth [mm]:
33
Color:
White
Compression standard
Bit rate:
32Kbps ~ 16Mbps
Number of streams:
3
Video compression:
H.264, H.265, MJPEG
General
Camera class:
Standard Hikvision
Software
Default IP address:
192.168.1.64
Default login and password:
admin / -
Product description
DS-2CD2423G0-IW(4m)(W) je 2 megapixelová vnitřní cube kamera značky Hikvision s fixním 4mm objektivem, pozorovacím úhlem 86° a IR přísvitem do vzdálenosti 10m a integrovanou WiFi s vestavěnou anténou pro použití do 50m. Podpora obousměrného audia - integrovaný reproduktor a mikrofon, PIR na 10m. Kamera má maximální rozlišení 1920 x 1080px při 25fps, 3 nezávislé streamy, microSD slot na 128GB kartu a podpora kodeku H.265.
Kamera má maximální spotřebu 7W při zapnutém přísvitu a je možné ji napájet přes 12V DC konektor, případně po ethernetovém kabelu přes 802.3af POE.
