Hikvision HDTVI analog bullet camera DS-2CE16H0T-ITF(3.6mm), 5MP, 3.6mm
Hikvision HDTVI analog bullet camera DS-2CE16H0T-ITF(3.6mm), 5MP, 3.6mm
×
0/0
Your price excl. VAT
| Manufacturer |
Hikvision |
|
|---|---|---|
| Code | 10901965 | |
| Part No. | DS-2CE16H0T-ITF(3.6mm) | |
| Warranty | 36 months | |
You have a choice of 3 variantscompare all
3.6mm
DS-2CE16H0T-ITF(3.6mm)
Price after login
M9905
1.42 EUR excl. VAT
1.72 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Camera
Lens type:
Fixed
Lens [mm]:
3,6 (fixed)
Illumination:
IR
Illumination range [m]:
20
Viewing Angle [°]:
80
Day/night mode:
IR cut filter
Minimum illumination [Lux]:
0,01
Resolution:
5MP
Max. resolution [pixels]:
2560 x 1944
Connectors and Interfaces
Analog output:
Yes
Power
Power type:
DC connector
Max. power consumption [W]:
4,3
Power via connector/terminal:
12V DC
Physical characteristics
Protection class:
IP67
Purpose:
Outdoor
Buttons:
Switch mode
Operating temperature [°C]:
-40 up to 60
Weight [g]:
340
Width [mm]:
58
Height [mm]:
61
Depth [mm]:
163
Software
Supported standards:
TVI, CVI, AHD, CVBS
OSD menu:
Yes
Product description

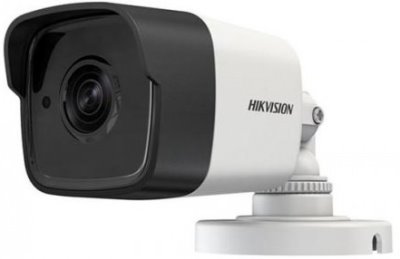

Analog bullet camera DS-2CE16H0T-ITF supports 4 different video outputs - TVI/AHD/CVI/CVBS - you can switch between them using button on the camera. It is suitable as cheap replacement for old analog cameras. You can utilize HD video output later when you purchase appropriate DVR.
5MPx sensor is equipped with 3.6mm fixed lens. Field of view is 80.1°, IR illumination up to 20m. The camera is powered by 12V DC voltage and its consumption is only max. 4.3W. It meets IP67 certification for outdoor use.
