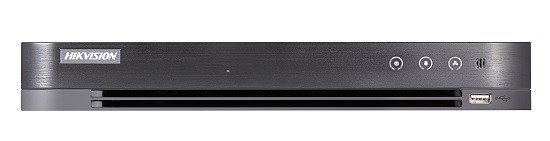

Hikvision DVR iDS-7216HQHI-K1/4S, 16 channels, 16x BNC, 8x IP, 1x HDD, Acusense
We are sorry, this product is no longer in our offer.
Hikvision DVR iDS-7216HQHI-K1/4S, 16 channels, 16x BNC, 8x IP, 1x HDD, Acusense
×
0/0
Sale
PCU5E-1YW-MS
0.61 EUR excl. VAT
0.74 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.69 EUR excl. VAT
4.46 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Max. recording resolution:
6MP
Connectors and Interfaces
Number of Sata connectors:
1
VGA connector:
Yes
HDMI interface (resolution) [pixels]:
1920 x 1080 (Full HD)
Audio:
Yes
LAN speed:
(1) 10/100/1000Mbps
USB ports 2.0:
2
HDMI interface:
Yes
Power
Max. power consumption [W]:
25
Power via connector/terminal:
12V DC
Physical characteristics
Operating temperature [°C]:
-10 up to 55
Weight [g]:
2000
Width [mm]:
315
Height [mm]:
45
Depth [mm]:
242
Hardware
Number of supported analog. cameras:
16
Number of supported HDD:
1
Supported HDD capacity [TB]:
10
Compression standard
Video compression:
H.264, H.265
General
Technology and conveniences:
AcuSense
Product description
16-ch DVR with option to connect up to 8 IP cameras. Recorder supports H265+ compression and cameras with resolution up to 4Mbps (6Mpx for IP). Max. consumption is 25W.
For video-out there is BNC connector with resolution 704x576px and HDMI/VGA output with max. resolution 1920x1080px.
