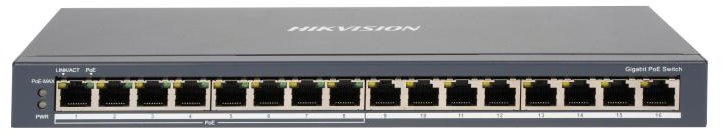

Hikvision DS-3E0516P-O PoE switch, 8x PoE, 110W

Hikvision DS-3E0516P-O PoE switch, 8x PoE, 110W
Hikvision DS-3E0516P-O PoE switch, 8x PoE, 110W
×
0/0
Hikvision DS-3E0516P-O PoE switch, 8x PoE, 110W
Hikvision DS-3E0516P-O PoE switch, 8x PoE, 110W
Hikvision DS-3E0516P-O PoE switch, 8x PoE, 110W
Hikvision DS-3E0516P-O PoE switch, 8x PoE, 110W

Your price excl. VAT
Price after login
To order within 48h
PlzeňTo order within 48h
Externí sklad CZIn Stock
Externí sklad EUNot in stock
Availability
at our branches
Manufacturer

Hikvision

Code10981064
Part No.DS-3E0516P-O
Warranty 36 months
You have a choice of 2 variantscompare all
Hikvision DS-3E0516P-O PoE switch, 8x PoE, 110W
8x PoE, 110W
DS-3E0516P-O
Price after login
To order within 48h
Hikvision DS-3E0508P-O PoE switch, 4x PoE, 60W
4x PoE, 60W
DS-3E0508P-O
Price after login
In Stock
  • Related products2
Masterlan patch cable UTP, Cat5e, 1m, yellow
PCU5E-1YW-MS

0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
Masterlan comfort patch cable UTP, Cat5e, 5m, gray
PCU5E-5-MSC

3.43 EUR excl. VAT
4.15 EUR incl. VAT
In Stock
Parameters
Download

Product description

Hikvision DS-3E0516P-O je speciálně navržený desktopový nemanagovatelný PoE switch pro monitoring sítě, switching a napájení aktivních prvků. Tento switch obsahuje 16x 10/100/1000 Mbps LAN portů a podporuje 802.3af/at (max.30W/port) PoE na portech 1 až 8 s celkovým budgetem 110W.

Klíčové vlastnosti

  • (16) 10/100/1000 Mbps LAN
  • Celkový PoE Budget 110W
  • (8) 802.3af/at (max. 30W / port)
  • Rozměry 286 x 103 x 28 mm
  • Desktop provedení, bez ventilátoru

Obsah balení

  • Zařízení
  • Napájecí adaptér 54V / 2,22A
  • Napájecí kabel

Download

Datasheet

Bussines information

Tomáš Petržílka, +420 702 564 566 , tomas.petrzilka@discomp.cz

Technical parameters

Connectors and Interfaces

LAN speed: (16) 10/100/1000Mbps

Power

Power type: DC connector
PoE type: PoE-Out (only)
PoE-Out standards: 802.3af, 802.3at
PoE Out ports: 8
PoE budget [W]: 110
Max. power consumption [W]: 5
Power via connector/terminal: 54V / 2,22A

Physical characteristics

Design: Desktop
Fans: No
Chassis design: Metal
Operating temperature [°C]: 0 up to 40
Width [mm]: 286
Height [mm]: 28
Depth [mm]: 103

General

Switchning capacity [Gbps]: 32
MAC address table: 8000
Packet forwarding rate [Mpps]: 23,8

Software

Default IP address: Dynamic from DHCP
