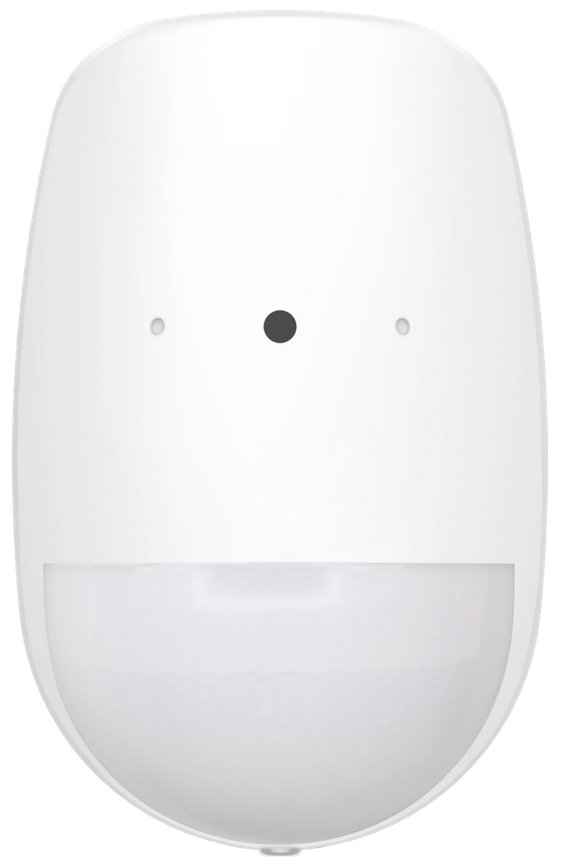

Hikvision AX PRO Wireless PIR Glass break detector, 12m

Product description

DS-PDPG12P-EG2-WE is a wireless PIR detector with glassbreak detection from the AX PRO series from Hikvision. The range of the PIR sensor is at a distance of to 12 m and an angle of 85.9° and the glassbreak detection works at 8 m with an angle of 120°. The detector communicates wirelessly in two-way communication with the control panel at a frequency of 868 MHz with AES-128 encryption, up to a distance of 1 600 m in open space. The detector is powered by 2× CR123A batteries with the lifetime up to 4 years.

Important features

• Compatible with AX PRO only
• 868 MHz bidirectional communication, Tri-X communication protocol
• PIR detection: 12 m/85.9°
• Glassbreak detection: 8 m/120°
• Sensitivity to glass breakage: 2 m, 4 m, 6 m, 8 m
• Installation height: 1.8 m to 2.4 m
• 52 detection zones
• Digital temperature compensation
• Light filter: 6 500 lux
• Animal immunity: 30 kg
• PIR Sensitivity: Automatic / High / Animal Alarm Filtering
• Tamper-proof front and back panel

AX PRO alarm system

AX PRO is an innovative wireless security system from the renowned manufacturer Hikvision. It is a variable alarm system that includes a large number of detectors and sensors and can be used in virtually any situation. It has an unprecedented range of wireless connection (up to 2 km) and can cover really large and rugged spaces. The devices are compatible with the new Hik-ProConnect application and can communicate with other Hikvision devices. The entire system can be managed remotely via the cloud, giving installers the ability to provide customer support without the need to travel to the site.
