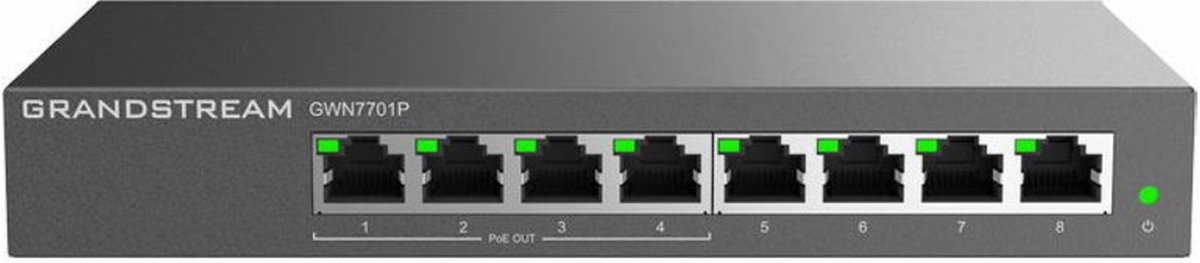

Grandstream GWN7701P Unmanaged Network Switch 8 ports / 4 PoE out
Grandstream GWN7701P Unmanaged Network Switch 8 ports / 4 PoE out
×
0/0
Your price excl. VAT
55.61 EUR
| Recycling fee | 0.06 EUR |
|---|---|
| Your price with RF | 55.67 EUR |
| Your price incl. VAT (21%) | 67.36 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Grandstream |
|
|---|---|---|
| Code | 20246831 | |
| Part No. | GWN7701P | |
| Warranty | 36 months | |
GWN7711P
81.97 EUR excl. VAT
99.26 EUR incl. VAT
To order within 48h
GWN7702P
151.71 EUR excl. VAT
183.64 EUR incl. VAT
To order within 48h
GWN7701PA
102.75 EUR excl. VAT
124.40 EUR incl. VAT
To order within 48h
GWN7701
22.21 EUR excl. VAT
26.95 EUR incl. VAT
To order within 48h
GWN7711
28.42 EUR excl. VAT
34.46 EUR incl. VAT
To order within 48h
GWN7701M
103.07 EUR excl. VAT
124.79 EUR incl. VAT
To order within 48h
GWN7700P
44.59 EUR excl. VAT
54.03 EUR incl. VAT
To order within 48h
GWN7700M
69.75 EUR excl. VAT
84.47 EUR incl. VAT
To order within 48h
GWN7700
14.17 EUR excl. VAT
17.22 EUR incl. VAT
To order within 48h
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
Technical parameters
Connectors and Interfaces
LAN speed:
(8) 10/100/1000Mbps
Power
Power type:
DC connector
PoE type:
PoE-Out (only)
PoE-Out standards:
802.3af, 802.3at
PoE Out ports:
4
PoE budget [W]:
60
Max. power consumption [W]:
3
Power via connector/terminal:
48-53.5V DC/1.22A
Physical characteristics
Design:
On the wall, Desktop
Fans:
No
Chassis design:
Metal
Operating temperature [°C]:
0 up to 40
Width [mm]:
190
Height [mm]:
28
Depth [mm]:
100
General
Switchning capacity [Gbps]:
16
MAC address table:
8000
Jumbo frame [Bytes]:
9000
Software
Features:
QoS
Product description

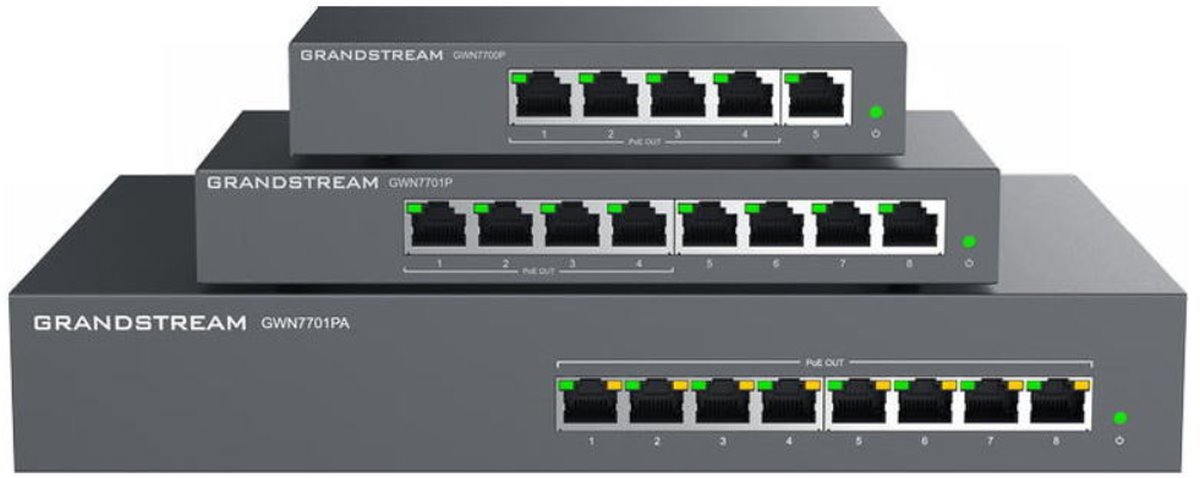

The GWN7700 series are unmanaged network switches that provide a quick and cost-effective way to add high-speed Gigabit connectivity to home offices and small/medium businesses. It requires no configuration or installation, offers a desktop and wall-mountable design, and provides auto MDI/MDIX to eliminate the need for crossover cables. Each port supports auto-negotiation to allow the GWN7700 series to recognize the link speed of any 10/100/1000Mbps network device and intelligently adjust for compatibility and optimal performance. The PoE (Power-over-Ethernet) models provide ports with IEEE 802.3af/at compliant, smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The plug-and-play GWN7700 series are the ideal unmanaged network switches for home offices and small-to medium businesses.
Key features
Download
Datasheet Quick Installation GuideBussines information
