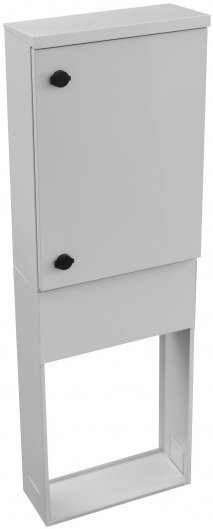

FTTH Fiber cabinet, SZS-43/145/20 FFTH 72J, 72x SC simplex

FTTH Fiber cabinet, SZS-43/145/20 FFTH 72J, 72x SC simplex
FTTH Fiber cabinet, SZS-43/145/20 FFTH 72J, 72x SC simplex
×
0/0
FTTH Fiber cabinet, SZS-43/145/20 FFTH 72J, 72x SC simplex
FTTH Fiber cabinet, SZS-43/145/20 FFTH 72J, 72x SC simplex
FTTH Fiber cabinet, SZS-43/145/20 FFTH 72J, 72x SC simplex
FTTH Fiber cabinet, SZS-43/145/20 FFTH 72J, 72x SC simplex
FTTH Fiber cabinet, SZS-43/145/20 FFTH 72J, 72x SC simplex
FTTH Fiber cabinet, SZS-43/145/20 FFTH 72J, 72x SC simplex
FTTH Fiber cabinet, SZS-43/145/20 FFTH 72J, 72x SC simplex
FTTH Fiber cabinet, SZS-43/145/20 FFTH 72J, 72x SC simplex
FTTH Fiber cabinet, SZS-43/145/20 FFTH 72J, 72x SC simplex
FTTH Fiber cabinet, SZS-43/145/20 FFTH 72J, 72x SC simplex


Oversized transport - The shipping price will be calculated after receiving the order. Shipping price may vary depending on your delivery adress.

Your price excl. VAT
238.53 EUR
Your price incl. VAT (21%) 288.62 EUR
blank
Not in stock
PlzeňNot in stock
Availability
at our branches
Manufacturer

Masterlan

Code10210683
Part No.SZS-43/145/20 FFTH 72J
Warranty 36 months
Parameters

Product description

The outdoor FTTH data cabinet with installation in the ground is used to connect optical cables in front of the house with very easy access. The data cabinet allows the connection of up to 72 optical fibers and the termination of several optical cables. The data cabinet has a gray color of RAL 7035 and a degree of protection is IP 65. The dimensions of the column are 145 × 43 × 20 cm and its smaller lower part is buried in the ground (60 cm). The upper part with the optics is lockable by 2 locks, which are part of the package.

Key Features

  • Capacity for 72 participants (up to 72 SC connectors), up to 5 cartridges
  • 60cm recess
  • Optical panel mounted on the ground of the data cabinet by using hinges and magnets
  • Organization for hanging cables and microtubes coming from the ground
  • Part above the ground is made of sheet metal with "Magnelis" coating, 1 mm thick. Underground part is 2 mm thick
  • Lockable with 2 hermetic locks
  • Gray RAL 7035 colour
  • Degree of protection IP 65, anti-vandal protection IK10

Technical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.

Bussines information

Adéla Gygalová, +420 377 221 177 , adela.gygalova@discomp.cz

Technical parameters

Physical characteristics

Protection class: IP65
Design: Outdoor
Holes for connectors: (72) SC Simplex
Material: Sheet metal
Antivandal (Impact protection): IK10
Width [mm]: 430
Height [mm]: 1450
Depth [mm]: 200
Color: Grey
