Ezviz TP7 Home Intercom set
Your price excl. VAT
368.23 EUR
| Recycling fee | 0.16 EUR |
|---|---|
| Your price with RF | 368.39 EUR |
| Your price incl. VAT (21%) | 445.75 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Ezviz |
|
|---|---|---|
| Code | 16100113 | |
| Part No. | CS-TP7-R100-1W2TFC | |
| Warranty | 24 months | |
SDCS2/256GB
22.12 EUR excl. VAT
26.79 EUR incl. VAT
To order within 48h
SDCE/256GB
25.27 EUR excl. VAT
30.60 EUR incl. VAT
In Stock
M9905
1.43 EUR excl. VAT
1.73 EUR incl. VAT
In Stock
SDCE/128GB
19.25 EUR excl. VAT
23.32 EUR incl. VAT
In Stock
SDCS2/128GB
15.19 EUR excl. VAT
18.40 EUR incl. VAT
In Stock
SDCS2/64GBSP
8.45 EUR excl. VAT
10.25 EUR incl. VAT
To order within 48h
SDCS2/64GB
8.21 EUR excl. VAT
9.96 EUR incl. VAT
In Stock
SDCE/64GB
13.79 EUR excl. VAT
16.71 EUR incl. VAT
To order within 7d
SDCS2/32GB
5.70 EUR excl. VAT
6.92 EUR incl. VAT
In Stock
SDCE/32GB
11.12 EUR excl. VAT
13.48 EUR incl. VAT
In Stock
Parameters
Download
Video
GPSR
Technical parameters
Camera
Lens type:
Fixed
Lens [mm]:
2 (fixed)
Illumination:
IR
Illumination range [m]:
6
Viewing Angle [°]:
162
Image sensor ["]:
1/2.7
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11n, 802.11ac, 802.11b/g
Integrated WiFi:
Yes
Resolution:
3MP
Max. resolution [pixels]:
2048 x 1296
Connectors and Interfaces
Slot for Memory Card:
microSD - up to 512GB
Audio:
Microphone, Speaker
Alarm:
Yes
Power
Power type:
DC connector
Max. power consumption [W]:
24
Power via connector/terminal:
24V DC
Physical characteristics
Protection class:
IP65
Purpose:
Outdoor
Operating temperature [°C]:
-10 up to 40

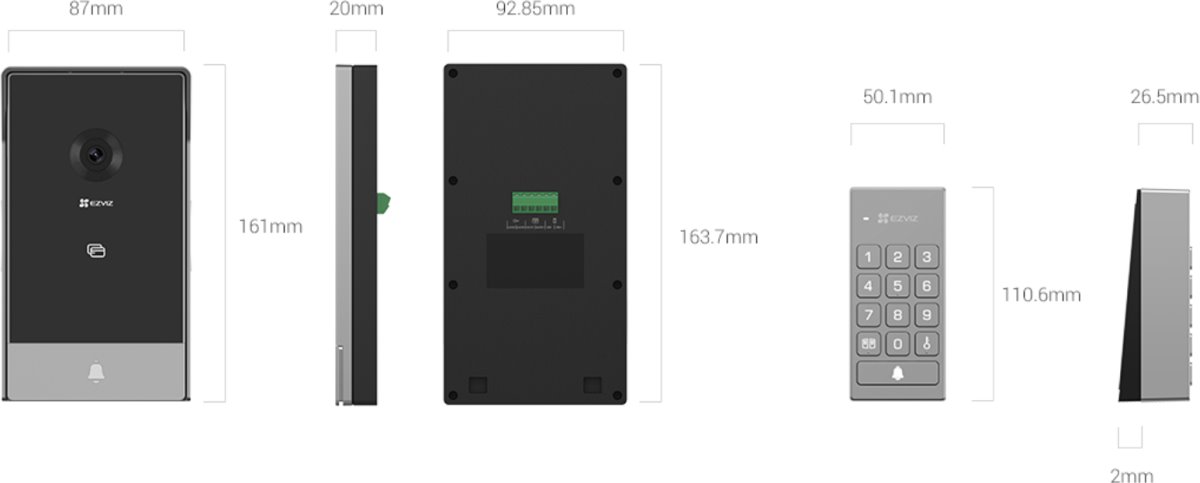

Width [mm]:
87
Height [mm]:
161
Depth [mm]:
20
Compression standard
Video compression:
H.264, H.265
Video
Product description

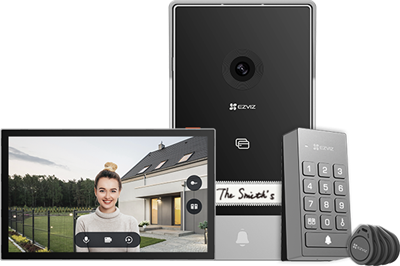

EZVIZ TP7 is a smart set for securing your access to your property. In the set you will find a station with a camera and a reader for RFID chips, as well as a wireless Bluetooth numeric keypad, a 7-inch touchscreen monitor for setting and monitoring the camera on the doorbell and 5 RFID chips. Door and gate locks can be connected through the station at the same time (includes 2 wire pins up to 10 meters). An SD card up to 512 GB can be inserted into the monitor to record video from the camera. The doorbell has a built-in microphone and speaker as well as the monitor. The application and monitor allows you to generate temporary access codes for example for visitors.
Lock opening options:
Package contents:
Download
Datasheet User ManualGPSR
