Elboxrf directional panel antenna 19dBi - 5GHz, (RSLL)

Product description

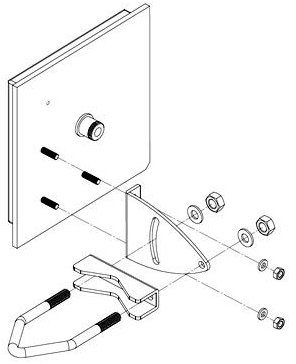

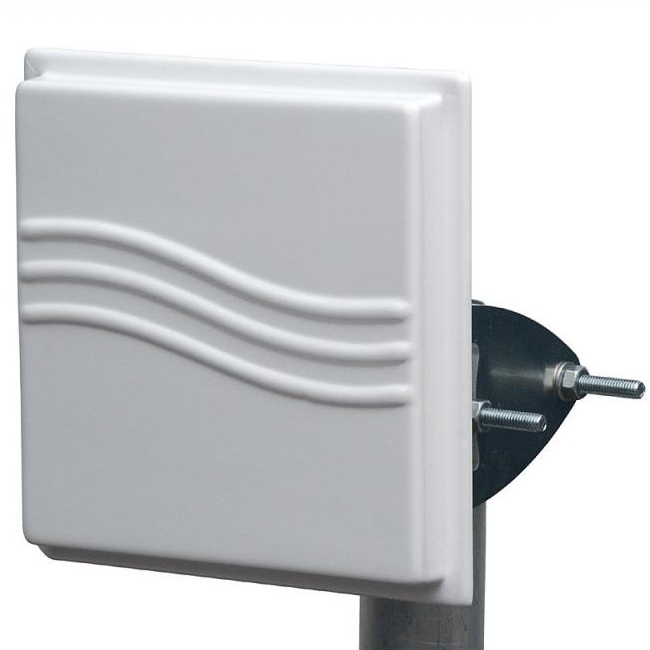

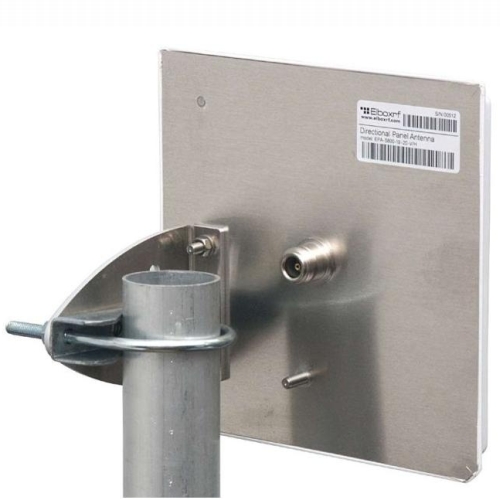

Directional Panel Antenna renowned manufacturer ELBOXRF designed for systems in the 5GHz band. Compact design, weather-resistant design, including the positioning bracket for easy and reliable mounting on a mast. Each piece marked with the serial number and production to guarantee measurement of the beam parameters and characteristics. Design RSLL (Reduction of Side-Lobe Level)-suppression of side lobes-to achieve significant directional characteristics.
Specifications

style="background-color: rgb(184,184,184); width: 183px;">Frequency style="background-color: rgb(184,184,184); width: 183px;">Polarization style="background-color: rgb(184,184,184); width: 183px;">Profit style="background-color: rgb(184,184,184); width: 183px;">Beam Angle (H/V) style="background-color: rgb(184,184,184); width: 183px;">Connector style="background-color: rgb(184,184,184); width: 183px;">VF cable length style="background-color: rgb(184,184,184); width: 183px;">VSWR style="background-color: rgb(184,184,184); width: 183px;">Impedance style="background-color: rgb(184,184,184); width: 183px;">Front to back ratio style="background-color: rgb(184,184,184); width: 183px;">Dimensions style="background-color: rgb(184,184,184); width: 183px;">Weight style="background-color: rgb(184,184,184); width: 183px;">mounting kit for mast style="background-color: rgb(184,184,184); width: 183px;">Contents

Parameter	Value
5.15 to 6.1 Ghz
vertical, horizontal
19 dBi
20 °/20 °
N female
-
<1.8
50 ?
>30 db
160 x 160 x 30 mm
0.3 kg
? 23-51 mm
antenna mount
