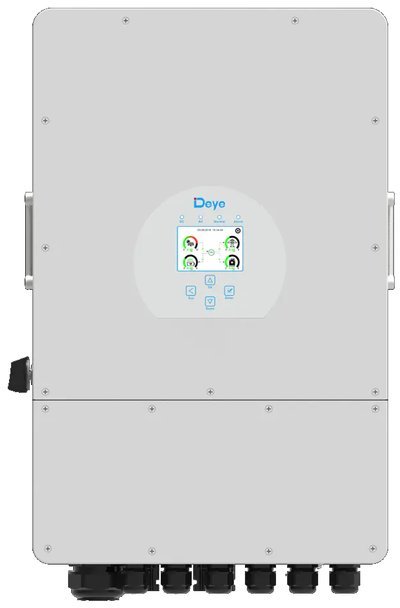

DEYE SUN-10K-SG04LP3 Hybrid inverter 10kW, 3 phases
DEYE SUN-10K-SG04LP3 Hybrid inverter 10kW, 3 phases
×
0/0
Oversized transport - The shipping price will be calculated after receiving the order. Shipping price may vary depending on your delivery adress.
Your price excl. VAT
1 751.59 EUR
| Recycling fee | 2.27 EUR |
|---|---|
| Your price with RF | 1 753.86 EUR |
| Your price incl. VAT (21%) | 2 122.17 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
DEYE |
|
|---|---|---|
| Code | 19705216 | |
| Part No. | SUN-10K-SG04LP3-EU | |
| Warranty | 24 months | |
Parameters
Download
GPSR
Technical parameters

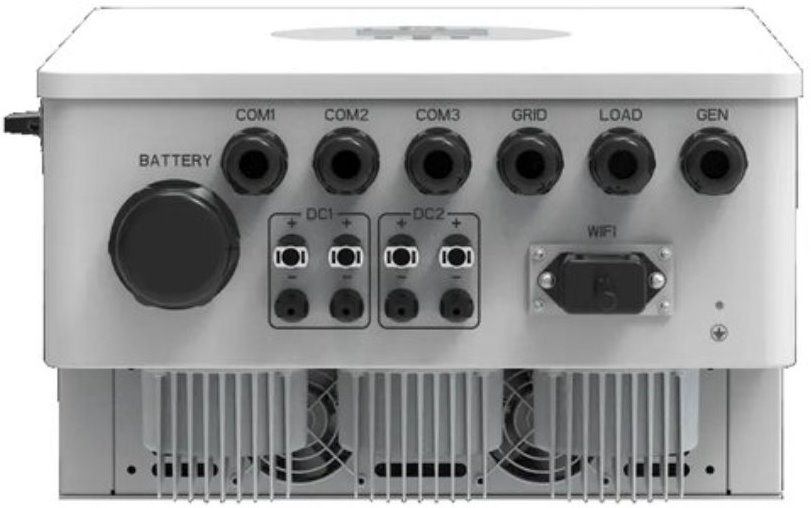

Connectors and Interfaces
Communication Interface:
RS-485, CAN
Other features:
LCD display
Power
Max. output power [kW]:
10
Efficiency [%]:
97,6
Operating phase:
3
Strings per MPPT:
3
MPPT operating range [V]:
200 up to 650
MPP Trackers:
2
Max. charging and discharging current [A]:
210
Physical characteristics
Protection class:
IP65
Design:
On the wall
Operating temperature [°C]:
-45 up to 60
Weight [kg]:
33,6
Width [mm]:
422
Height [mm]:
702
Depth [mm]:
281
Product description
A new multi-functional hybrid asymmetric inverter that combines the functions of inverter, solar charger and battery charger, offering uninterrupted power support with adjustable size. Its comprehensive LCD display provides user-configurable and easily accessible button controls such as battery charging, AC/solar charging and allowable input voltage depending on different applications.
An important feature of this converter is the long-term overload capability of any phase and thus the degree of asymmetry up to 150% of the nominal power of the phase. E.g. for the 10k variant, where the asymmetry in other converters is typically 0-3.3kW, the Deye provides an asymmetry of 0-5kW if the other phases are not heavily loaded.
The inverter provides additional information, statistics, graphs and the possibility of remote management via Wifi and an Internet cloud interface. It is optimal in combination with Pylontech and Pytes low-voltage batteries, with which it communicates via the CANbus interface.
Download
Datasheet [CZ] Datasheet [EN] DoC User manual [CZ] User manual [EN]GPSR
