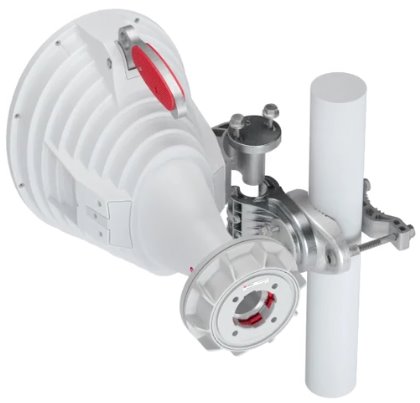

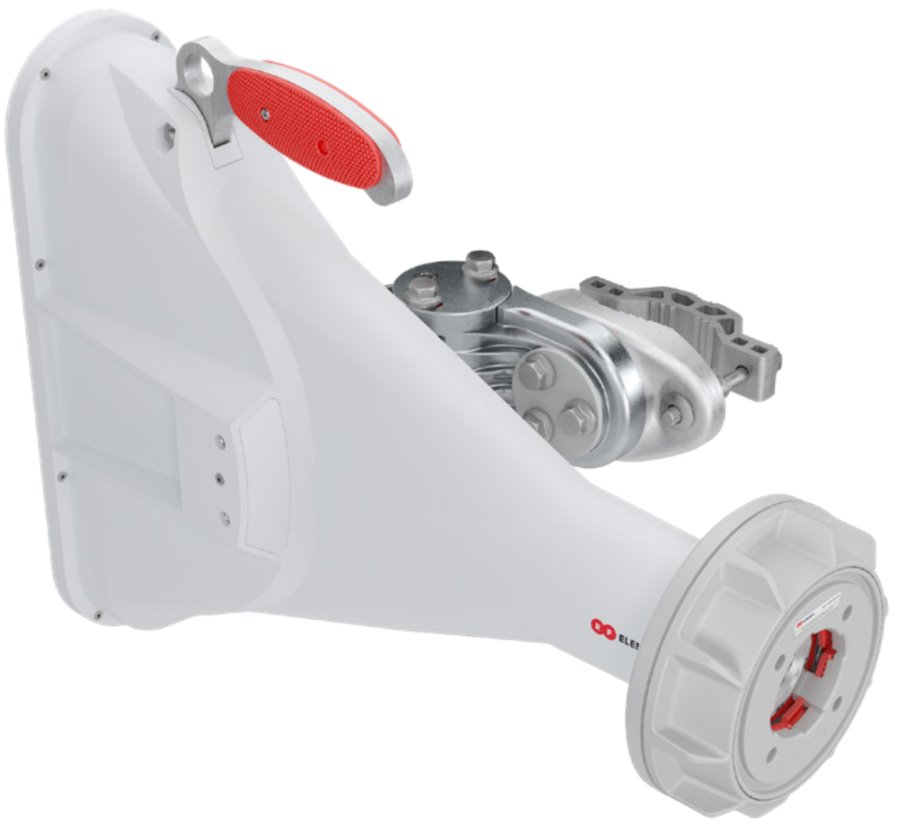

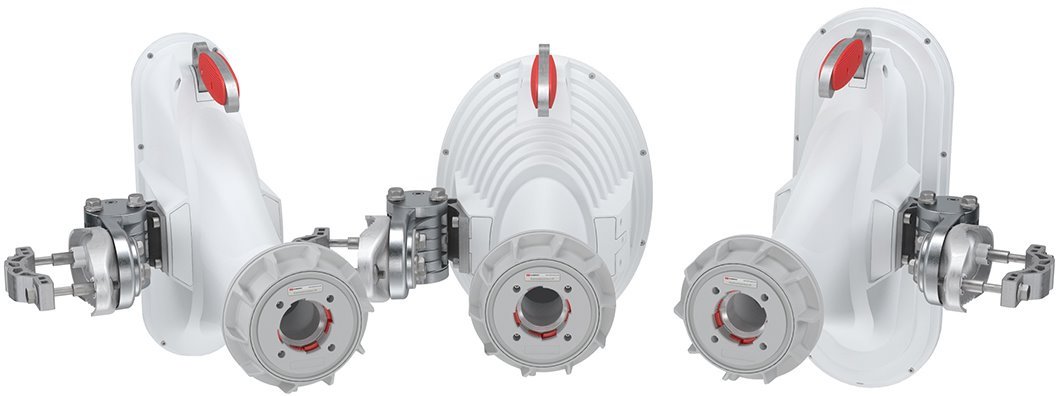

RF elements Asymmetrical Horn Antenna with TwistPort, 5GHz, 17dBi, 60°
We are sorry, this product is no longer in our offer.
TPA-RBP
25.66 EUR excl. VAT
31.12 EUR incl. VAT
In Stock
TP-ADAP-e2K
45.63 EUR excl. VAT
55.28 EUR incl. VAT
In Stock
TP-ADAP-C5c
14.27 EUR excl. VAT
17.34 EUR incl. VAT
In Stock
TP-ADAP-IS
19.97 EUR excl. VAT
24.24 EUR incl. VAT
In Stock
TPA-PAF
55.63 EUR excl. VAT
67.38 EUR incl. VAT
In Stock
TPA-RBC
37.09 EUR excl. VAT
44.95 EUR incl. VAT
In Stock
TPA-R5AC
28.51 EUR excl. VAT
34.57 EUR incl. VAT
In Stock
TPA-RM5
11.98 EUR excl. VAT
14.57 EUR incl. VAT
In Stock
TPA-A5x
14.27 EUR excl. VAT
17.34 EUR incl. VAT
In Stock
B-TPA-RM5
9.57 EUR excl. VAT
11.65 EUR incl. VAT
Not in stock
TPA-AMU-V2
14.27 EUR excl. VAT
17.34 EUR incl. VAT
In Stock
Parameters
Download
Video
Technical parameters
Wireless features
MIMO, SISO:
2 x 2
Polarization:
VH
F/B ratio [dB]:
27
Wireless frequency:
5 GHz
Elevation beam width (-6dB) [°]:
25
Azimuth beam width (-6dB) [°]:
60
Antenna type:
Sector
Antenna gain [dBi]:
17
Connectors and Interfaces
RF connectors:
TwistPort
Physical characteristics
Designed for mast diameter [mm]:
22 up to 80
Wind load [km/h]:
160
Purpose:
Outdoor
Material:
Aluminum, UV stabilized ABS plastic, Stainless steel, Polycarbonate
Operating temperature [°C]:
-35 up to 55
Weight [kg]:
6,5
Width [mm]:
282
Height [mm]:
342
Depth [mm]:
448
Video
Product description

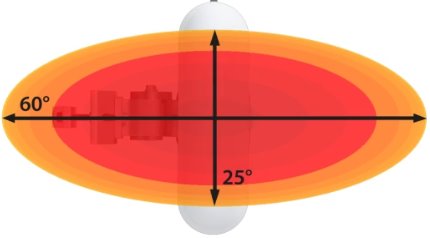

Asymmetrical Horn TP Antennas have unique beam shape. The beam cross-section in bore sight is elliptical: wide in azimuth and narrow in elevation plane. This is useful for deployments where where asymmetrical beam shape delivers better coverage.

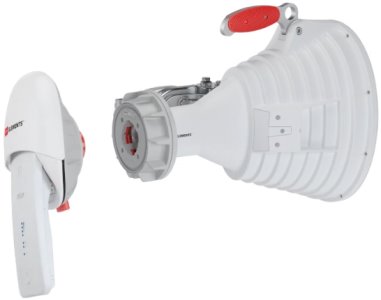

TwistPort Connector
Asymmetrical Horn TP Antennas feature our industry-changing TwistPortTM connector, a patent-pending quick-locking waveguide port. TwistPortTM is virtually lossless: there are no coaxial connectors or cables that attenuate signal. Connecting radios is ingeniously simple - “twist and lock” - with a single hand!
No Side Lobes
Asymmetrical Horn TP Antennas have naturally depressed side lobes: they focus energy into single main beam. Absence of side lobes enables excellent noise immunity of Asymmetrical Horn TP Antennas.
Perfect Coverage Pattern
Mainstream patch array sector antennas have radiation pattern extremely wide in azimuth and extremely flat in elevation plane. If an AP is deployed on a tall tower, customers near the tower suffer from low AP signal level. Asymmetrical Horn TP Antennas provide valuable extra degrees in elevation beam width, shrinking the null zone while preserving increased gain for long range performance.
Breakthrough Scalability: Expanded
RF elements® Horn TP Antennas provide extraordinary scalability options. Asymmetrical Horn TP Antennas are new addition to the tool box. Unique beam performance, precise radiation patterns and increased gain push system scalability even further.
Cross-Platform Compatibility
Wide range of TwistPortTM Adaptors enables connection of the most popular connectorized radios of third party vendors, such as UBNTTM, MimosaTM, MikroTikTM or Cambium NetworksTM, directly to any TwistPortTM-enabled antenna.

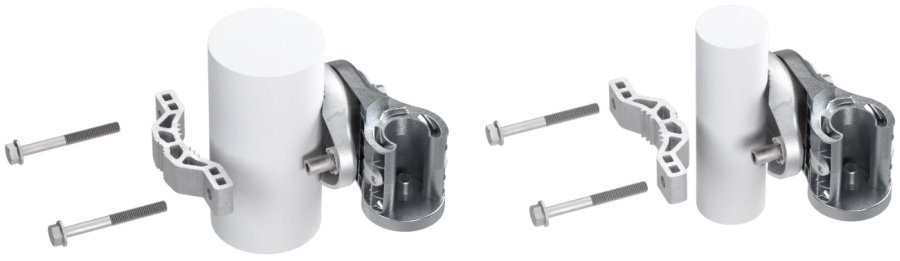

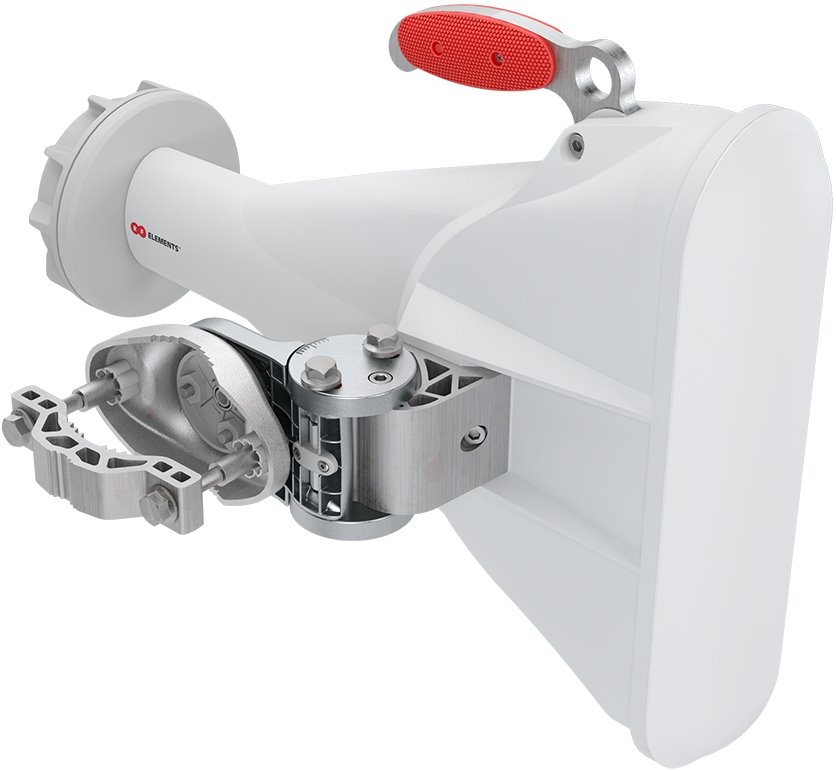

Innovative Bracket
Asymmetrical Horn TP Antennas feature an innovative mounting system. The mount is separated from the antenna, making the installation and adjustment quick and easy.
