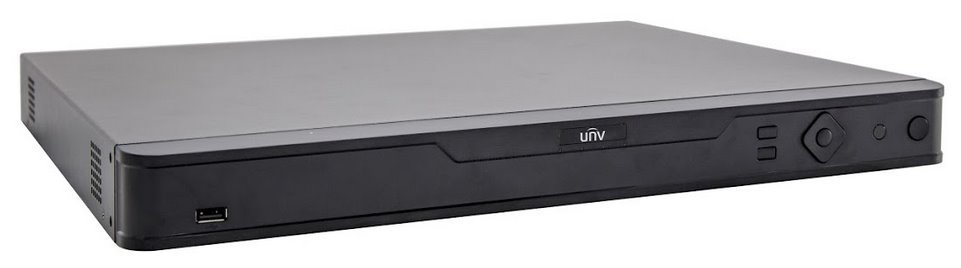

UNV IP recorder NVR304-32E-B, 32 channels, 4x HDD
We are sorry, this product is no longer in our offer.
UNV IP recorder NVR304-32E-B, 32 channels, 4x HDD
×
0/0
Sale
| Manufacturer |
Uniview |
|
|---|---|---|
| Code | 10902548 | |
| Part No. | NVR304-32E-B | |
You have a choice of 2 variantscompare all
NVR304-32E-B
Price after login
PCU5E-1YW-MS
0.61 EUR excl. VAT
0.74 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.69 EUR excl. VAT
4.46 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Max. recording resolution:
12MP
Connectors and Interfaces
USB ports 3.0:
1
Number of Sata connectors:
4
VGA connector:
Yes
HDMI interface (resolution) [pixels]:
3840 x 2160
Audio:
Yes
Alarm:
Yes
LAN speed:
(2) 10/100/1000Mbps
USB ports 2.0:
2
HDMI interface:
Yes
Power
Max. power consumption [W]:
12
Power via connector/terminal:
12V DC
Physical characteristics
Design:
Rackmount
"U" positions:
1
Operating temperature [°C]:
-10 up to 55
Weight [g]:
3140
Width [mm]:
440
Height [mm]:
44
Depth [mm]:
344
Hardware
Number of supported IP cameras:
32
Number of supported HDD:
4
Supported HDD capacity [TB]:
8
Incoming bandwidth [Mb/s]:
320
Outgoing bandwidth [Mb/s]:
320
Compression standard
Video compression:
H.264, H.265
General
Camera class:
Prime
Technology and conveniences:
Face detection, Fisheye dewarping, People counting
Software
Default IP address:
192.168.1.30
Default login and password:
admin / 123456
Product description
Medium NVR device for 32 IP cameras and 4 HDDs up to 8 TB. Recorder is eguipped with two LAN ports 10 / 100 / 1000 Mbs for network connection.
Max consumption of the device is less than 12 W (without connected HDDs).
The device is powered by 12V DC adapter whic is included.
Maximum input traffic is 320 Mbps, output traffic is 320 Mbps. It supports Ultra 265 / H.265 / H.264 codecs and also allows you to connect third-party cameras that support standard ONVIF.
