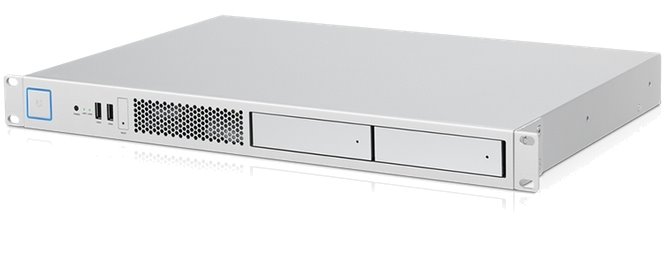

Ubiquiti UAS-XG - UniFi Application Server
We are sorry, this product is no longer in our offer.
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 5.3.2025
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
USB ports 3.0:
2
Number of HDD slots:
2
VGA connector:
Yes
LAN speed:
(2) 1G/10Gbps + (1) 10/100/1000Mbps IPMI management
Gigabit LAN:
Yes
Serial port:
RS-232
USB ports 2.0:
2
USB:
Yes
Power
Power type:
Mains power (230V)
Max. power consumption [W]:
150
Power via connector/terminal:
230V AC
Physical characteristics
Design:
Rackmount
Purpose:
Indoor
Fans:
Yes
Buttons:
Reset
Operating temperature [°C]:
0 up to 40
Width [mm]:
442
Height [mm]:
44
Depth [mm]:
306
Hardware
CPU:
Xeon-D 1521 4-core, 8 thread
CPU frequency [MHz]:
2400
Internal storage [MB]:
120GB (m.2 SATA)
RAM [MB]:
16384
Software
Pre-installed controller:
UniFi Network, UniFi Protect
Default IP address:
Dynamic from DHCP
Default login and password:
ubnt / ubnt
Product description

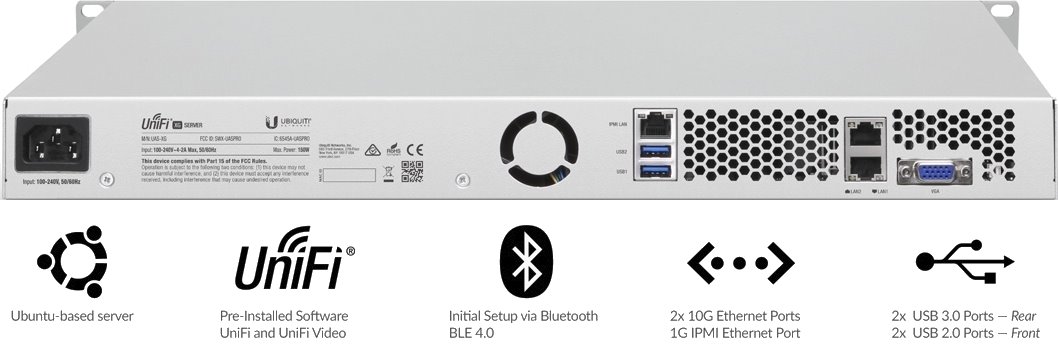

Featuring dual 10G Ethernet for high throughput and a powerful Intel Xeon-D processor, the UniFi Application Server efficiently scales to serve large UniFi and UniFi Video installations.
Versatile Connectivity

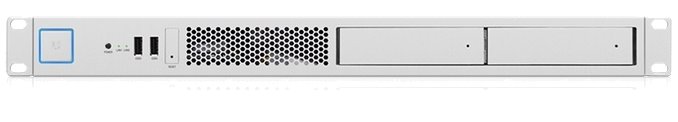

The compact 1U form factor and pre-installed UniFi and UniFi Video software applications enable rapid deployment and plug-and-play integration.

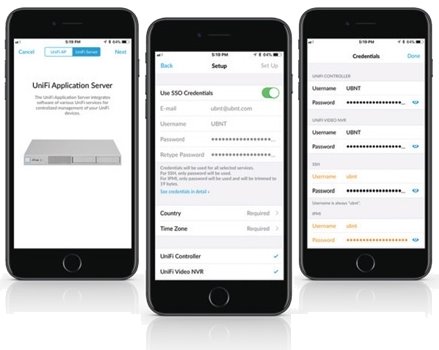

Initial Setup via Bluetooth
Use the UniFi Mobile app to configure the UniFi Application Server. The username and password you configure in the UniFi Mobile app will be used for the UniFi and UniFi Video software.

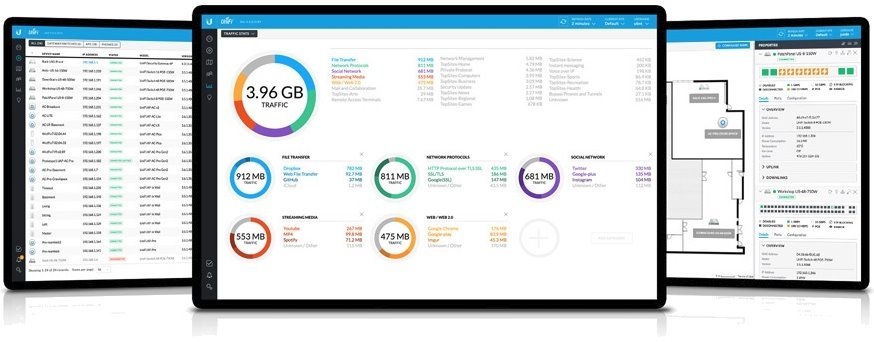

Advanced features in UniFi Controller
UniFi is quickly expanding to a full Software Defined Networking (SDN) solution with seamless integration of high-performance switching, gateways, and more.
Package contains
Download
Datasheet Quick Guide SoftwareGPSR
