MaxLink 2.4 GHz 7dBi MIMO OMNI, 2x SMA female
We are sorry, this product is no longer in our offer.
MaxLink 2.4 GHz 7dBi MIMO OMNI, 2x SMA female
×
0/0
Sale
Parameters
Download
GPSR
Technical parameters
Wireless features
MIMO, SISO:
2 x 2
Polarization:
VH
VSWR:
< 1,5
Wireless frequency:
2.4 GHz
Elevation beam width (-6dB) [°]:
24
Azimuth beam width (-6dB) [°]:
360
Antenna type:
Omnidirectional
Antenna gain [dBi]:
7
Connectors and Interfaces
RF connectors:
(2) SMA female
Physical characteristics
Designed for mast diameter [mm]:
28 up to 50
Wind load [km/h]:
170
Purpose:
Outdoor
Material:
UV stabilized plastic
Weight [kg]:
0,2
Width [mm]:
33
Height [mm]:
405
Depth [mm]:
33
Product description

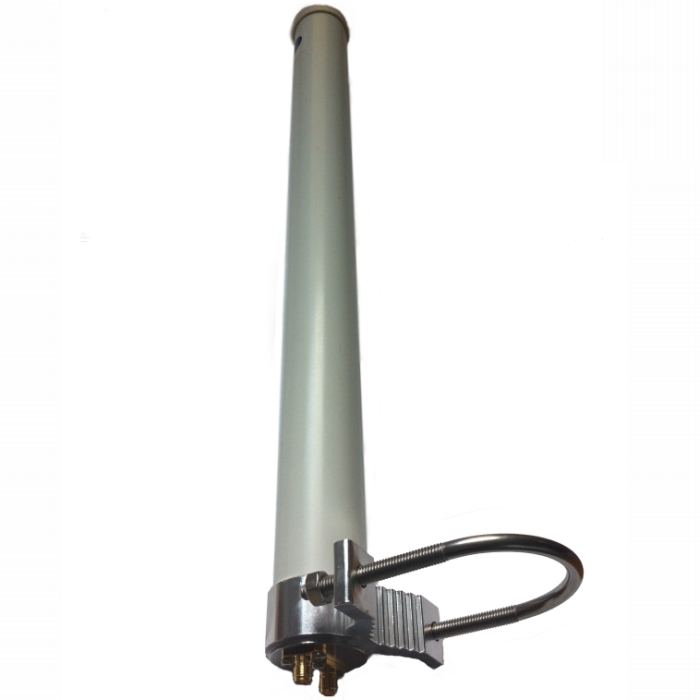

Omnidirectional dual/MIMO outdoor antenna 2×2 with the gain of 7 dBi. Very light antenna for acces points working in 2.4GHz range with the use of the MIMO technology. The antenna has 2 SMA Female connectors. The mounting kit is included in the package.
